Запчасти Case IH 5000 (2-06) - AIR CLEANER SYSTEM, C-232 AND C-258 GAS ENGINE (02) - ENGINE

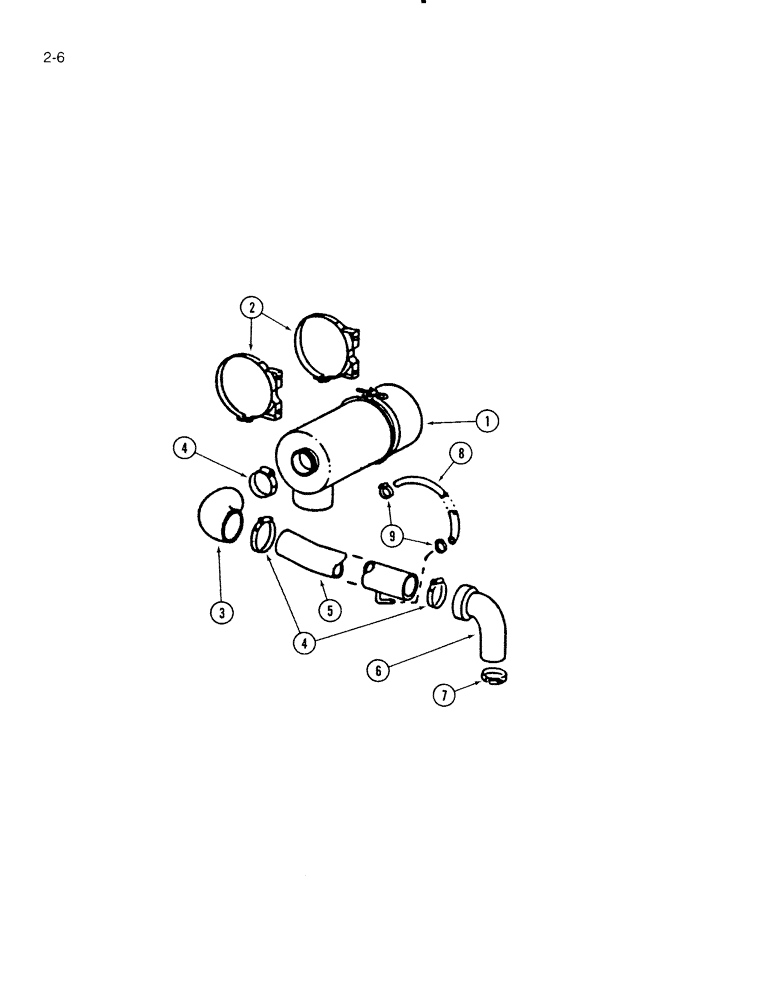

Схема запчастей Case IH 5000 - (2-06) - AIR CLEANER SYSTEM, C-232 AND C-258 GAS ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CLEANER ASSEMBLY - air (See Page 2-9)

1шт.

2

103760H1

CLAMP

- air cleaner

2шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

- flat, 7/16 x 1 x 5/64 inch

4шт.

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

- flat, 13/32 x 1 x 7/64 inch

2шт.

3

827876C1

INTAKE AIR HOSE,2.50" ID x 5.00", SAE 20R4 CLASS SC OR SAE 20R4 CLASS R

HOSE - air cleaner

1шт.

4

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

CLAMP - hose

3шт.

5

827860C1

TUBE

ASSEMBLY - air cleaner

1шт.

6

827872C1

INTAKE AIR HOSE,2.25" ID, 2.50" ID x 4.50", SAE 20R4 CLASS SC OR SAE 20R4 CLASS R

HOSE - air cleaner

1шт.

7

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - hose

1шт.

8

827856C1

HOSE

- valve cover pan vent

1шт.

9

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, #10, 0.56/1.06 Type F Worm

2шт.

Выбрано товаров: 14
