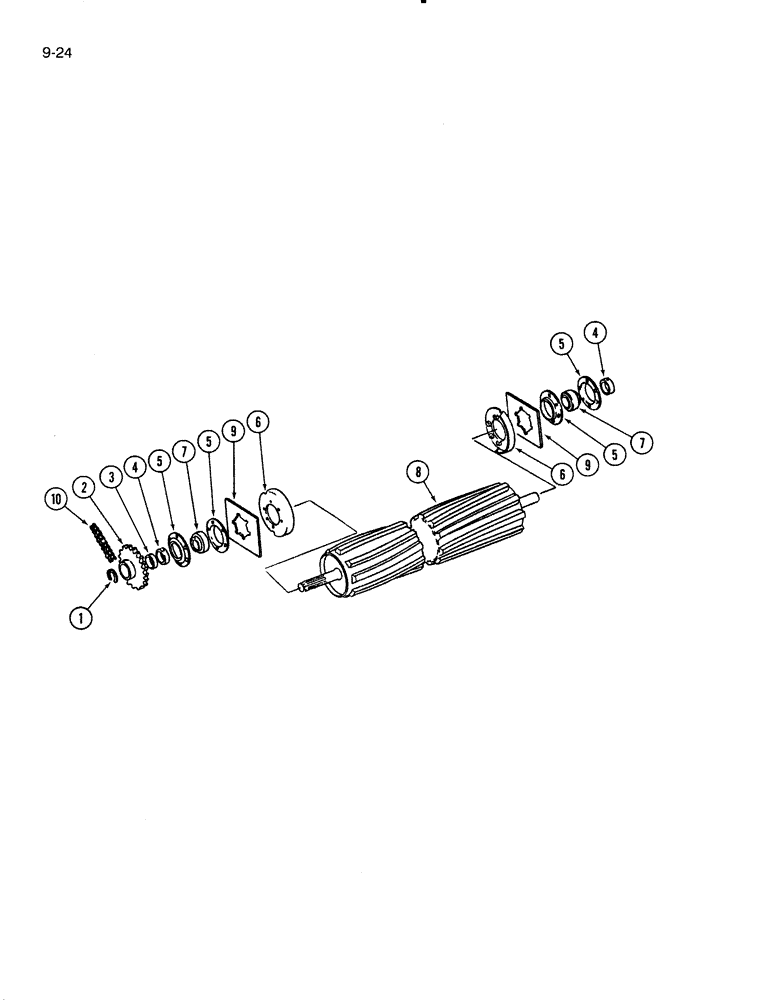

Запчасти Case IH 5000 (9-24) - CONDITIONER LOWER STEEL ROLL, CHASSIS MOUNTED (09) - CHASSIS/ATTACHMENTS

1

21193R1

SNAP RING,#137. Ext

Ring, Snap, #137, Ext

1шт.

2

828550C1

SPROCKET ASSY.

SPROCKET ASSEMBLY - lower roll drive, 26 tooth

1шт.

608085R1

WASHER

- flat, 1-13/32 x 2 x 3/64 inch

1шт.

3

55709C1

SPACER,1 1/4" Pipe x 1 1/4"

- sprocket

1шт.

4

517645R11

COLLAR

ASSEMBLY - locking, bearing, with set screw

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW - hex socket headless set, 3/8 x 3/8 inch

2шт.

5

825620C1

RETAINER

- lower roll bearing

4шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

12шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

14шт.

6

828644C1

SHROUD

ASSEMBLY - lower roll ene

2шт.

7

611583R91

BALL BEARING

BEARING ASSEMBLY - lower roll

2шт.

8

831230C1

ROLL

- lower steel

1шт.

9

831349C1

BAR

- bearing retainer spacer

2шт.

1o

NSS

NOT SOLD SEPARAT

CHAIN - lower roll drive (Use 139 links from bulk chain 611362R1 plus 1 connecting link 574532R91 and 1 offset link 612612R91)

1шт.
