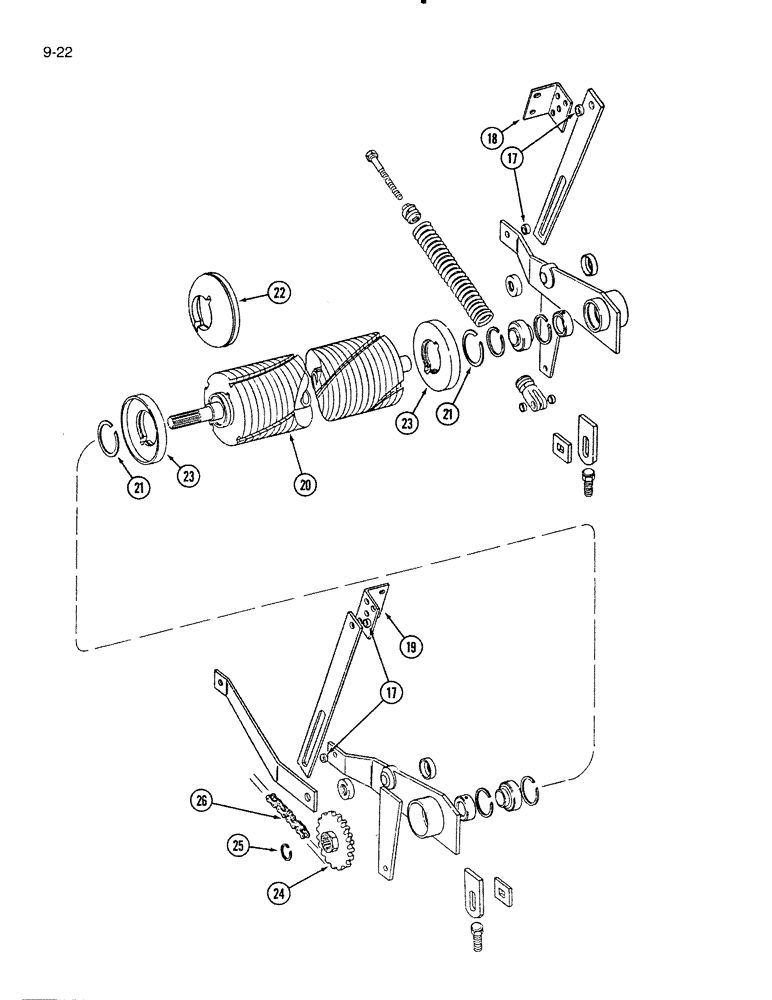

Запчасти Case IH 5000 (9-22) - CONDITIONER UPPER RUBBER ROLL, CHASSIS MOUNTED (09) - CHASSIS/ATTACHMENTS

17

474061R2

SPACER

- control bar

4шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 7/64 inch

4шт.

18

831903C1

ANGLE

- control bar support LH

1шт.

19

831904C1

ANGLE

- control bar support RH

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

20

831231C91

ROLL

ASSEMBLY - upper rubber

1шт.

21

598318R1

RING, SNAP

RING - retaining

2шт.

22

598316R1

DISC

DISK - rubber

96шт.

23

598317R2

CAP

- roller end

2шт.

24

828550C1

SPROCKET ASSY.

SPROCKET ASSEMBLY - upper roll drive, 26 tooth

1шт.

25

21193R1

SNAP RING,#137. Ext

Ring, Snap, #137, Ext

1шт.

26

NSS

NOT SOLD SEPARAT

CHAIN - upper roll drive (Use 39 links from bulk chain 611362R91 plus 1 connecting link 574532R91 and 1 offset link 612612R91)

1шт.
