Запчасти Case IH 5000 (9-20) - CONDITIONER UPPER RUBBER ROLL, CHASSIS MOUNTED (09) - CHASSIS/ATTACHMENTS

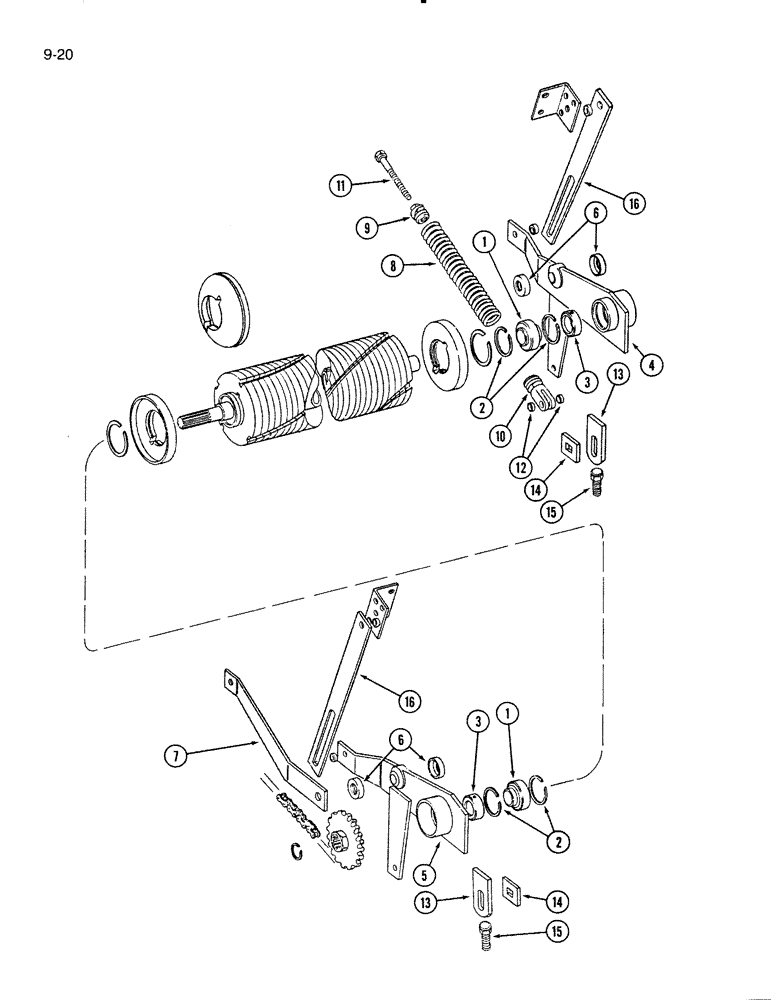

Схема запчастей Case IH 5000 - (9-20) - CONDITIONER UPPER RUBBER ROLL, CHASSIS MOUNTED (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

628904R91

BEARING ASSY,1.3755" ID x 72 mm OD x 2.015625"

BEARING - upper roll

2шт.

2

468337R1

SNAP RING,2.812", Int, #281

Ring, Snap, 2.812", Int, #281

4шт.

3

517645R11

COLLAR

ASSEMBLY - locking, bearing, with set screw

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW - hex socket headless set, 3/8 x 3/8 inch

2шт.

4

831344C1

ARM

ASSEMBLY - upper roll control LH

1шт.

5

831345C1

ARM

ASSEMBLY - upper roll control RH

1шт.

25700R1

BOLT,Hex, 3/4" - 10 x 7", Gr 8

- hex, 3/4 NC x 7 inch, Grade 8

1шт.

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

- hex, 3/4 NC x 3 inch

1шт.

425-1012

NUT,3/4"-10, G5

2шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

20825R1

WASHER

- flat, 25/32 x 2 x 3/32 inch

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

6

829542C1

SEAL

- ball joint

4шт.

7

831745C1

SUPPORT

- pivot RH

1шт.

i0

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT - hex, 3/8 inch NC

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 7/64 inch

1шт.

8

832315C1

SPRING

- pressure, roll tension

2шт.

9

PO2315

PLUG

- spring, rear

2шт.

10

811111C1

PLUG

- spring, front

2шт.

11

671365R1

BOLT,Hex, 1/2" - 13 x 7"

- spring tension adjusting

2шт.

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

2шт.

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 1/16 inch

2шт.

12

561277R1

SPACER,5/8" Tube x 1/2"

- front plug

4шт.

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

- flat, 7/16 x 1 x 5/64 inch

4шт.

13

828064C1

BAR

- stop, roll control arm

2шт.

14

829984C1

BAR

- stop spacer

2шт.

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

BOLT - round head square neck, 5/8 NC x 2 inch (Replaces 432-1032)

2шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex jam, 5/8 inch NC

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 7/64 inch

1шт.

21782R1

WASHER

- flat, 21/32 x 1-1/2 x 1/16 inch

1шт.

15

650006R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Full Thd

- control arm stop adjusting

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

2шт.

16

831901C1

BAR

- control, roll open

2шт.

Выбрано товаров: 38
