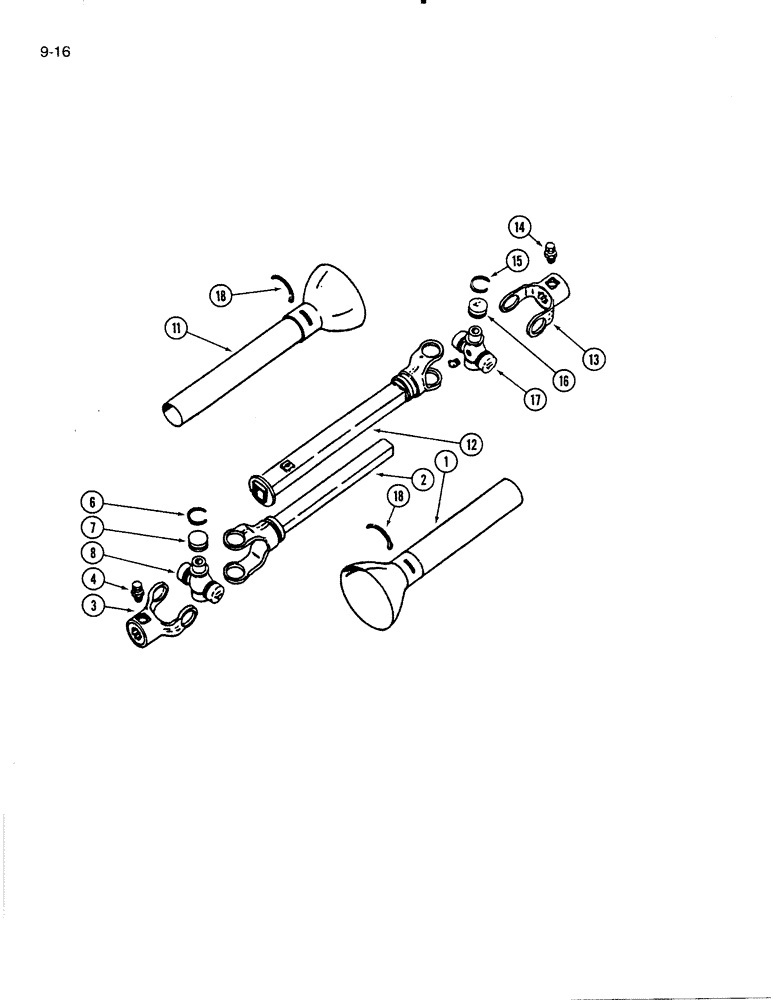

Запчасти Case IH 5000 (9-16) - HEADER DRIVE SHAFT (09) - CHASSIS/ATTACHMENTS

825002C93

JOINT

ASSEMBLY - half, with shaft

1шт.

1

599639R3

SHIELD

- outer

1шт.

827463C91

JOINT

ASSEMBLY - half, with shaft

1шт.

2

599636R1

YOKE

SHAFT ASSEMBLY - universal joint

1шт.

3

596257R1

YOKE

- universal joint

1шт.

4

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW - set, square head cone point, 1/2 NF x 1 inch

1шт.

425-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

757443

U-JOINT SPIDER

CROSS KIT - yoke (Replaces 609144R91)

1шт.

6

H423392

RETAINER

RING - retaining, external

4шт.

7

NSS

NOT SOLD SEPARAT

BEARING - cross

4шт.

8

NSS

NOT SOLD SEPARAT

CROSS ASSEMBLY - center

1шт.

825003C93

JOINT

ASSEMBLY - half with tube

1шт.

11

599638R2

SHIELD

- inner

1шт.

827464C92

JOINT

ASSEMBLY - half with tube

1шт.

12

599637R3

YOKE

TUBE ASSEMBLY - universal joint (Replaces 599673R3 )

1шт.

271432

LUBE NIPPLE,1/4" x .47 lg, Drive

FITTING - lub

1шт.

13

596257R1

YOKE

- universal joint

1шт.

14

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW - set, square head cone point, 1/2 NF x 1 inch

1шт.

425-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

757443

U-JOINT SPIDER

CROSS KIT - yoke (Replaces 609144R91)

1шт.

15

H423392

RETAINER

RING - retaining, external

4шт.

16

NSS

NOT SOLD SEPARAT

BEARING - cross

4шт.

17

NSS

NOT SOLD SEPARAT

CROSS ASSEMBLY - center

1шт.

599640R1

KIT

- shield bearing service

1шт.
