Запчасти Case IH 5000 (9-10) - HEADER DRIVE (09) - CHASSIS/ATTACHMENTS

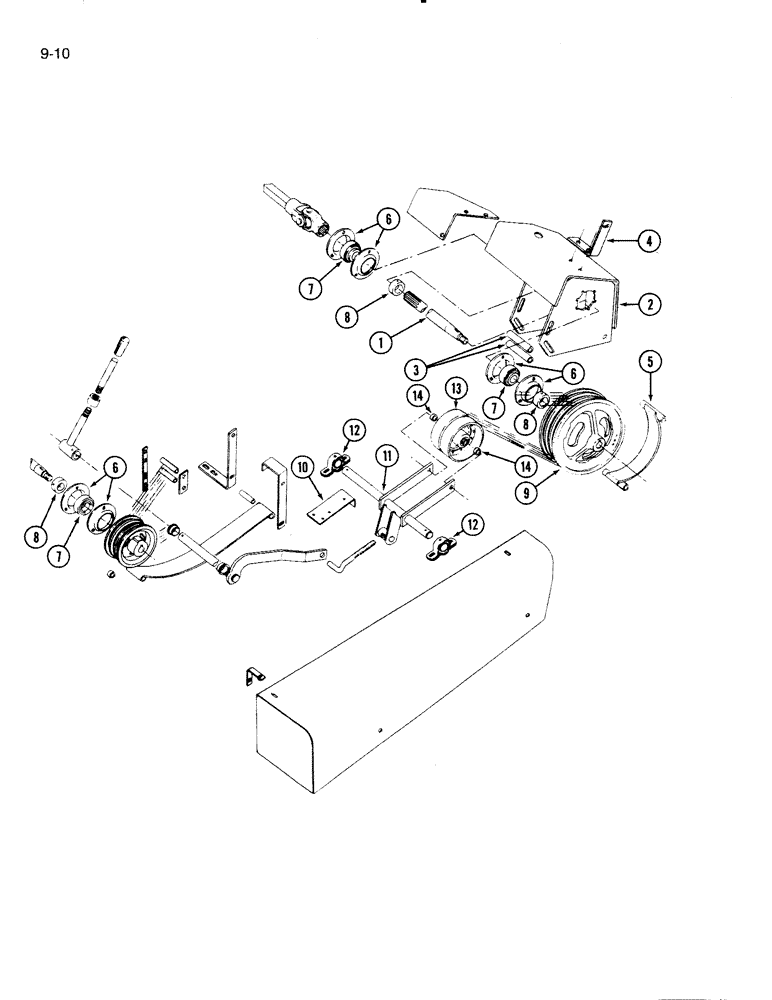

Схема запчастей Case IH 5000 - (9-10) - HEADER DRIVE (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

827622C92

SHAFT

ASSEMBLY - header drive

1шт.

425-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4 inch NF

1шт.

467750R1

WASHER

- flat, 25/32 x 1-1/2 x 7/64 inch

1шт.

32-1016

COTTER PIN

PIN - cotter, 5/32 x 1 inch

1шт.

2

829512C3

SUPPORT

ASSEMBLY - header pully

1шт.

27466R1

BOLT,Short NK, 1/2"-13 x 6 1/2", G5

- round head square neck, 1/2 NC x 6-1/2 inch

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

1шт.

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

- hex, 1/2 NC x 4-1/2 inch

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 7/64 inch

1шт.

3

631803R1

TUBE

SPACER - pipe

2шт.

4

829518C1

ANGLE

- belt guide spacer support

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

5

832379C1

GUIDE

ASSEMBLY - header drive belt

1шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 7/64 inch

1шт.

6

825620C1

RETAINER

FLANGETTE - bearing

6шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

18шт.

425-106

NUT,3/8"-16, Cl 5

18шт.

492-11038

LOCK WASHER,3/8"

18шт.

21741R1

WASHER

- flat, 13/32 x 7/8 x 7/64 inch

12шт.

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

- flat, 13/32 x 1 x 7/64 inch

6шт.

7

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

ASSEMBLY - shaft

3шт.

8

455104R11

COLLAR

ASSEMBLY - locking, bearing, with set screw

3шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW - hex socket headless set, 3/8 x 3/8 inch

3шт.

9

832332C1

PULLEY

- header driven

1шт.

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

- Woodruff SAE B, 5/16 x 1 inch

1шт.

10

823779C1

FASTENER

ASSEMBLY - bearing mounting

1шт.

11

832394C1

ROCKSHAFT

ASSEMBLY - tightener pulley

1шт.

609836R1

WASHER

- flat, 1-1/32 x 1-3/4 x 3/64 inch

1шт.

614451R1

WASHER

- flat, 1-1/32 x 1-3/4 x 3/32 inch

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

12

832207C91

HOUSING ASSY.

BEARING - tightener pulley rockshaft

2шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

425-105

NUT,5/16"-18, G5

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

20893R1

WASHER

- flat, 11/32 x 1 x 7/64 inch

2шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

4шт.

13

828458C91

PULLEY

ASSEMBLY - drive belt tightener

1шт.

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

- hex, 1/2 NC x 5 inch

1шт.

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

14

622535R1

SPACER,1/2" X-Strng Pipe x 7/16"

pulley 1/2" X-Strng Pipe x 7/16"

2шт.

Выбрано товаров: 49
