Запчасти Case IH 5000 (9-08) - DUAL CASTER WHEEL (09) - CHASSIS/ATTACHMENTS

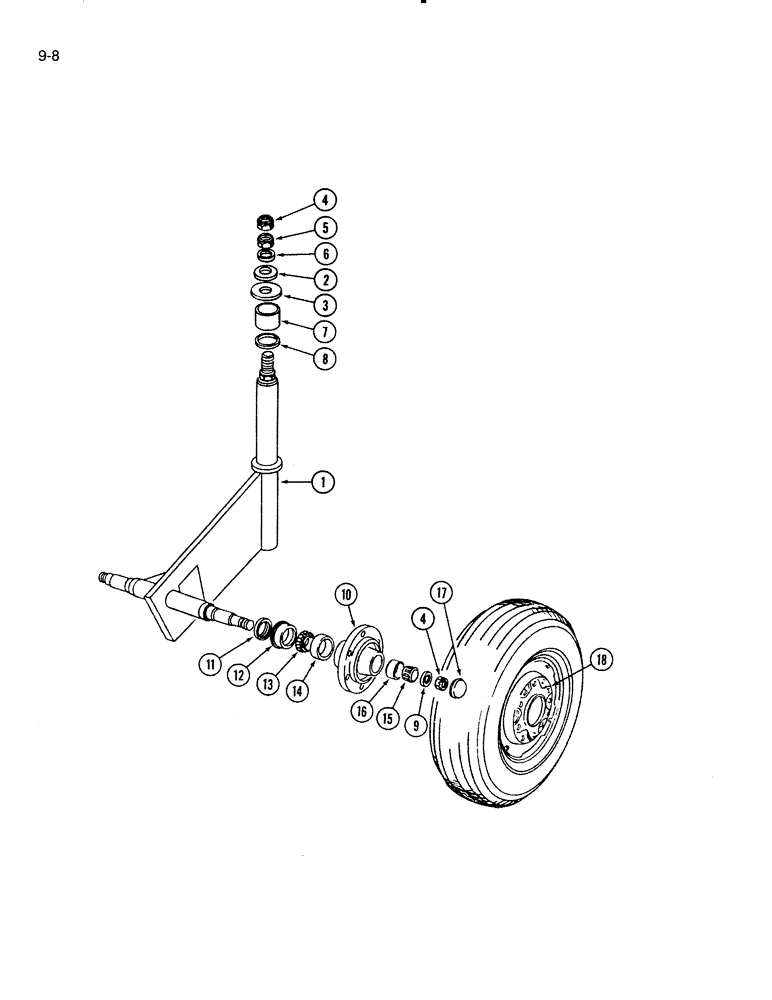

Схема запчастей Case IH 5000 - (9-08) - DUAL CASTER WHEEL (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

831484C92

AXLE

ASSEMBLY - dual wheel

2шт.

2

829962C1

SPRING WASHER

WASHER - spring

2шт.

3

829963C1

WASHER

- flat, 25/32 x 2-3/4 x 5/32 inch

2шт.

4

425-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4 inch NF

6шт.

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

6шт.

5

425-1512

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NF

2шт.

6

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch

1шт.

7

831163C1

SPACER

- dual axle caster wheel height

2шт.

8

488175R1

WASHER

- flat, 2-1/32 x 3 inch x 16 guage

2шт.

9

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- flat hardened, 25/32 x 1-1/4 x 1/8 inch

4шт.

10

810087C2

HUB

- wheel

4шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tapping

4шт.

11

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

- oil

4шт.

12

472222R1

SLEEVE

- oil seal

4шт.

13

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearing, inner

4шт.

14

651817R1

BEARING CUP

CUP - bearing, inner

4шт.

15

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE - bearing, outer

4шт.

15

651815R91GV

BEARING CONE

Value, Cone Bearing

4шт.

16

651814R1

BEARING CUP

CUP - bearing, outer

4шт.

17

B13280

HUB CAP

CAP - wheel hub

4шт.

18

T53527

WHEEL

RIM - wheel, 15 x 5 inch

4шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

- wheel

24шт.

387897R91

VALVE STEM

VALVE - tire

4шт.

Выбрано товаров: 23
