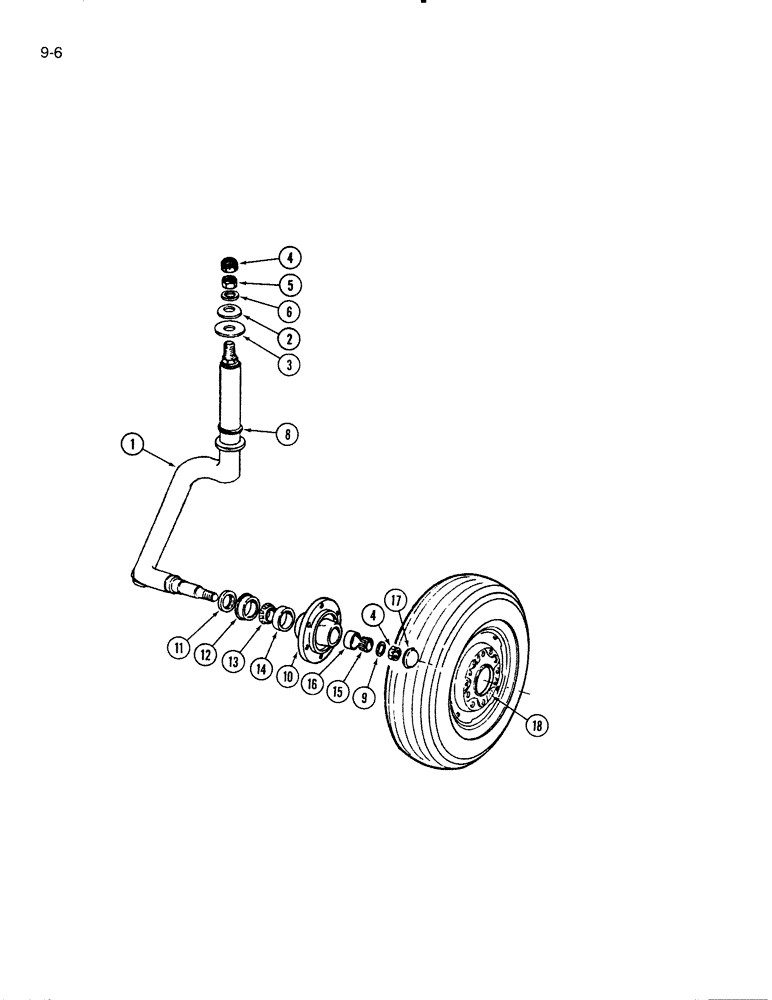

Запчасти Case IH 5000 (9-06) - CASTER WHEEL (09) - CHASSIS/ATTACHMENTS

1

827674C92

AXLE

ASSEMBLY - caster wheel left (Includes Ref 2 though 6)

1шт.

1

827675C92

AXLE

ASSEMBLY - caster wheel right

1шт.

2

829962C1

SPRING WASHER

WASHER - spring

2шт.

3

829963C1

WASHER

- flat, 25/32 x 2-3/4 x 5/32 inch

2шт.

4

425-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4 inch NF

4шт.

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

4шт.

5

425-1512

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NF

2шт.

6

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch

1шт.

8

488175R1

WASHER

- flat, 2-1/32 x 3 inch x 16 guage

2шт.

9

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- flat hardened, 25/32 x 1-1/4 x 1/8 inch

2шт.

10

810087C2

HUB

- wheel

2шт.

11

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tapping

2шт.

11

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

- oil

2шт.

12

472222R1

SLEEVE

- oil seal

2шт.

13

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearing, inner

2шт.

14

651817R1

BEARING CUP

CUP - bearing, inner

2шт.

15

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE - bearing, outer

2шт.

15

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

16

651814R1

BEARING CUP

CUP - bearing, outer

2шт.

17

B13280

HUB CAP

CAP - wheel hub

2шт.

18

T53527

WHEEL

RIM - wheel, 15 x 5 inch

2шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

- wheel

12шт.

387897R91

VALVE STEM

VALVE - tire

2шт.
