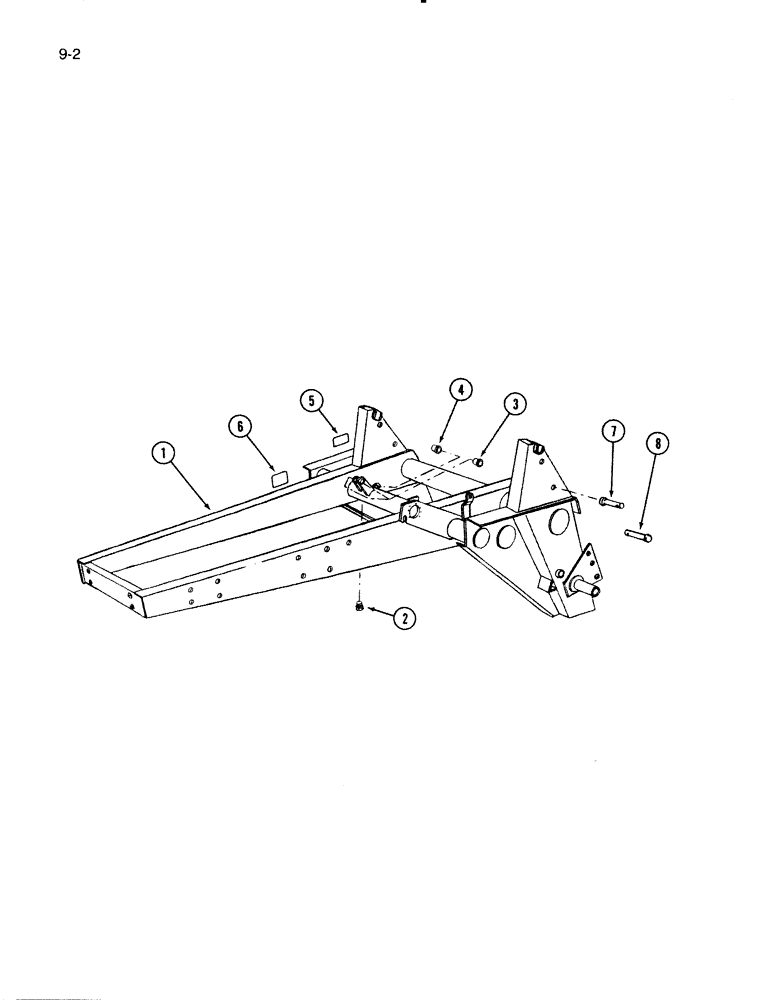

Запчасти Case IH 5000 (9-02) - MAIN FRAME (09) - CHASSIS/ATTACHMENTS

1

823462C93

FRAME

ASSEMBLY - main

1шт.

2

50057K

PLUG

- pipe, 1/2 inch magnetic (Replaces 618465R91)

1шт.

3

830053C1

BUSHING

- brake lever support

2шт.

4

595252R1

BUSHING

- brake rockshaft

1шт.

5

102105C1

DECAL

- danger

1шт.

6

823471C2

PRODUCT GRAPHIC

DECAL - warning, hillside operation

1шт.

425-105

NUT,5/16"-18, G5

6шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

635309R2

BOLT,Spcl Hex, 3/8" - 16 x 1 3/4"

- hex, 3/8 NC x 1-3/4 inch

2шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

7

21668R1

HEADED PIN,3/4" x 3 1/4"

PIN - head, 3/4 x 3-1/4 inch

4шт.

1978738C1

HAIR PIN COTTER

3/16"

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

8

21150R1

HEADED PIN,12.7mm OD x 57.15mm L

PIN - head, 1/2 x 2-1/4 inch

2шт.

1978738C1

HAIR PIN COTTER

3/16"

2шт.
