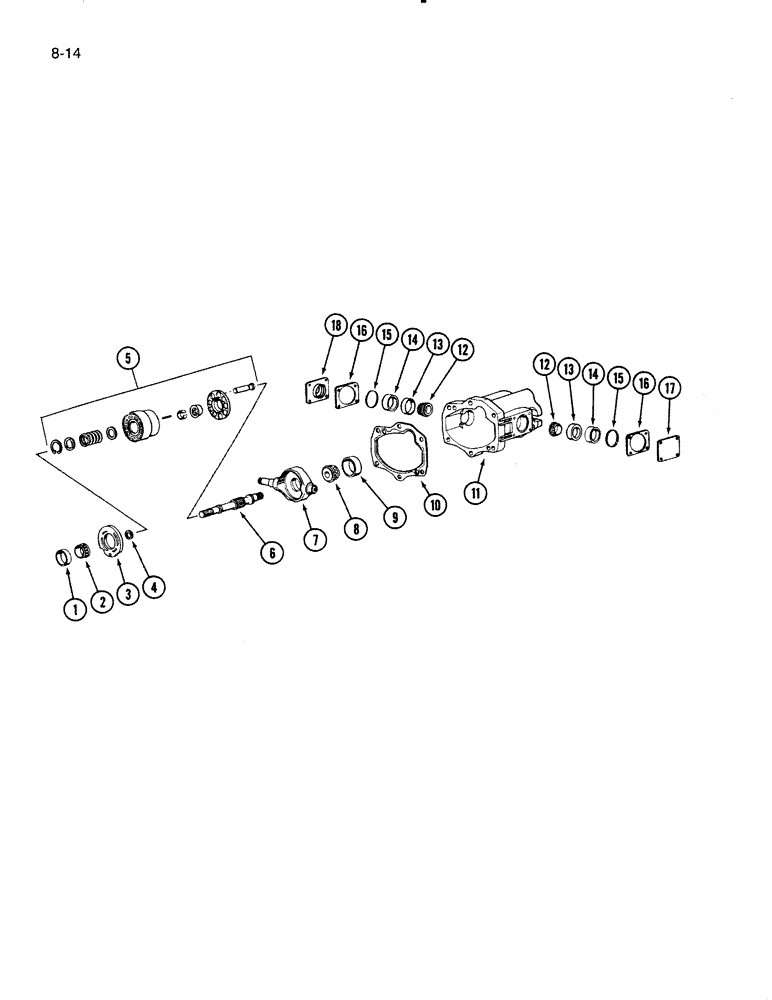

Запчасти Case IH 5000 (8-14) - TANDEM PUMP, INTERMEDIATE SECTION (08) - HYDRAULICS

149605C91

PUMP

ASSEMBLY - tandem

1шт.

1

371883R1

BEARING CUP

1шт.

2

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

1шт.

3

149704C1

LARGE PLATE

PLATE - valve RH

1шт.

4

145582C1

KIT

- spacer

1шт.

5

145592C91

KIT

- rotating group

1шт.

6

149703C1

SHAFT

- pump

1шт.

7

145597C1

FORK

HOUSING - swashplate yoke

1шт.

8

145579C91

BEARING HOUSING

BEARING - cone

1шт.

9

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

BEARING - cup

1шт.

10

A47280

GASKET,0.53mm Thk

- housing

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - pump (Order 149605C91)

1шт.

145596C1

BOLT,Torx, 3/8" - 16 x 1.50", Gr 5

- flanged 12 point, 3/8 NC x 1-1/2 inch

6шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

25710R1

WASHER

- flat, hardened, 17/32 x 1-1/16 x 9/64 inch

2шт.

12

572563R1

ROLLER BEARING,27 mm ID x 50.317 mm OD x 14.732 mm

- cone

2шт.

13

572564R1

BEARING CUP

BEARING - cup

2шт.

14

NSS

NOT SOLD SEPARAT

SPACER - pintle bearing

2шт.

15

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

Pump -137, 90 Duro, 2.05" ID x .103" Thk

2шт.

16

145590C1

SHIM KIT

KIT - shim

1шт.

17

NSS

NOT SOLD SEPARAT

PLATE - housing cover

1шт.

145591C1

BOLT,Hex, Serr , 1/4" - 20 x 0.50"

- trunnion

4шт.

18

149717C1

SEAL

- pintle cover

1шт.

145591C1

BOLT,Hex, Serr , 1/4" - 20 x 0.50"

- trunnion

4шт.

149715C91

SEAL KIT

- O-ring and seal (Includes parts marked +)

1шт.
