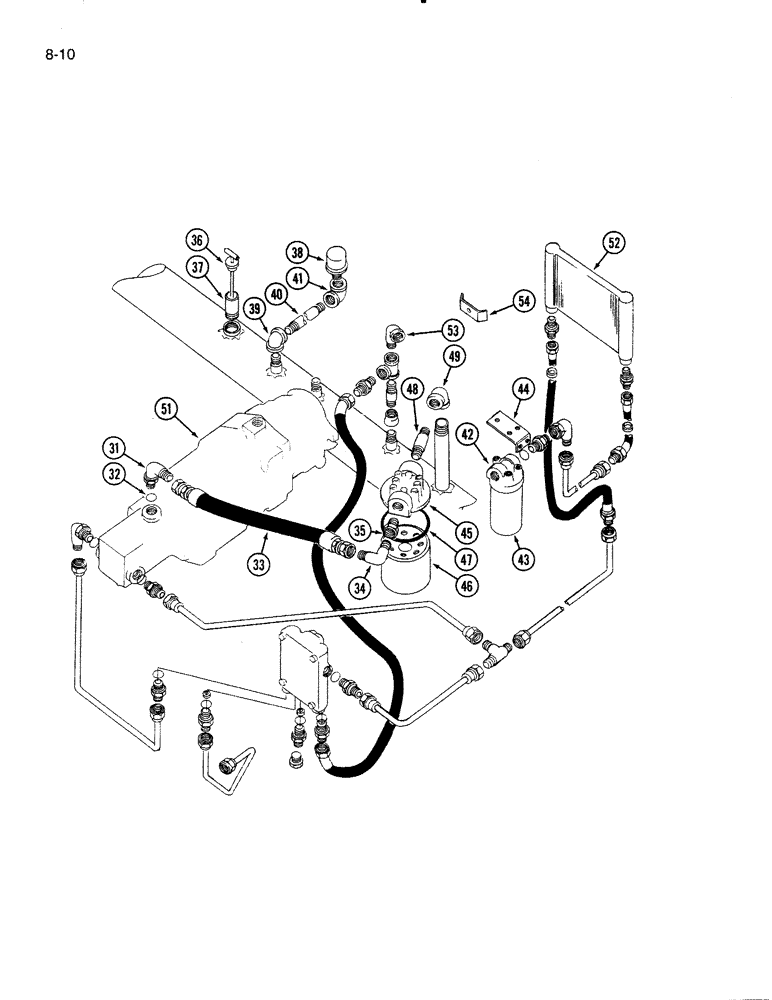

Запчасти Case IH 5000 (8-10) - HYDRAULIC SYSTEM (08) - HYDRAULICS

31

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º adjustable, 1 inch OD tube

1шт.

32

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

33

824237C1

HOSE

- suction, Serial Range: port-filter

1шт.

34

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- flared tube, 90 degree

1шт.

35

PL

PROCURE LOCALLY

Bushing -Reducer, 1-1/4" X 1" NPT Fem

1шт.

36

823538C1

GAUGE

DIPSTICK - oil level

1шт.

37

823173C1

FITTING

- filler pipe

1шт.

38

404510R1

BREATHER

BREATHER - reservoir

1шт.

39

142365

ELBOW - reducer, 1/2 x 3/8 inch pipe 90 degree

1шт.

40

219330

NIPPLE, LUBE,Nipple, 3/8" NPT x 10"

NIPPLE - pipe, 3/8 x 10 inch

1шт.

41

119097

ELBOW,90º, 3/8" NPT

- pipe 3/8 inch 90 degree

1шт.

562871C91

FILTER

ASSEMBLY - hydraulic

1шт.

42

NSS

NOT SOLD SEPARAT

HEAD - filter (Order 562871C91)

1шт.

43

1272942C1

FILTER, ELEMENT

ELEMENT - filter (Replaces 561980C1)

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

3шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

44

830766C1

SUPPORT

- filter

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

825017C91

FILTER

ASSEMBLY - hydraulic suction

1шт.

45

NSS

NOT SOLD SEPARAT

HEAD - filter (Order 825017C91)

1шт.

46

69149C1

FILTER

ELEMENT - filter

1шт.

47

824973C1

RING

- sealing with lip (GRESEN filter head)

1шт.

47

123010C1

RING

- sealing without lip (ZINGA filter head)

1шт.

48

219695

NIPPLE, LUBE,Nipple, 1 1/4" NPT x 3 1/2"

NIPPLE - filter mounting

1шт.

49

127824

ELBOW

- street 1-1/4 inch 90 degree

1шт.

51

REF

INSTRUCTION

PUMP ASSEMBLY - tandem (See page 8-13 through 8-17)

1шт.

52

REF

INSTRUCTION

COOLER - hydraulic oil (See page 8-3)

1шт.

53

108686

ELBOW,90 Degree, 1/2" NPT Street

- street, 1/2 inch 90 degree

1шт.

54

820036C1

SUPPORT

CLAMP - hose dual

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

- flat, 7/16 x 1 x 5/64 inch

2шт.
