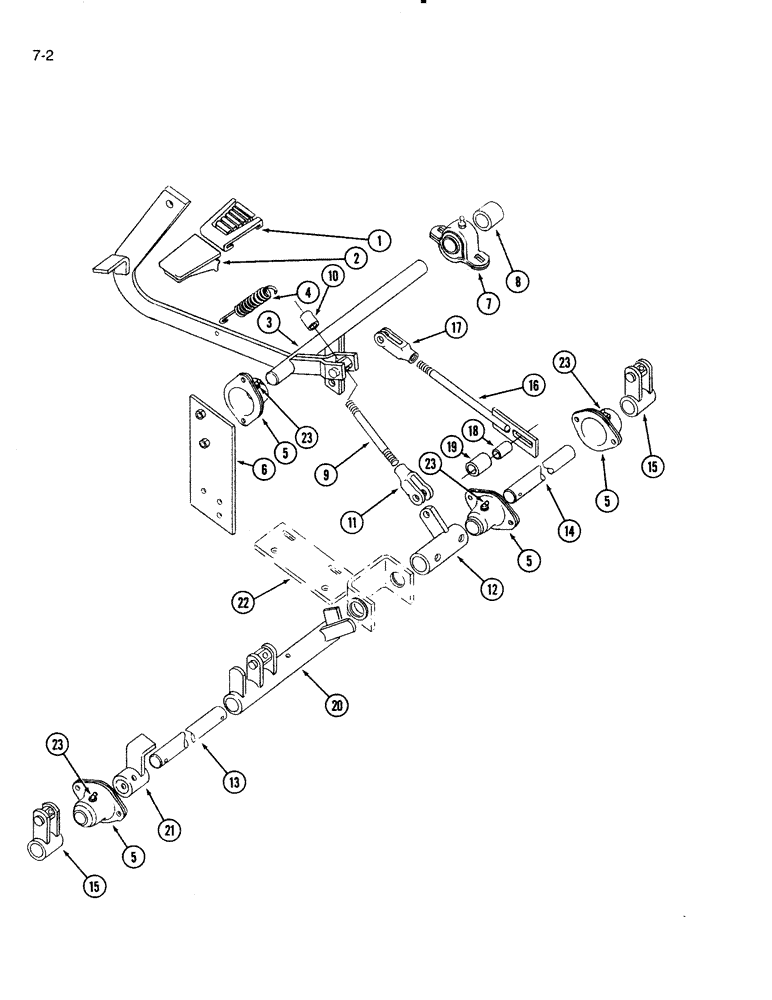

Запчасти Case IH 5000 (7-02) - BRAKE PEDAL (07) - BRAKES

1

863426R1

PAD

- brake pedal

1шт.

2

593873R1

PEDAL

- brake foot

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

3

823492C2

PEDAL

ASSEMBLY - brake control

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

4

510029R1

SPRING

- pedal return

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

5

827981C91

BUSHING

BEARING - pedal pivot LH and control rod support

4шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

8шт.

425-105

NUT,5/16"-18, G5

8шт.

614451R1

WASHER

- flat, 1-1/32 x 1-3/4 x 3/32 inch

1шт.

609836R1

WASHER

- flat, 1-1/32 x 1-3/4 x 3/64 inch

1шт.

6

823490C1

BAR

ASSEMBLY - bearing support LH

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

3шт.

425-105

NUT,5/16"-18, G5

3шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

7

832207C91

HOUSING ASSY.

BEARING - pedal pivot RH

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

425-105

NUT,5/16"-18, G5

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

M73125

SPACER,1" Pipe x 3/8"

- bearing RH

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

9

823810C1

STUD

- brake arm

1шт.

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

3шт.

10

354159R1

SPACER,3/8" Pipe x 13/16"

- brake equalizer control

1шт.

11

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - rod end

1шт.

103496

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

32-616

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

12

824199C1

ARM

ASSEMBLY - brake actuating

1шт.

138-2066

PIN,3/8" x 1 1/2", Coiled

1шт.

13

823807C1

ROD

- brake control LH

1шт.

14

823808C1

ROD

- brake control RH

1шт.

15

823584C1

ROCKSHAFT

ASSEMBLY - brake control

2шт.

138-2066

PIN,3/8" x 1 1/2", Coiled

2шт.

16

823905C1

ROD

ASSY - speed control over-ride

1шт.

17

104039

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS - rod end

1шт.

425-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

103498

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, 1/2 x 1-23/64 inch

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

18

823910C1

LINKAGE

BUSHING - rockshaft connection

1шт.

19

554327R1

SPACER,7/8" Tube x 1"

- tube, 7/8 x 1 inch

1шт.

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

20

823891C1

ROCKSHAFT

ASSEMBLY - brake

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

21

823487C1

ARM ASSEMBLY - brake

1шт.

138-2066

PIN,3/8" x 1 1/2", Coiled

1шт.

22

832299C91

ARM

ASSEMBLY - interlock

1шт.

23

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - lub, 1/4 inch, 90 degree

4шт.
