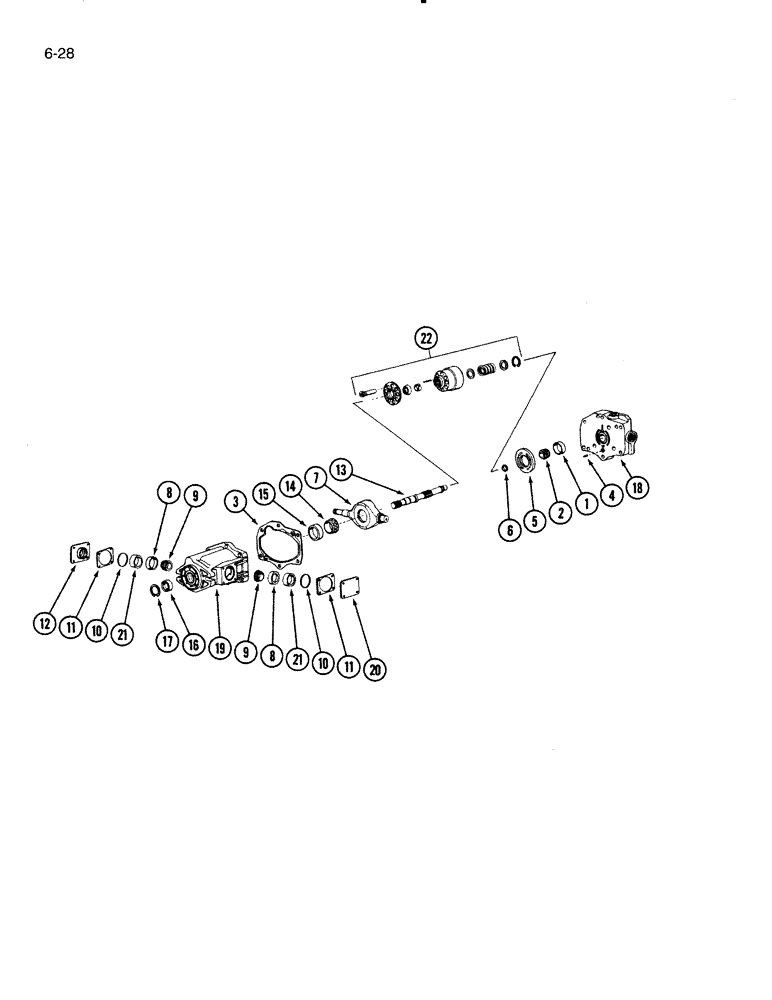

Запчасти Case IH 5000 (6-28) - HYDROSTATIC MOTOR, VARIABLE SPEED (06) - POWER TRAIN

145684C91

MOTOR

ASSEMBLY - hydrostatic variable speed

1шт.

1

371883R1

BEARING CUP

1шт.

2

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

1шт.

3

A47280

GASKET,0.53mm Thk

- housing (Relpaces 149712C1)

1шт.

4

145583C1

PIN

- dowel

1шт.

5

145584C1

LARGE PLATE

PLATE - valve

1шт.

6

145582C91

PACKAGE

KIT - spacer

1шт.

7

145597C1

FORK

HOUSING - swashplate yoke

1шт.

8

572564R1

BEARING CUP

BEARING - cup

2шт.

9

572563R1

ROLLER BEARING,27 mm ID x 50.317 mm OD x 14.732 mm

- cone

2шт.

10

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

Pump -137, 90 Duro, 2.05" ID x .103" Thk

2шт.

11

145590C1

SHIM KIT

KIT - shim

1шт.

12

149717C1

SEAL

- pintle cover

1шт.

145591C1

BOLT,Hex, Serr , 1/4" - 20 x 0.50"

- trunnion

4шт.

13

149714C1

SHAFT

- motor

1шт.

14

145579C91

BEARING HOUSING

BEARING - cone

1шт.

15

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

BEARING - cup

1шт.

16

145587C1

SEAL

- shaft

1шт.

17

309107R1

SNAP RING,1.75", Int, #175

Ring, Snap, 1.75", Int, #175

1шт.

18

NSS

NOT SOLD SEPARAT

HOUSING - valve block (Order 145684C91)

1шт.

19

NSS

NOT SOLD SEPARAT

HOUSING - motor (Order 145684C91)

1шт.

145596C1

BOLT,Torx, 3/8" - 16 x 1.50", Gr 5

- flanged 12 point, 3/8 NC 1-1/2 inch

6шт.

20

NSS

NOT SOLD SEPARAT

PLATE - cover (Order 145684C91)

1шт.

145591C1

BOLT,Hex, Serr , 1/4" - 20 x 0.50"

- trunnion

4шт.

21

NSS

NOT SOLD SEPARAT

SPACER - pintle bearing

2шт.

22

145581C91

KIT

- rotating group

1шт.
