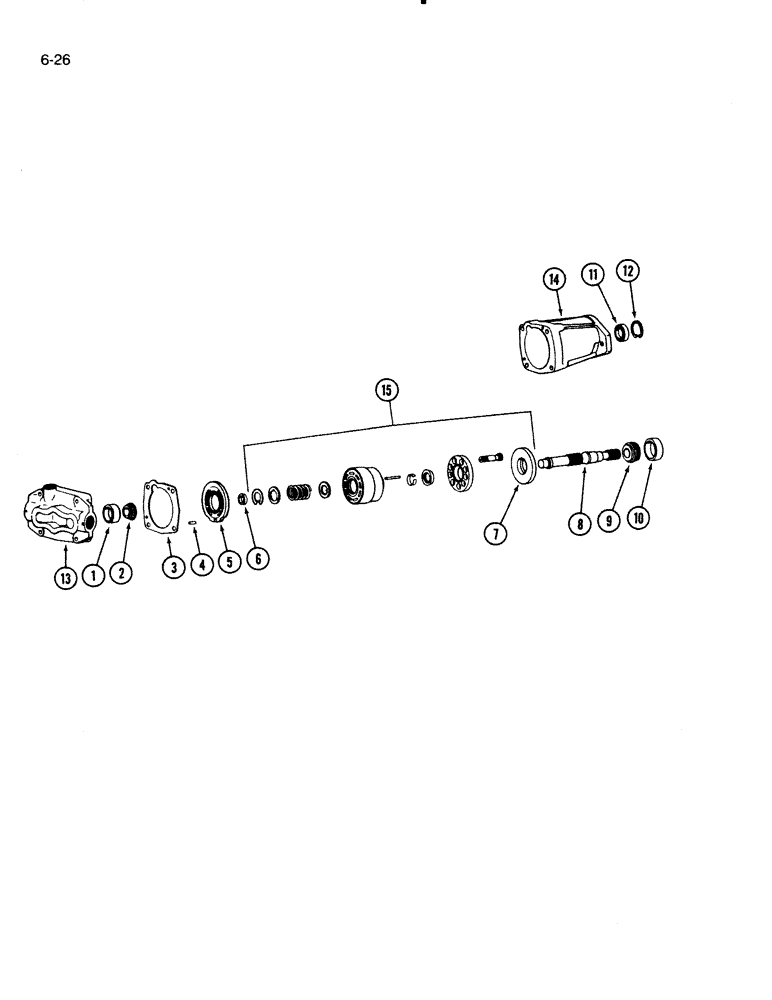

Запчасти Case IH 5000 (6-26) - HYDROSTATIC MOTOR, SINGLE SPEED (06) - POWER TRAIN

145683C91

MOTOR

ASSEMBLY - hydrostatic single speed

1шт.

1

371883R1

BEARING CUP

1шт.

2

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

1шт.

3

149711C1

GASKET

- valve block

1шт.

4

145583C1

PIN

- dowel

1шт.

5

N8306

PLATE

- valve

1шт.

6

145582C1

KIT

- spacer

1шт.

7

145598C1

PLATE

- thrust

1шт.

8

149713C1

SHAFT

- motor

1шт.

9

145579C91

BEARING HOUSING

BEARING - cone

1шт.

10

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

BEARING - cup

1шт.

11

A47480

SEAL,25.35mm ID x 44.78mm OD x 7.57mm Thk

- shaft

1шт.

12

309107R1

SNAP RING,1.75", Int, #175

Ring, Snap, 1.75", Int, #175

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - valve block (Order 145683C91)

1шт.

14

NSS

NOT SOLD SEPARAT

HOUSING - motor (order 145683C91)

1шт.

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

4шт.

15

145581C91

KIT

- rotating group

1шт.
