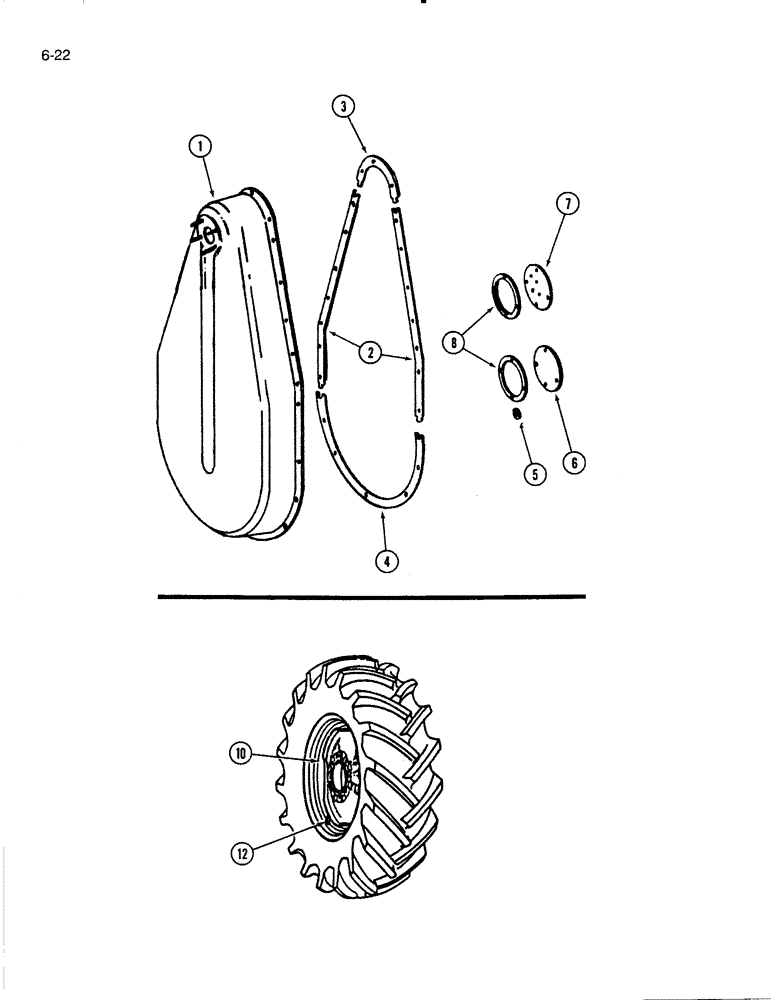

Запчасти Case IH 5000 (6-22) - FINAL DRIVE COVERS (06) - POWER TRAIN

1

827643C2

COVER

ASSEMBLY - final drive

2шт.

827655C1

GASKET

GASKET KIT - final drive cover

2шт.

2

NSS

NOT SOLD SEPARAT

GASKET - cover side

2шт.

3

NSS

NOT SOLD SEPARAT

GASKET - cover top

1шт.

4

NSS

NOT SOLD SEPARAT

GASKET - cover bottom

1шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

21801R1

WASHER

- flat, 9/32 x 3/4 x 3/64 inch

8шт.

281-5488

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 1/2"

SCREW - self tapping, 5/16 NC x 1/2 inch

46шт.

5

598058R1

SEALING WASHER

- sealing

18шт.

6

827673C2

COVER

- hand hole

2шт.

535183R2

SELF-TAP SCREW

BOLT - hex flange, 5/16 NC x 3/4 inch

8шт.

7

823861C1

COVER

- hand hole::2-

1шт.

535183R2

SELF-TAP SCREW

BOLT - hex flange, 5/16 NC x 3/4 inch

8шт.

8

827631C2

GASKET

- hand hole cover

4шт.

18437R91

LUBE NIPPLE,1/8"-27 NPT x .50" lg, Press Relief

VALVE - pressure relief, 1/8 inch PT

2шт.

10

820097C1

WHEEL

- main, 16.1 x W11C MAIN WHEELS

2шт.

10

A36744

RIM

WHEEL - main, 16.1 x 16LB (Replaces 831430C1) (Used with dual caster wheels) MAIN WHEELS

2шт.

12

387897R91

VALVE STEM

VALVE - wheel MAIN WHEELS

2шт.
