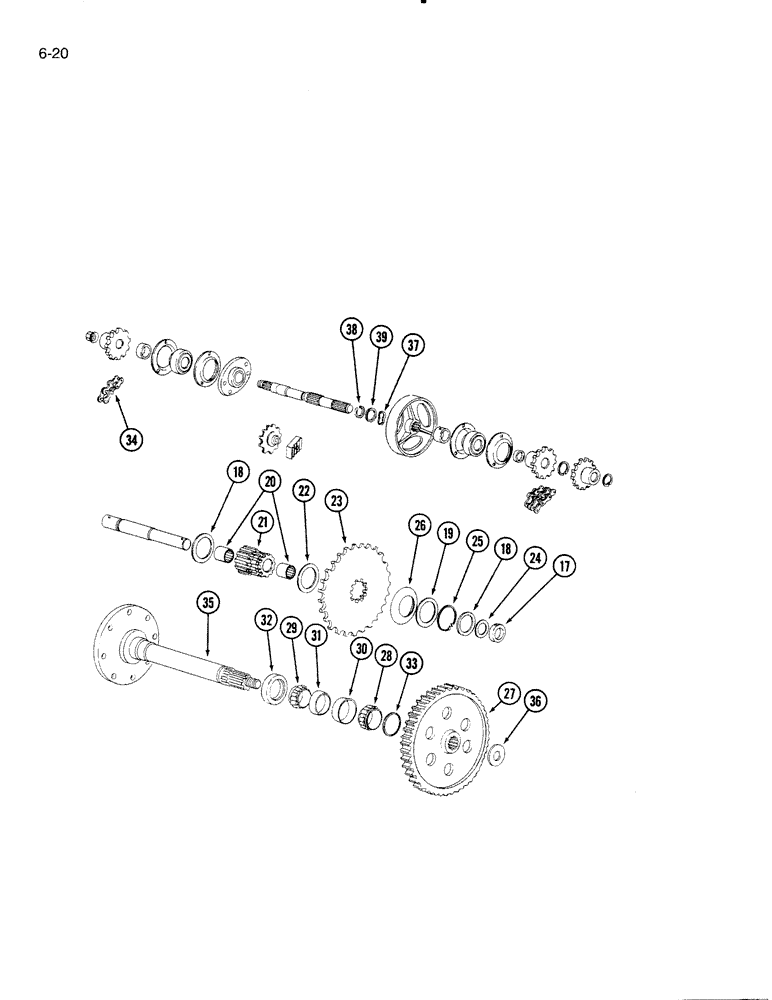

Запчасти Case IH 5000 (6-20) - FINAL DRIVE (06) - POWER TRAIN

17

828905C1

SPACER

- pinion shaft collar

2шт.

617943R1

PIN,5/16" x 2 1/2", Coiled

- cotter, 5/16 x 2-1/2 inch

2шт.

18

827648C1

WASHER

- pinion gear

4шт.

19

829572C1

WASHER

- pinion gear

2шт.

20

828966C91

NEEDLE BEARING,31.75 mm ID x 41.288 mm OD x 31.75 mm

- pinion gear

4шт.

21

827650C2

GEAR

- pinion

2шт.

22

1975415C1

THRUST WASHER,76.25mm ID x 95mm OD x 3.2mm Thk

- pinion gear thrust (Replaces 658034C2)

2шт.

23

827649C1

SPROCKET ASSY.

SPROCKET - final drive, 60 tooth

2шт.

24

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-9/32 x 2 x 3/64 inch

1шт.

25

324738R1

SNAP RING,#287, Ext

Ring, Snap, , final drive sprocket #287, Ext

2шт.

26

592956R1

BELLEVILLE WASHER

- belleville spring

2шт.

27

366335R1

GEAR

- final drive axle

2шт.

28

364463C91

BEARING ASSY,2.0005" ID x 3.2283" OD x 0.875"

CONE - bearing, roller

2шт.

29

327195R91

BEARING ASSY,2.25" ID x 3.8125" OD x 0.8268"

CONE - bearing, roller

2шт.

30

364462C1

BEARING CUP,82.55mm OD x 16.51mm W

CUP - bearing, roller

2шт.

31

105497H

BEARING CUP,96.85mm OD x 15.77mm W

CUP - bearing, roller

2шт.

32

824878C91

OIL SEAL

- axle outer oil

2шт.

33

828887C1

WASHER

- bull gear

2шт.

34

NSS

NOT SOLD SEPARAT

CHAIN - final drive (Use 111 links from bulk chain 1791D plus 1 connecting link 1310D and 1 offset link 1315D) (See Note A)

2шт.

34

NSS

NOT SOLD SEPARAT

CHAIN - final drive (Use 111 links from bulk chain 1791D plus 1 connecting link 1310D) (See Note B)

2шт.

35

831483C91

AXLE

ASSEMBLY - final drive

2шт.

36

95-81039

WASHER,1 1/32" x 3" x .240"

- flat, 1-1/32 x 3 x 7/32 inch

1шт.

596722R1

NUT

- hex slotted, 1 inch NC

1шт.

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

1шт.

609836R1

WASHER

- flat, 1-1/32 x 1-3/4 x 3/64 inch

1шт.

566206R2

BOLT,5/8" - 18 x 2.38", Class 8

- hub

16шт.

554480R1

WHEEL NUT

- hex special, 5/8 inch NF

16шт.

37

824600C1

WAVE WASHER

- wave spring

2шт.

38

609053R1

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

2шт.

39

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-9/32 x 2 x 3/64 inch

2шт.
