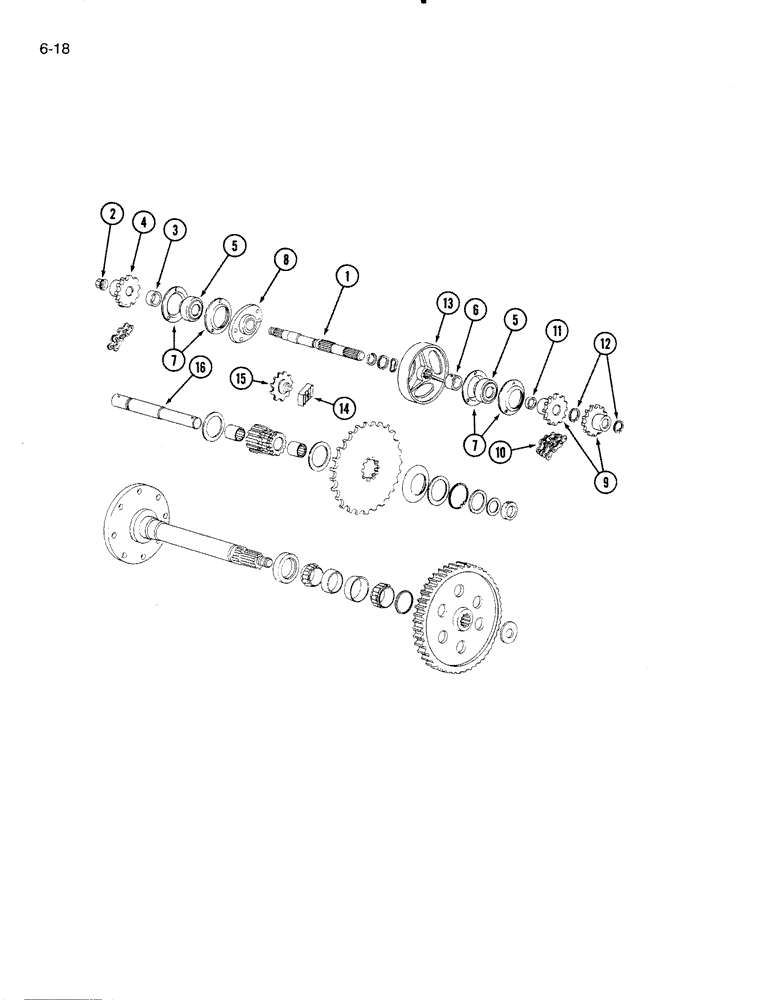

Запчасти Case IH 5000 (6-18) - FINAL DRIVE (06) - POWER TRAIN

1

825011C2

SHAFT

- final drive input (4000 P.I.N. 5901 and after, 5000 P.I.N. 2501 and after) (See Note A)

2шт.

2

414089C1

FLANGE NUT,5/8" - 18

NUT - hex flange lock, 5/8 inch NF, Grade 8

2шт.

3

832459C1

SPACER

- final drive sprocket

2шт.

4

823816C2

SPROCKET ASSY.

SPROCKET - final drive, 13 tooth (used on 4000 and 5000 with fixed single speed hydrostatic motors)

2шт.

4

831638C2

SPROCKET ASSY.

SPROCKET - final drive, 11 tooth ( used on 5000 with variable two speed hydrostatic motors)

2шт.

4

831638C2

SPROCKET ASSY.

SPROCKET - final drive, 11 tooth (Used on 4000 and 5000 with fixed single speed hydrostatic motors for hillside operation)

2шт.

5

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

- input shaft

4шт.

6

557115R11

COLLAR

COLLAR ASSEMBLY - locking

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW - hex socket, 5/16 NC x 5/16 inch

2шт.

7

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE - bearing

8шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

6шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex lock, 3/8 inch NC

12шт.

8

827679C1

OIL SEAL

- input shaft

2шт.

9

824604C2

SPROCKET ASSY.

SPROCKET ASSEMBLY - coupling, 18 tooth

4шт.

10

NSS

NOT SOLD SEPARAT

CHAIN - drive coupling (Use 17 links from bulk chain 1792D plus 1 connecting link 1378D)

2шт.

11

824999C1

SPACER

- coupling

2шт.

12

675683R1

SNAP RING,#93, Ext

Ring, Snap, #93, Ext

4шт.

13

825010C1

DRUM

- brake (4000 P.I.N. 5901 and after, 5000 P.I.N. 2501 and after) (See Note B)

2шт.

14

827632C1

ADJUSTER

- tightener sprocket

2шт.

15

594706R91

SPROCKET ASSY.,15T

SPROCKET ASSEMBLY - tightener, 15 tooth

2шт.

433-1044

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 3/4", Gr 5

BOLT - round head square neck, 5/8 NC x 2-3/4 inch

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch

2шт.

21782R1

WASHER

- flat, 21/32 x 1-1/2 x 1/16 inch

1шт.

16

827638C1

SHAFT

- pinion

2шт.

617943R1

PIN,5/16" x 2 1/2", Coiled

- cotter, 5/16 x 2-1/2 inch

2шт.
