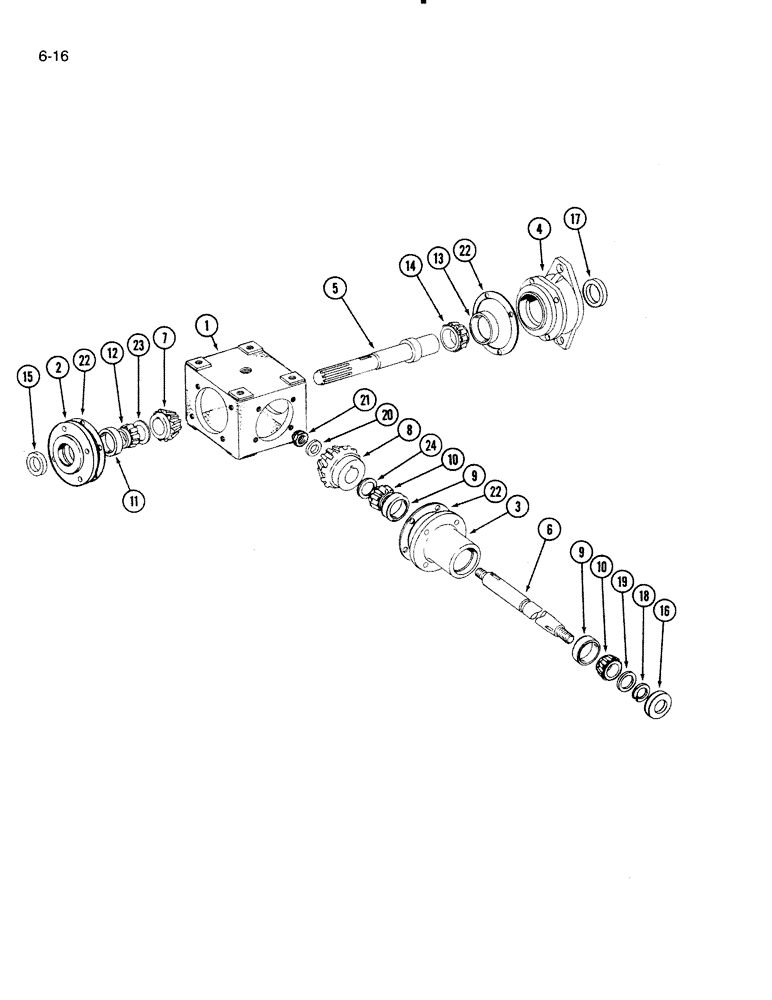

Запчасти Case IH 5000 (6-16) - BEVEL GEAR CASE (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
830163C91
CASE
ASSEMBLY - bevel gear
1шт.
1
920288C1
CASE
- bevel gear
1шт.
221-844
PLUG,Hex Soc, 1/2"-14
2шт.
920307C1
BUSHING - reducer
1шт.
18437R91
LUBE NIPPLE,1/8"-27 NPT x .50" lg, Press Relief
VALVE - pressure relief, 1/8 inch PT
1шт.
2
827838C1
CAP
- end
1шт.
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
- hex, 3/8 NC x 1 inch
4шт.
492-11038
LOCK WASHER,3/8"
4шт.
3
920199C1
HOUSING
- pinion
1шт.
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
- hex, 3/8 NC x 1 inch
4шт.
492-11038
LOCK WASHER,3/8"
4шт.
4
829181C1
CAP
- mounting end
1шт.
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
- hex, 3/8 NC x 1 inch
4шт.
492-11038
LOCK WASHER,3/8"
4шт.
5
830164C1
SHAFT
- output
1шт.
432-1016
COTTER PIN,5/32" x 1"
5/32" x 1"
1шт.
6
828628C1
SHAFT
- pinion
1шт.
7
923592C1
GEAR
- pinion
1шт.
126-124
WOODRUFF KEY,#15, 1/4" x 1", HT
1шт.
8
923593C1
GEAR
- pinion
1шт.
126-124
WOODRUFF KEY,#15, 1/4" x 1", HT
1шт.
11
350772R1
CUP ASSY.
CUP - end cap bearing
1шт.
12
827845C91
BEARING, ROLLER
CONE - end cap bearing
1шт.
13
453012R1
BEARING CUP
CUP - mounting end cap bearing
1шт.
14
453011R91
ROLLER BEARING,1.5" ID x 2.717" OD x 0.75"
CONE - mounting end cap bearing
1шт.
15
827846C1
OIL SEAL
- end cap
1шт.
16
827847C1
OIL SEAL
- pinion housing
1шт.
17
827848C1
OIL SEAL
- cap mounting end
1шт.
18
548628R1
RING
- snap, output shaft
1шт.
19
920305C1
WASHER
WASHER - output shaft
1шт.
20
920306C1
WASHER
- output gear
1шт.
21
827851C1
NUT
- output gear
1шт.
22
928755C1
GASKET
- end cap and housing (See Note)
3шт.
22
1995792C1
SHIM
- end cap and housing, 0.002 inch (If equipped)
6шт.
22
1995793C1
SHIM
- end cap and housing, 0.005 inch (If equipped)
9шт.
23
824950C1
SHIM
- bevel gear, 0.010 inch
1шт.
24
824949C1
SHIM
- bevel gear, 0.005 inch
1шт.
Выбрано товаров: 39
