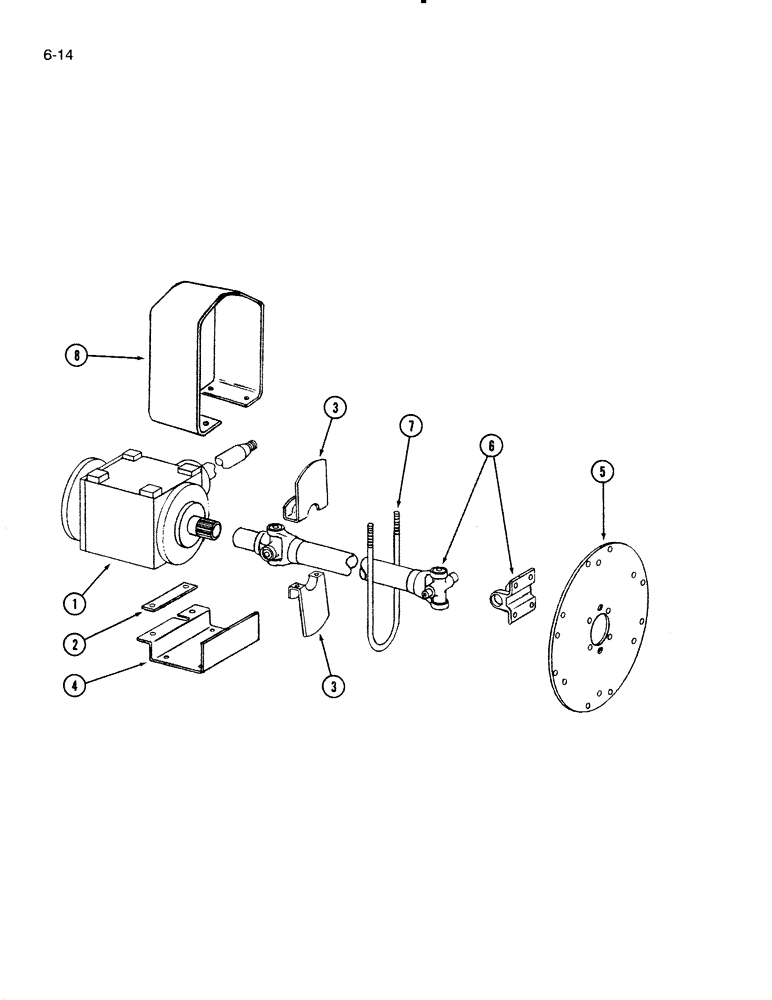

Запчасти Case IH 5000 (6-14) - BEVEL GEAR CASE AND PROPELLER SHAFT (06) - POWER TRAIN

1

830163C91

CASE

ASSEMBLY - bevel gear (See Page 6-17)

1шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

3шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

425-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4 inch NF

1шт.

467750R1

WASHER

- flat, 25/32 x 1-1/2 x 7/64 inch

1шт.

32-1016

COTTER PIN

PIN - cotter, 5/32 x 1 inch

1шт.

2

830346C1

SHIM

- gear case

1шт.

3

830300C2

BLADE

- gear case fan

2шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

4

830884C2

SHIELD

- gear case fan

1шт.

5

91362C1

PLATE

- final drive adaptor

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Use on 5000)

8шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Use on 4000)

6шт.

492-11038

LOCK WASHER,3/8"

6шт.

6

827804C93

JOINT

ASSEMBLY - power take off (See Page 6-25)

1шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

4шт.

25522R1

NUT,3/8"-16, G8

- hex, 3/8 inch NC, Grade 8

4шт.

828387C1

BELLEVILLE WASHER

- spring, 3/8 inch

4шт.

7

829229C1

BOLT,3/8" - 16 x 9 5/8"

U-BOLT - U-joint support

1шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

- flat, 13/32 x 1 x 7/64 inch

4шт.

8

830885C2

SHIELD

- gear case far, upper

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

4шт.

425-105

NUT,5/16"-18, G5

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.
