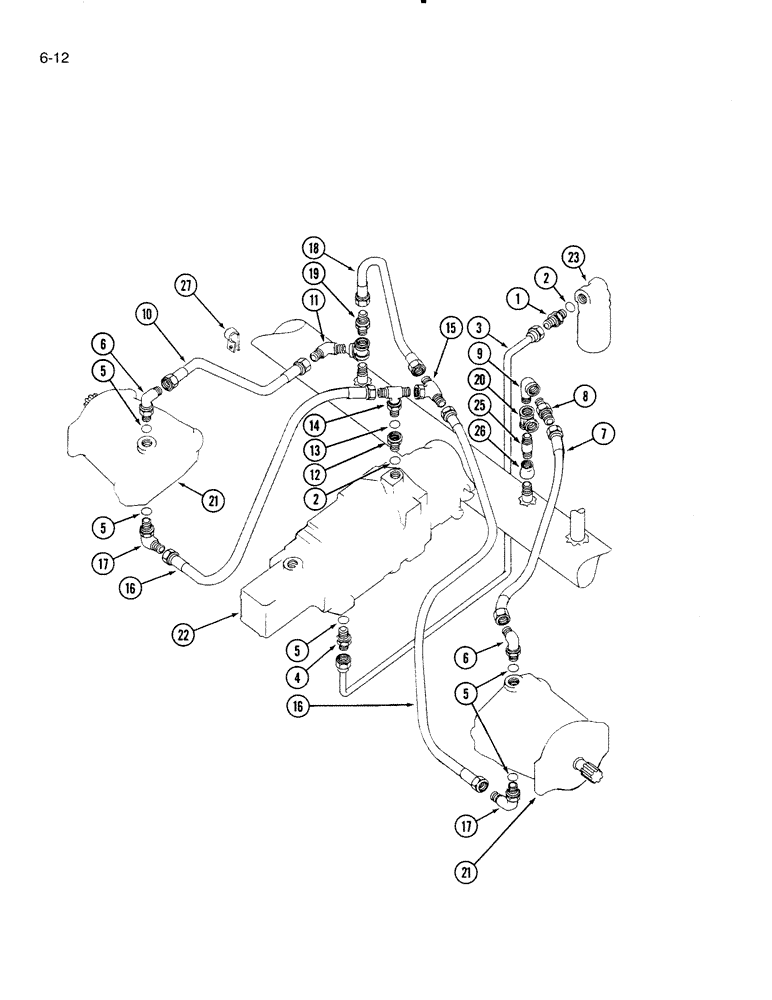

Запчасти Case IH 5000 (6-12) - HYDROSTATIC DRIVE, MOTOR DRAIN LINES, FIXED SINGLE SPEED AND VARIBLE TWO SPEED (06) - POWER TRAIN

1

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - short, reducer, 5/8 inch 7/8-14 x 3/4 inch 1-1/

1шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

3

832169C1

TUBE

- filter to pump charge port

1шт.

4

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch thread

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 ID x 7/64 inch

5шт.

6

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss

2шт.

7

823469C1

HOSE

- drain, LH motor

1шт.

8

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - flared tube, 5/8 inch tube, 7/8-14 thread x 1/2 in

1шт.

9

108686

ELBOW,90 Degree, 1/2" NPT Street

- 90 degree, 1/2 inch PT

1шт.

10

823624C2

HOSE

- drain, RH motor

1шт.

11

9402866

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1/2"-14, NPTF

- flared tube 90 degree

1шт.

12

386976R91

BUSHING,MALE-FEMALE STRT THREAD - #12 (3/4) male oring boss (UNO) to #6 (3/8) O-Ring Boss (UNO) female

UNION - reducer

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

14

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- adjustable, 1/2 inch

1шт.

15

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

- 3/4-16 inch swivel straight thread branch x flare

1шт.

16

823465C1

HOSE

- motor

2шт.

17

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adj O-ring

2шт.

18

824238C1

HOSE

-, Serial Range: tee-reservoir

1шт.

19

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - reducer

1шт.

20

138105

TEE,1/2" NPT, Fem

- pipe 1/2 inch

1шт.

21

REF

INSTRUCTION

MOTOR - hydrostatic (See PAGE 6-27 or 6-29)

2шт.

22

149605C91

PUMP

ASSEMBLY - tandem hydrostatic (See Page 8-13 through 8-17)

1шт.

23

562871C91

FILTER

- hydraulic

1шт.

25

221-187

PIPE,Nipple, 1/2" NPT x 1 1/2"

NIPPLE - pipe, 1/2 x 1-1/2 inch PT

1шт.

26

128149

COUPLING

- pipe 1/2 x 3/4 PT

1шт.

27

28135R1

CLAMP

- closed, coated, 15/16 inch ID

1шт.
