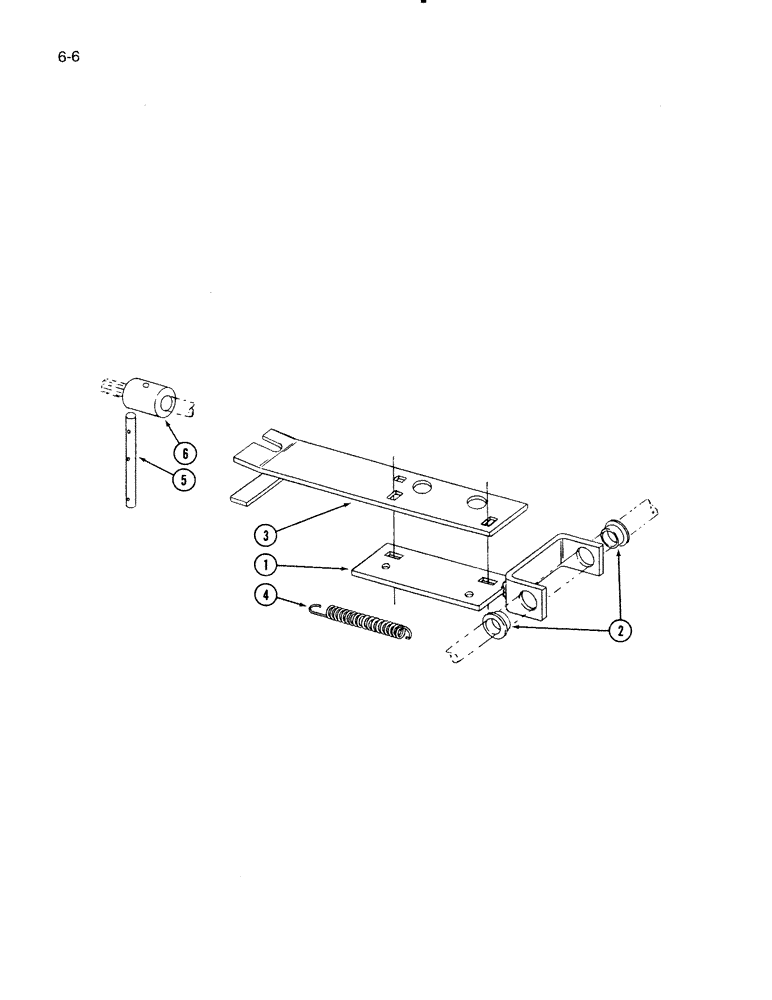

Запчасти Case IH 5000 (6-06) - NEUTRAL INTERLOCK (06) - POWER TRAIN

1

832299C91

ARM

ASSEMBLY - interlock

1шт.

2

595252R1

BUSHING

- arm

2шт.

535789R1

BOLT,Hex Serr, 5/16" - 18 x 1 1/4"

- hex flange 5/16 NC x 1-1/4 inch

1шт.

425-105

NUT,5/16"-18, G5

1шт.

3

824682C2

BAR

- interlock

1шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

2шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

2шт.

4

510029R1

SPRING

- safety start lever

1шт.

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

2шт.

425-105

NUT,5/16"-18, G5

4шт.

5

831539C1

PIN

- interlock (Use with ridgid steering)

1шт.

5

831510C2

PIN

- interlock (Use with tilt steering)

1шт.

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 3/64 inch

2шт.

364436R1

PIN,3/16" x 1", Coiled

3шт.

6

831506C1

HUB

- interlock pin

1шт.

483-1388

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

SCREW - set, headless hex socket, 3/8 NC x 1/2 inch

2шт.
