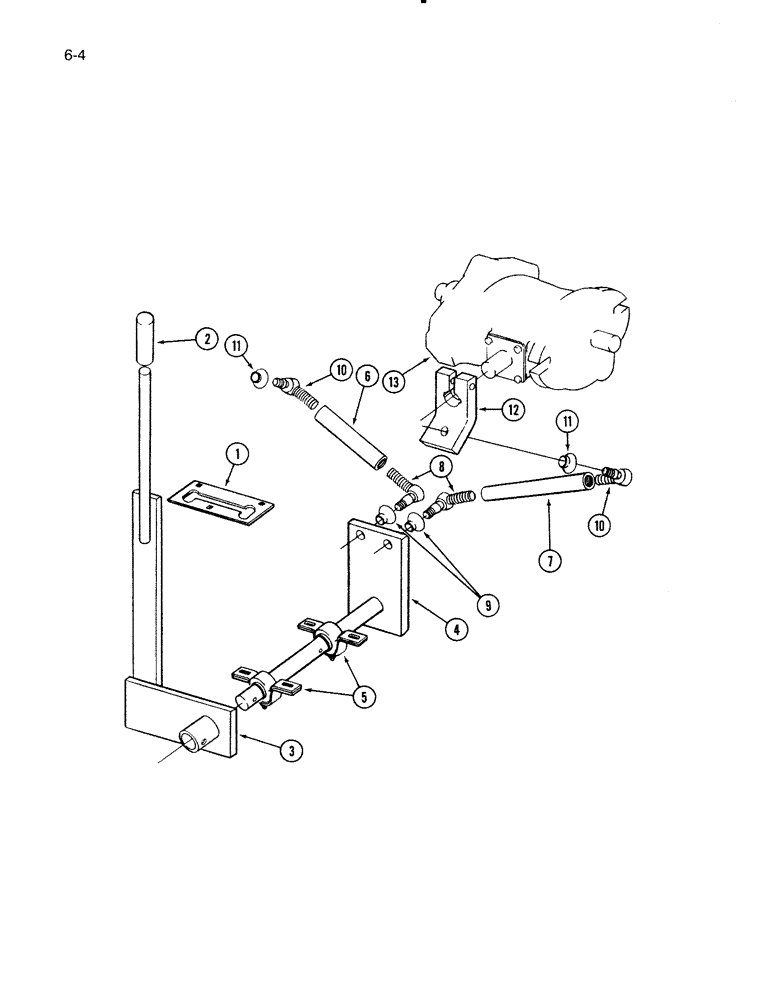

Запчасти Case IH 5000 (6-04) - TWO SPEED VARIABLE DRIVE (06) - POWER TRAIN

1

827687C1

BAR - two speed control lever sector

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

3шт.

425-105

NUT,5/16"-18, G5

3шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

2

829541C1

GRIP

- control lever

1шт.

3

832344C1

LEVER

ASSEMBLY - two speed control

1шт.

138-2066

PIN,3/8" x 1 1/2", Coiled

2шт.

4

832342C1

ROCKSHAFT

ASSEMBLY - motor control

1шт.

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch

1шт.

5

832207C91

HOUSING ASSY.

BEARING - rockshaft support

2шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

425-105

NUT,5/16"-18, G5

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

6

832340C2

TURNBUCKLE

- motor control LH

1шт.

7

832341C2

TURNBUCKLE

- motor control RH

1шт.

8

185120R91

END

- control rod LH thread

2шт.

9

189466R1

BOOT

SEAL - rod end

1шт.

125258

SLOTTED NUT,9/16"-18, G5

1шт.

366431R1

JAM NUT

- rod end LH thread

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITING - 1/4 inch PTF, straight, lube

2шт.

10

185121R91

END ASSY.

END - control rod RH thread

2шт.

11

189466R1

BOOT

SEAL - rod end

1шт.

125258

SLOTTED NUT,9/16"-18, G5

1шт.

366432R1

JAM NUT

NUT - rod end RH thread

2шт.

432-616

COTTER PIN,3/32" x 1"

3/32" x 1"

2шт.

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITING - 1/4 inch PTF, straight, lube

1шт.

12

832350C1

ARM

- motor control

2шт.

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

- Woodruff, 1/4 x 3/4 inch

2шт.

758318C1

SNAP RING,#98, Ext

Ring, Snap, #98, Ext

2шт.

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

13

145684C91

MOTOR

ASSEMBLY - variable speed drive (See Page 6-29)

1шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex, flange, self-locking, 1/2 inch NC

4шт.
