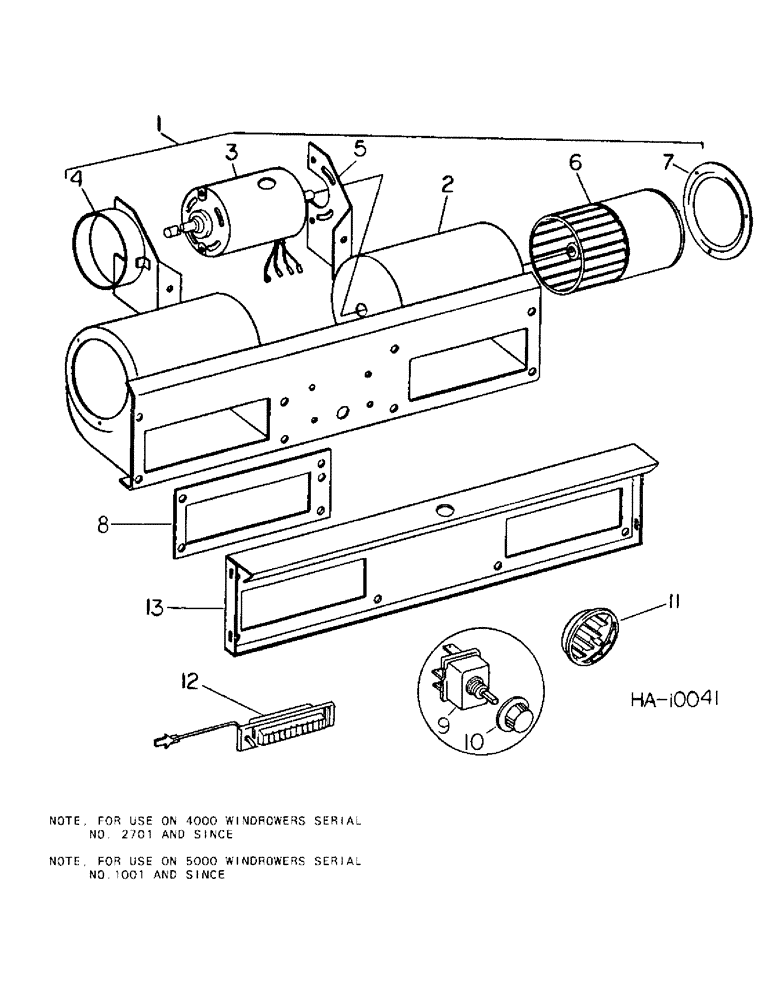

Запчасти Case IH 4000 (13-23) - SUPERSTRUCTURE, OPERATORS CAB BLOWER (05) - SUPERSTRUCTURE

1

109246C93

BLOWER

ASSY, cab, Replaces 823820C91

1шт.

2

117785C1

HOUSING

ASSY, blower

1шт.

3

117784C1

ELECTRIC MOTOR

MOTOR, blower

1шт.

4

539017R1

SUPPORT

motor LH

1шт.

Ref # 4 (539017R1) : Per print, this part does not have the band, as it is illustrated pictured. SMA 4/15/99

1шт.

5

539019R2

SUPPORT

BRACKET ASSY, motor RH

1шт.

Part ref # 5 (539019R2) : Per print, this part # is comprised of a band. SMA 4/15/99

1шт.

6

539018R2

FAN

WHEEL, fan LH

1шт.

6

539077R2

FAN

WHEEL, fan RH

1шт.

7

65010C1

RETAINER

RING, housing

2шт.

160556

SCREW,Cross Pan Hd, 1/4" - 20 x 1"

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

8

823731C1

SEAL

GASKET, blower mounting

2шт.

9

168822C2

SWITCH

blower control

1шт.

10

823384C1

KNOB

blower switch control

1шт.

109311H

JAM NUT

switch mounting

1шт.

11

173913C1

DEFLECTOR

louvered air

6шт.

12

823757C91

LIGHT

ASSY, interior, Includes 1-455490 lamp

1шт.

455490

BULB,C-6, #1003, 12V, .94W

LAMP, interior light

1шт.

24416R1

SCREW,Cross Oval Hd, #6 x 3/8"

#6-20 x 3/8 ovh cr rec type AB tapping

4шт.

13

823667C1

SUPPORT

blower mounting

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

21801R1

WASHER

.281 x .750 x .056

4шт.

827431C1

PRODUCT GRAPHIC

blower control

1шт.
