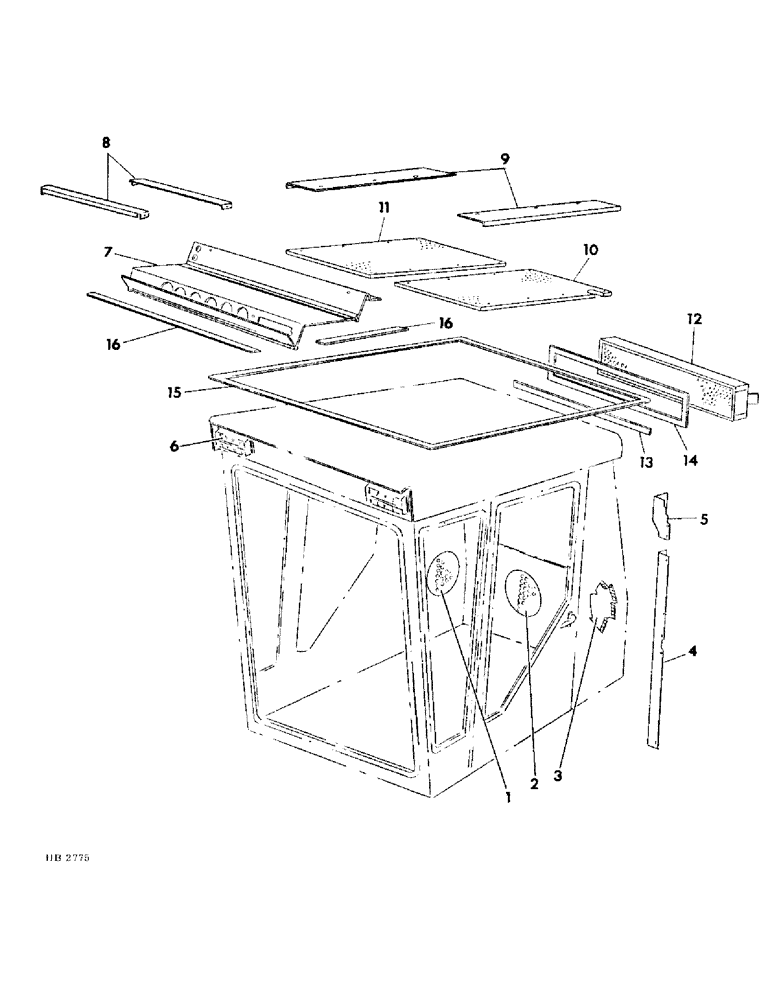

Запчасти Case IH 4000 (13-21) - SUPERSTRUCTURE, CAB SUPPORTS WITH INSULATION AND FILTER (05) - SUPERSTRUCTURE

1

823355C1

INSULATOR

INSULATION, RH side

1шт.

2

823356C1

INSULATOR

INSULATION, cab rear

1шт.

3

823357C1

INSULATOR

INSULATION, LH rear side

1шт.

4

823372C1

ANGLE

hose cover

1шт.

261-1458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, 10-24 x 1/2 pan hd cr rec tapping

5шт.

5

823358C1

SHIELD

hose top

1шт.

261-1458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, 10-24 x 1/2 pan hd cr rec tapping

2шт.

6

130882C91

LAMP

LIGHT ASSY, warning, For service parts refer to operators cab warning light section 8

4шт.

26618R1

SCREW

10-24 x 2-1/2 pan hd cr rec mach

8шт.

19910R1

LOCK NUT

10-24 hex lock

8шт.

7

823729C1

HOOD

ASSY, blower

1шт.

24409R1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

SCREW, 1/4-14 x 3/4 pan hd cr rec tapping type AB

3шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

6шт.

24390R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, SELF TAPPING, , Hood to roof Cross Pan Hd, #10 x 1/2"

8шт.

445441

NUT,U, #10-24

10-24 speed

6шт.

597227R1

NUT, speed

3шт.

8

823728C1

SUPPORT

insulation retainer

2шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

4шт.

19910R1

LOCK NUT

10-24 hex lock

4шт.

9

823742C1

SUPPORT

cab roof insulation

2шт.

24390R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, SELF TAPPING, Cross Pan Hd, #10 x 1/2"

6шт.

10

823685C1

PANEL, roof inner LH

1шт.

11

823691C1

PANEL

roof inner RH, Not for use w/air conditioner

1шт.

24390R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, SELF TAPPING, Cross Pan Hd, #10 x 1/2"

16шт.

12

827425C1

FILTER

roof dust air

1шт.

13

483510R1

SEAL

filter lower housing

1шт.

14

SEAL, filter 76 in, For service order from bulk stock no. 453761C1

1шт.

15

TAPE, self adhesive sealing 201 in, For service order from bulk stock no. 2643144R1

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 hex hd roof to cab and tape

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

12шт.

16

TAPE, hood sealing as required, For service order from bulk stock no. 2643152R1

1шт.
