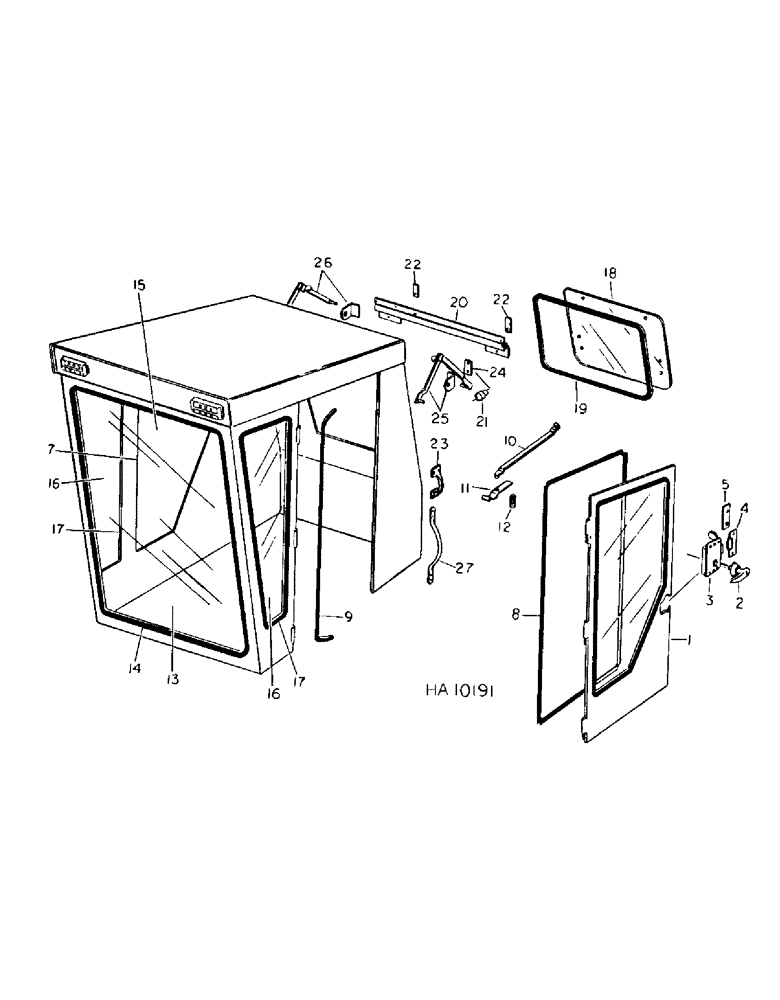

Запчасти Case IH 4000 (13-19) - SUPERSTRUCTURE, OPERATOR CAB GLASS AND DOOR (05) - SUPERSTRUCTURE

1

823271C1

DOOR

cab

1шт.

2

823292C1

HANDLE

door locking w/keys

1шт.

261-1458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, 10-24 x 1/2 pan hd cr rec tapping type D

2шт.

3

159195H1

LOCK ASSY

LATCH, door inside

1шт.

159947

HYD CONNECTOR

10-24 x 3/4 pan hd cr rec mach

4шт.

4

392801R2

CATCH

door striker

1шт.

5

823272C1

BAR

striker catch support

1шт.

156253

SCREW,Cross Flat Hd, 1/4" - 20 x 3/4"

1/4-20 x 3/4 flh cr rec mach

2шт.

6

827403C1

GLASS

door

1шт.

7

SEAL, glass door and rear RH window moulding 119 in, For service order from bulk stock no. 64517C1

2шт.

8

SEAL, door weather 180 in, For service order from bulk stock no. 713806C1

1шт.

9

STRIP, door opening edge 60 in, For service order from bulk stock no. 196707C1

1шт.

10

827407C1

ROD

door check

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex lock

1шт.

11

200867C1

SUPPORT

CLIP, door check

1шт.

12

827408C1

SPRING

check clip tension

1шт.

13

823277C1

GLASS

windshield

1шт.

14

SEAL, glass windshield 180 in, For service order from bulk stock no. 64517C1

1шт.

15

827403C1

GLASS

cab side window rear RH

1шт.

16

827405C1

GLASS

cab side window front

2шт.

17

SEAL, glass side front 129 in, For service order from bulk stock no. 64517C1

2шт.

18

823278C1

GLASS

cab rear window

1шт.

19

SEAL, cab rear 132 in, For service order from bulk stock no. 2643144R1

1шт.

20

823367C1

HINGE

ASSY, rear window

1шт.

86511922

SCREW,Pan, #10 - 24 x 3/4"

10-24 x 3/4 pan hd cr rec mach

9шт.

19910R1

LOCK NUT

10-24 hex lock

2шт.

426242C1

WASHER, glass attaching

2шт.

22317R1

WASHER

.219 x .750 x .054

2шт.

21

823296C1

SEAL, GLASS

glass attaching bushing

6шт.

22

SEAL, rear glass mounting 3.62 in, For service order from bulk stock no. 453761C1

2шт.

23

823347C1

HANDLE

cab grab

1шт.

160541

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

1/4-20 x 3/4 pan hd cr rec

4шт.

24

823311C1

STRIP

adjuster support

2шт.

25

896278C1

ADJUSTER

rear window LH

1шт.

26

896279C1

ADJUSTER

rear window RH

1шт.

159947

HYD CONNECTOR

10-24 x 3/4 pan hd cr rec mach

4шт.

19910R1

LOCK NUT

10-24 hex lock

4шт.

426242C1

WASHER, glass attaching

4шт.

22317R1

WASHER

.219 x .750 x .054

4шт.

27

824634C1

HANDLE

cab grab

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

4шт.
