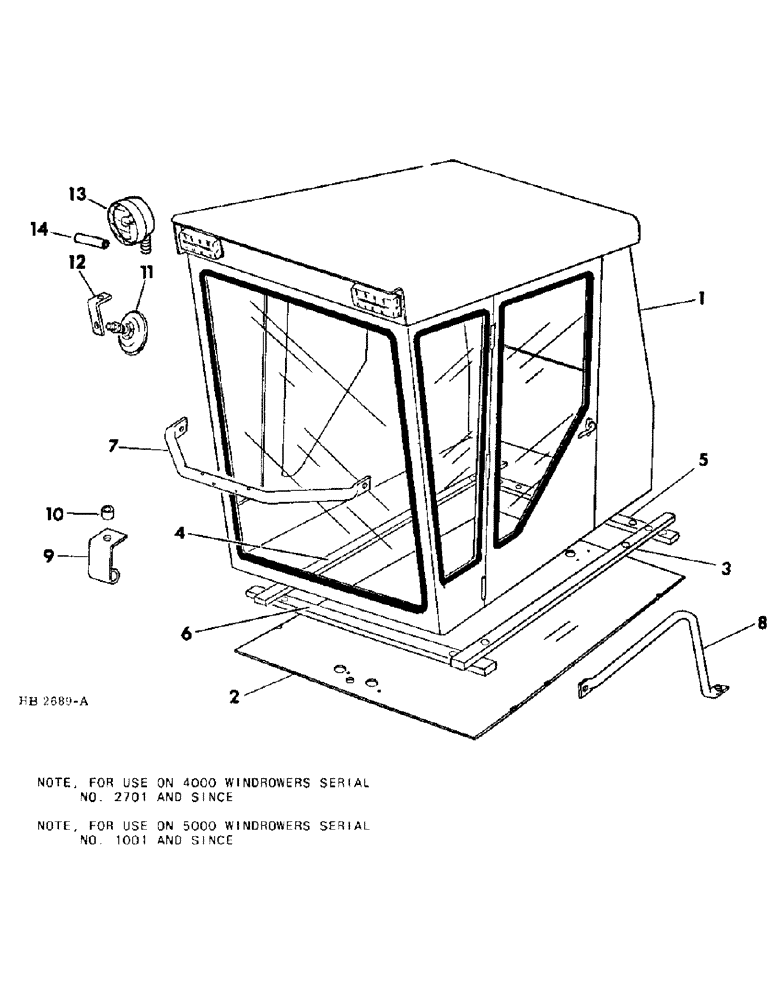

Запчасти Case IH 4000 (13-18) - SUPERSTRUCTURE, OPERATORS CAB MOUNTING AND RAILS (05) - SUPERSTRUCTURE

1

CAB ASSY, operators, For service order on machine order form

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 x 1-1/2 hex-hd

2шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2-13 x 2-1/4 hex-hd

12шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 hex flange lock

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

10шт.

120384

WASHER,1/2"

LOCK, 1/2"

10шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 prevailing torque opt w/597670R1 nut

2шт.

597670R1

NUT

1/2-13 prevailing torque opt w/9413967 nut

2шт.

2

831372C2

MAT

floor

1шт.

3

831438C1

STRIP, cab sealing side LH

1шт.

4

831439C1

STRIP, cab sealing side RH

1шт.

5

831440C1

STRIP, cab sealing rear

1шт.

6

831369C1

STRIP

cab sealing front

1шт.

7

829059C1

RAIL

front guard

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

8

828983C1

RAIL, side guide

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd

2шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

829924C1

SUPPORT, head light pivot, Not used w/cab mounted headlights

2шт.

189304

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

3/8-16 x 3-1/4 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

619856R1

WASHER

.406 x 1.000 x .056

4шт.

10

468530R1

SPACER,3/4" Pipe x 9/16"

headlight stud, Not used w/cab mounted headlights

1шт.

11

830622C1

MIRROR

rear view

1шт.

12

823348C1

SUPPORT

mirror

1шт.

13

599286R91

LAMP

LIGHT ASSY, head, Not part of cab assy, For use on 4000 Windrower serial no. 3250 and since, For use on 5000 Windrower serial no. 1350 and since, For service parts refer to headlight and taillight electrical section 08

1шт.

14

463580R1

SPACER,1/2" Pipe x 4.109"

headlight mounting, Not part of cab assy

2шт.

433163

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1/2-13 x 5 hex hd

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

20601R1

WASHER

.531 x 1.250 x .105

2шт.
