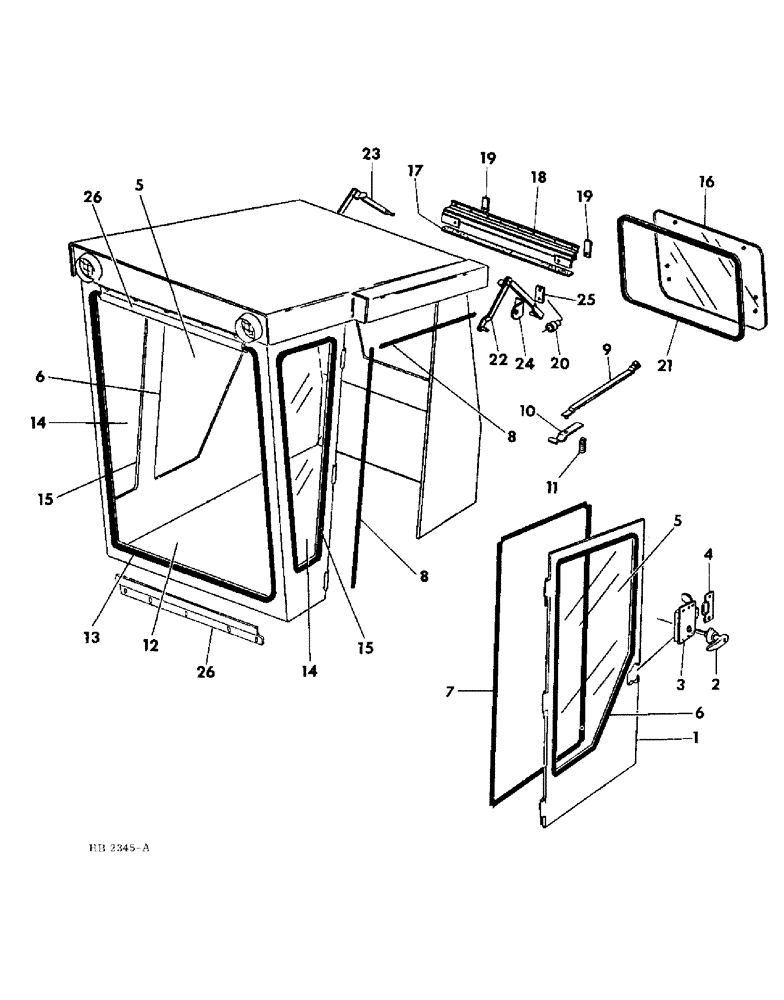

Запчасти Case IH 4000 (13-13) - SUPERSTRUCTURE, OPERATORS CAB GLASS AND DOOR (05) - SUPERSTRUCTURE

1

827402C91

DOOR ASSY, cab, Consists of

1шт.

NSS

NOT SOLD SEPARAT

DOOR

1шт.

175566C1

HANDLE

ASSY

1шт.

157070

SCREW,Cross Oval Hd, #10"-32 x 1/2"

2шт.

107377H

LOCK NUT,#10-32, GB

NUT, LOCK, #10-32, GB

2шт.

27394R1

SCREW

4шт.

178748C1

LATCH

WASHER

4шт.

827403C1

GLASS

1шт.

SEAL 119 INCH

1шт.

SEAL 169 INCH

1шт.

2

175566C1

HANDLE

ASSY, locking w/keys

1шт.

157070

SCREW,Cross Oval Hd, #10"-32 x 1/2"

10-32 x 1/2 oval hd

2шт.

107377H

LOCK NUT,#10-32, GB

NUT, LOCK, #10-32, GB

2шт.

3

178748C1

LATCH

LOCK ASSY, door

1шт.

27394R1

SCREW, 10-32 x 1/2 pan-hd cross recess tapping

4шт.

178378

LOCK WASHER,Ext-Int Tooth, #10

WASHER, no. 10 tooth lock

4шт.

4

392801R2

CATCH

PLATE, door striker

1шт.

156241

SCREW,Cross Flat Hd, 1/4" - 20 x 1/2"

2шт.

5

827403C1

GLASS

door and side window rear RH

2шт.

6

SEAL, door & side window rear glass moulding 119 in, For service order from bulk stock no. 64517C1

2шт.

7

SEAL, door weather, For service order 169 inch from bulk stock no. 713806C1

1шт.

8

SEAL, door opening and top 83 inches, For service order from bulk stock no. 196707C1

1шт.

9

827407C1

ROD

ASSY, door check

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 prev torque

1шт.

10

200867C1

SUPPORT

CLIP, door check

1шт.

11

827408C1

SPRING

check clip tension

1шт.

12

827404C1

GLASS

windshield

1шт.

13

SEAL, windshield glass moulding 180 inch, For service order from bulk stock no. 61517C1

1шт.

14

827405C1

GLASS

cab side window front

2шт.

15

SEAL, glass moulding 129 inch, For service order from bulk stock no. 996998R1

2шт.

16

827406C1

GLASS

cab rear window

1шт.

17

STRIP, glass edging 34.3 inch, For service order from bulk stock no. 996998R1

1шт.

18

827409C1

HINGE ASSY, rear window

1шт.

167177

SCREW, 10-32 x 3/4 pan-hd cross recess tapping

7шт.

178378

LOCK WASHER,Ext-Int Tooth, #10

WASHER, no. 10 tooth lock

7шт.

19

827410C1

STRIP, hinge spacer

2шт.

20

896274C1

BUSHING

glass attch

6шт.

86511922

SCREW,Pan, #10 - 24 x 3/4"

10-24 x 3/4 pan-hd cross recess machine

6шт.

26303R1

HARDWARE,#10-24

NUT, 10-24 hex-mach screw

6шт.

120391

WASHER,#10

.219 x .500 x .036

6шт.

21

SEAL, rear window opening, For service order 130 inch from bulk stock no. 827417C1

1шт.

22

896278C1

ADJUSTER

ASSY, rear window LH

1шт.

23

896279C1

ADJUSTER

ASSY, rear window RH

1шт.

24

896272C1

BRACKET

rear window adjuster

2шт.

25

896273C1

SHIM

STRIP, adjuster bracket shim

2шт.

26

827465C1

RETAINER

glass

2шт.

9415810

SCREW, 5/6-18 x 3/4 hex hd

10шт.

178532

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, 5/6 ext/int tooth lock

10шт.
