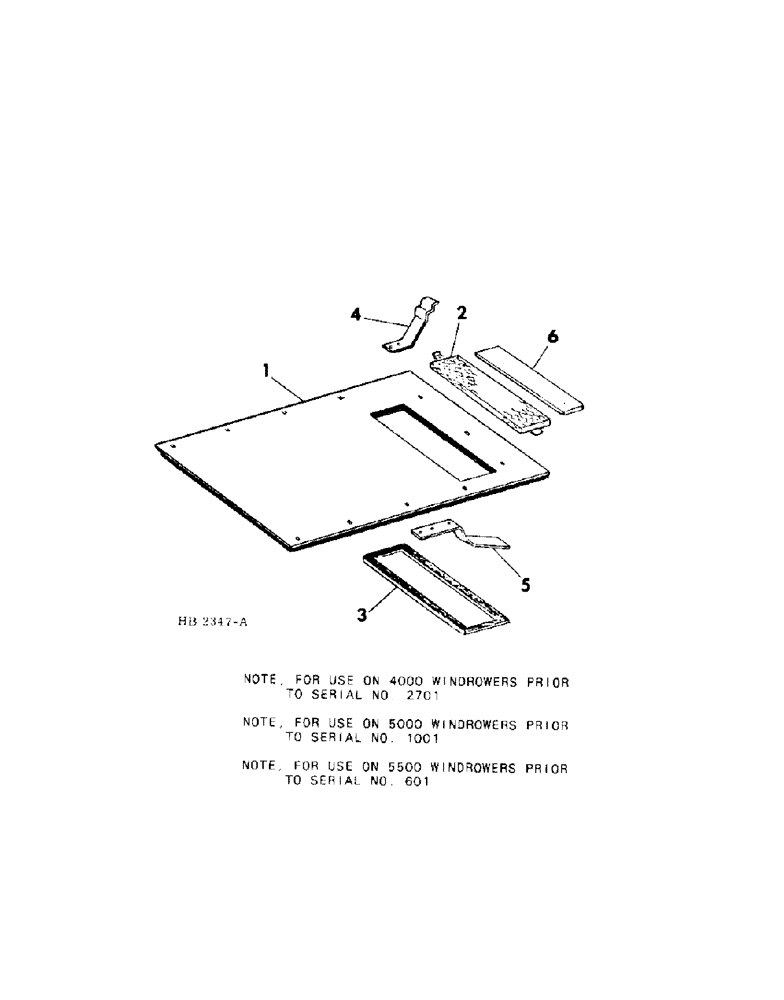

Запчасти Case IH 4000 (13-12) - SUPERSTRUCTURE, OPERATORS CAB CEILING RIGHT HAND, FOR USE WITH AIR CONDITIONING (05) - SUPERSTRUCTURE

827433C91

SPARE PART PANEL ASSY, ceiling RH, Consists of

1шт.

NSS

NOT SOLD SEPARAT

PANEL

1шт.

*

SEAL 39 INCH

1шт.

198115C1

SPARE PART SCREEN

1шт.

827435C1

SPARE PART NUT

1шт.

827436C1

SPARE PART SPRING

1шт.

827437C1

SPARE PART HANDLE

1шт.

446636

SCREW

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

1

PANEL, ceiling RH, For service order 1-827433C91 panel assy

1шт.

2

198115C1

SPARE PART SCREEN, ceiling

1шт.

827435C1

SPARE PART NUT, 1/4-20 u-type speed

1шт.

3

SEAL, recirculating door 39 inch, For service order from bulk stock no. 827434C1

1шт.

4

827436C1

SPARE PART SPRING, door

1шт.

5

827437C1

SPARE PART HANDLE, door

1шт.

446636

SCREW, 10-32 x 1/2 truss-hd sltd mach

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

6

198120C1

FILTER

FILTER, recirculating

1шт.

527541R92

AIRCOND. COMPRESSOR

COMPRESSOR ASSY, air conditioner, Consists of all parts listed

1шт.

417888C93

AIRCOND. COMPRESSOR

Compressor Assy., A/C

1шт.

1924004C2

REMAN-A/C COMPRESSOR

Reman For New P/N 417888C93

1шт.

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.
