Запчасти Case IH 4000 (13-06[A]) - SUPERSTRUCTURE, OPERATORS SEAT BOSTRUM (05) - SUPERSTRUCTURE

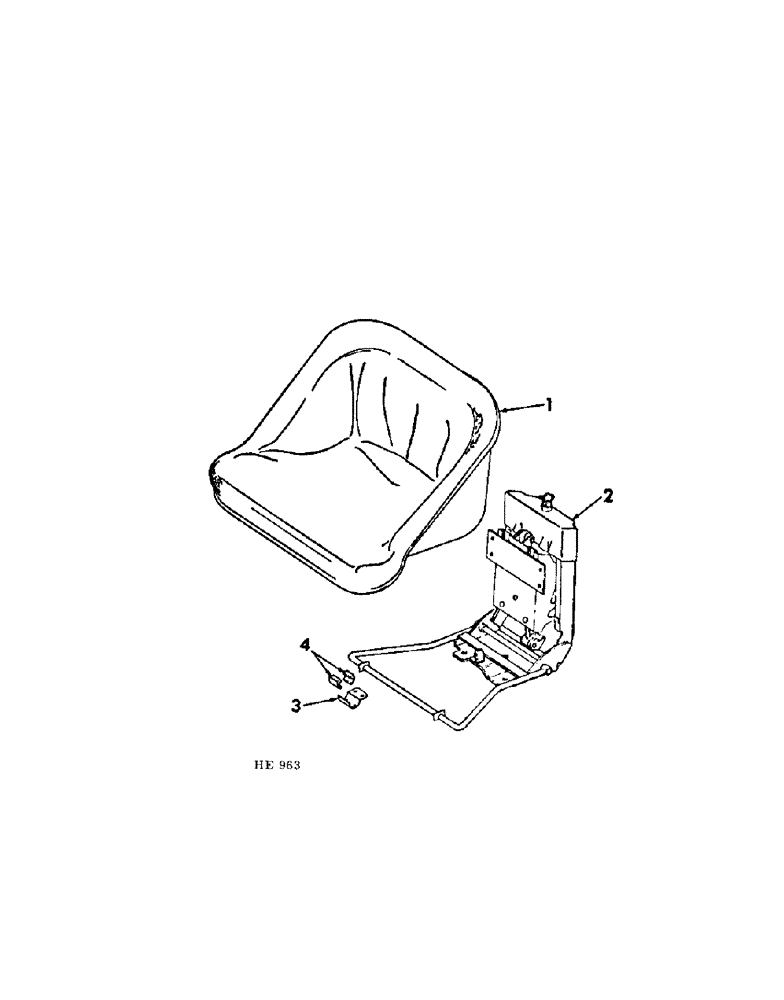

Схема запчастей Case IH 4000 - (13-06[A]) - SUPERSTRUCTURE, OPERATORS SEAT BOSTRUM (05) - SUPERSTRUCTURE

Артикул

Название

Примечание

Количество

1

825202C91

SEAT ASSY, operators

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

825201C91

SUSPENSION ASSY, seat, For service parts refer to operators seat suspension

1шт.

3

825204C1

RETAINER

CLIP, bearing retainer

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

4

825203C1

BUSHING

BEARING, seat retainer half

4шт.

Выбрано товаров: 8
