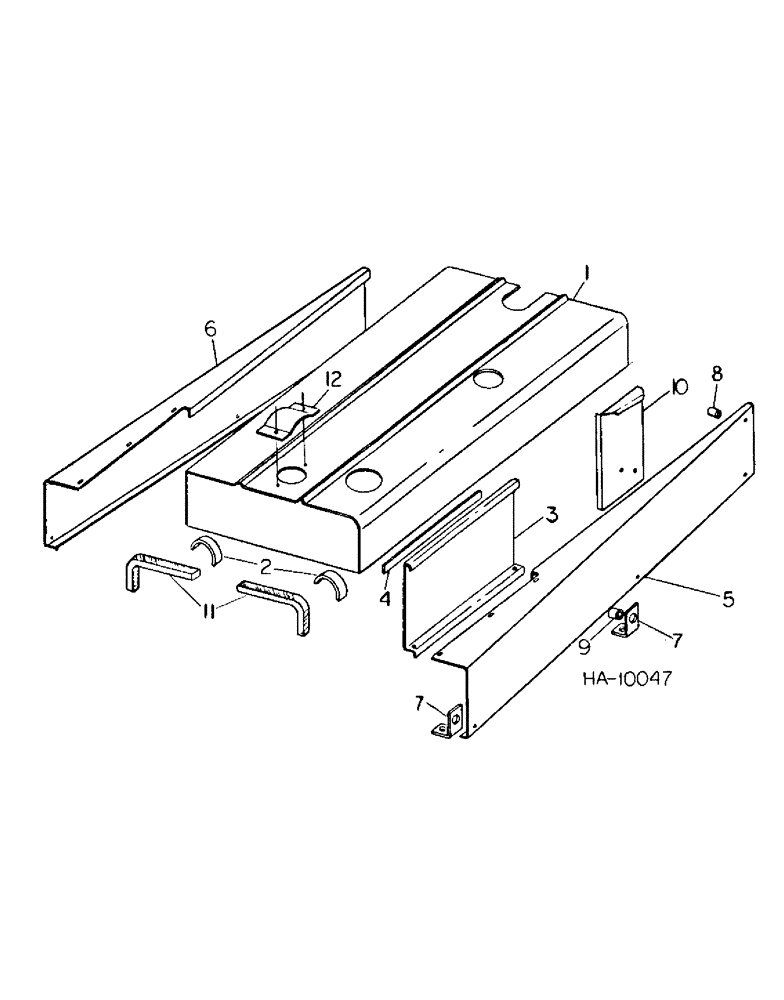

Запчасти Case IH 4000 (13-05) - SUPERSTRUCTURE, ENGINE HOOD AND SHIELDS (05) - SUPERSTRUCTURE

1

823170C92

HOOD

ASSY, engine, Includes reference no. 2, 11 and 1-132535C1 caution product graphic

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16-18 x 1/2 hex hd flange lock

6шт.

850677C1

SCREW,Hex Wash Hd, 5/16"-18 x 1/2"

5/16-18 x 1/2 taptite

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 hex flange lock

6шт.

2

828506C1

PAD

hood

2шт.

3

824160C91

PANEL

ASSY, hood clamping, Includes 1-829978C1 pad and 1-830184C1 caution product graphic

2шт.

831228C1

BOLT, 5/16-18 x 2 hex-hd

4шт.

120376

NUT,5/16"-18, G5

8шт.

9413952

LOCK NUT,5/16"-18, GB

NUT, 5/16-18 prevailing torque

4шт.

134238R1

WASHER

.344 x 1.000 x .056

4шт.

4

829978C1

PAD

clamping panel

2шт.

5

828892C1

SHIELD

engine side LH

1шт.

6

828893C1

SHIELD

engine side RH

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16-18 x 3/4 hex hd flange lock

10шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16-18 x 1-1/2 hex hd

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex hd

2шт.

120376

NUT,5/16"-18, G5

14шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

14шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

134238R1

WASHER

.344 x 1.000 x .054

4шт.

7

828903C2

ANGLE

side shield support

4шт.

8

28450H

SPACER,1/4" Pipe x 7/8"

side shield

4шт.

9

22586N

SPACER,3/8" Pipe x 9/16"

shield center support angle

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

10

830363C1

SHIELD, engine rear LH shown - diesel only

1шт.

10

830864C1

SHIELD

engine rear RH - diesel only

1шт.

830862C1

NUT, 1/4-20

2шт.

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

SCREW, 1/4-20 x 1/2 hex-hd flange lock

4шт.

11

823946C1

PAD

hood front

1шт.

12

NOT USED THIS APPLICATION

1шт.
