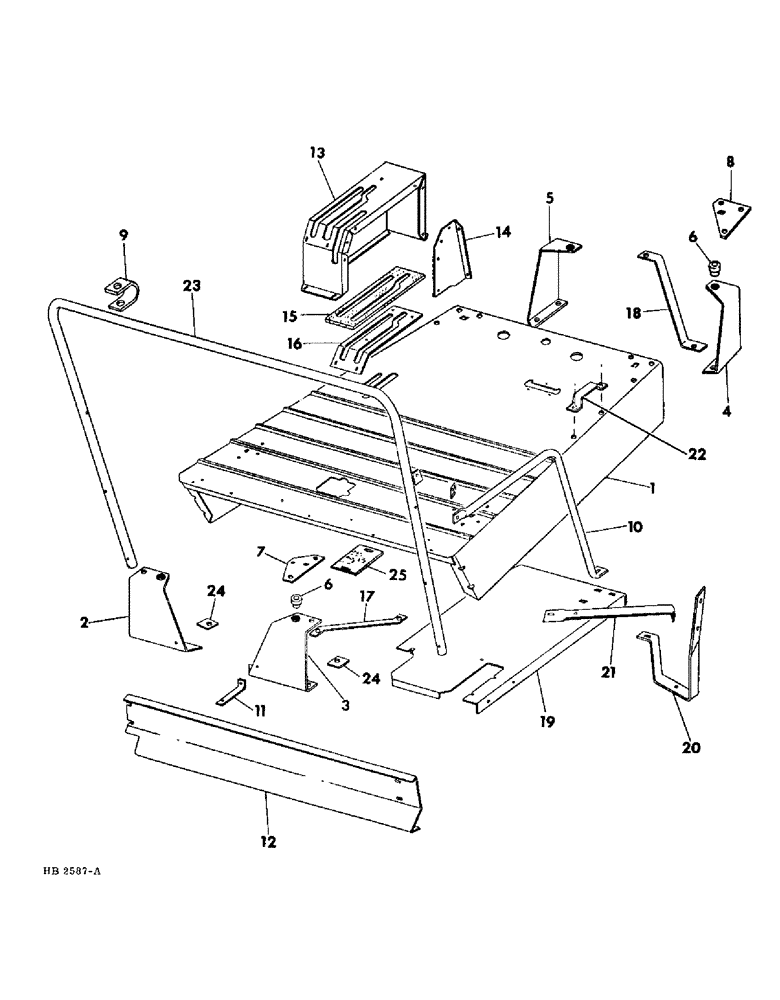

Запчасти Case IH 4000 (13-03) - SUPERSTRUCTURE, OPERATORS DECK (05) - SUPERSTRUCTURE

1

831371C2

DECK ASSY, operators

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

831866C1

SUPPORT

operators deck front RH

1шт.

3

831865C1

SUPPORT

operators deck front LH

1шт.

4

831867C1

SUPPORT

rear LH

1шт.

5

831868C1

SUPPORT

rear RH

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex-hd

6шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 prevailing torque opt w/597670R1 nut

8шт.

597670R1

NUT

1/2-13 prevailing torque opt w/9413967 nut

8шт.

6

830217C1

INSULATOR

platform mounting, For service order 886686C1 insulator

4шт.

6

886686C1

ANCHOR

INSULATOR, platform mounting

4шт.

598816R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

BOLT, 1/2-13 x 3 crg

4шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 prevailing torque opt w/597670R1 nut

4шт.

597670R1

NUT

1/2-13 prevailing torque opt w/9413967 nut

4шт.

22042R1

WASHER

.531 x 2.000 x .105

4шт.

7

831299C1

BAR

deck mounting front

2шт.

8

831305C1

BAR

deck mounting rear

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 crg

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

10шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

10шт.

9

828763C1

CLAMP

head light

2шт.

10

828212C1

RAIL, side guard

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd

1шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5/16-18 x 2 hex-hd

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

134238R1

WASHER

.344 x 1.000 x .054

1шт.

11

831480C1

SUPPORT

front cover panel

2шт.

850677C1

SCREW,Hex Wash Hd, 5/16"-18 x 1/2"

5/16-18 x 1/2 self tapping

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

829083C4

PANEL

front cover

1шт.

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

SCREW, 1/4-20 x 1/2 hex-hd flange lock

4шт.

564791R1

SPRING NUT

1/4-20 speed

4шт.

13

824149C91

CONSOLE ASSY, control, Includes 1-823471C1 caution hillside operation product graphic

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

3/8-16 x 1 hex-hd flange lock

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 hex

4шт.

14

829943C1

COVER, console inner

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

9шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

15

830027C1

SEAL, console

1шт.

16

830029C1

SUPPORT, seal

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

5шт.

20893R1

WASHER

.344 x 1.000 x .105

5шт.

17

831300C3

SUPPORT

operators deck front corner

2шт.

18

831310C1

SUPPORT

operators deck rear corner

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

4шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 prev torque opt w/597670R1 nut

4шт.

597670R1

NUT

1/2-13 prev torque opt w/9413967 nut

4шт.

19

823903C1

STEP

ASSY, operators deck LH, Replaces 828980C2

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

850677C1

SCREW,Hex Wash Hd, 5/16"-18 x 1/2"

5/16-18 x 1/2 self tap

2шт.

20

831240C1

FRAME

ladder

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

21

831241C1

SUPPORT

ladder top step

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20803R1

WASHER

.406 x 1.000 x .105

1шт.

22

591841R1

STRIP

HANDLE, operators grab, Not for use with cab

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

23

828210C2

RAIL

front guard, Not for use with cab

1шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

5/16-18 x 1-3/4 hex-hd

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

24

832056C1

BAR

reinforcing

4шт.

25

832435C1

BAR

air conditioner hose cover, For use on 4000 Windrower serial no. 3250 and since, For use on 5000 Windrower serial no. 1350 and since

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

134238R1

WASHER

.344 x 1.000 x .054

2шт.
