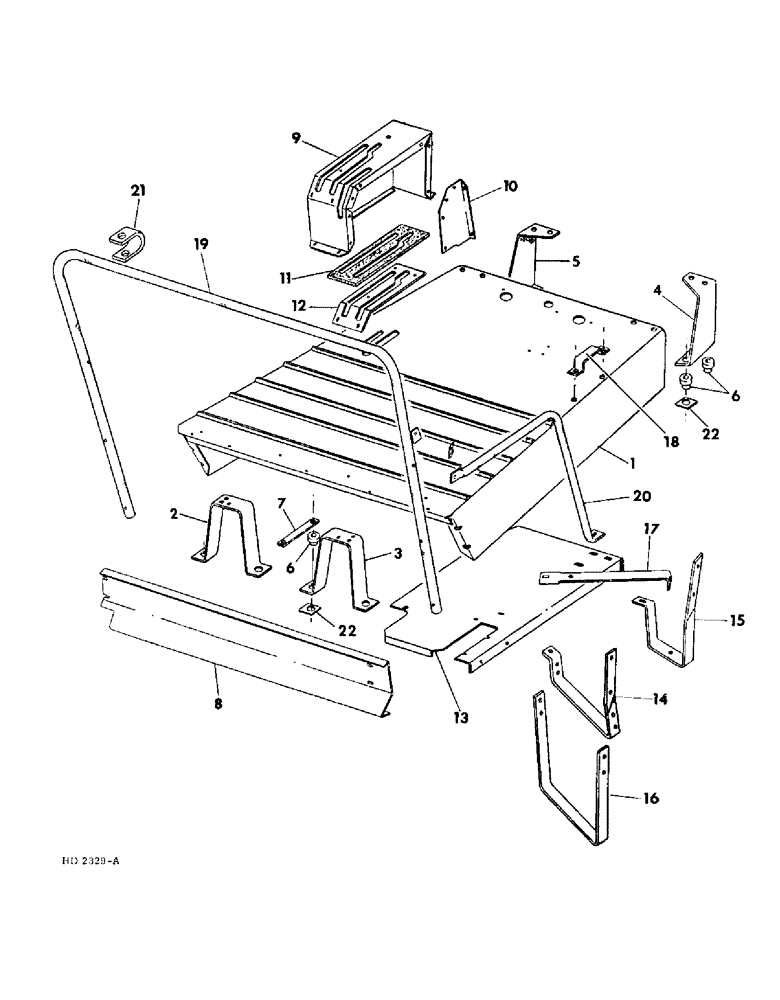

Запчасти Case IH 4000 (13-01) - SUPERSTRUCTURE, OPERATORS DECK (05) - SUPERSTRUCTURE

1

828192C1

DECK ASSY, operators, For service order 1-831371C2 deck assy

1шт.

2

830772C1

SUPPORT, deck front RH with welded bars, For service order 1-828199C1 support and 2-830768C1 bars

1шт.

2

828199C1

SUPPORT, deck front RH w/o welded bars

1шт.

3

830771C1

SUPPORT, deck front LH with welded bars, For service order 1-828198C1 support and 2-830768C1 bars

1шт.

3

828198C1

SUPPORT, deck front LH w/o welded bars

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2-13 x 2-1/2 hex-hd

4шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2-13 x 1 crg

6шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 prevailing torque opt w/597670R1 nut

8шт.

597670R1

NUT

1/2-13 prevailing torque opt w/9413967 nut

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

460908R1

WASHER

.531 x 1.500 x .105

4шт.

4

830769C1

SUPPORT, rear LH w/welded bars, For service order 1-828200C1 support and 2-830768C1 bars

1шт.

4

828200C1

SUPPORT, rear LH w/o welded bars

1шт.

5

830770C1

SUPPORT, rear RH with welded bars, For service order 1-828201C1 support and 2-830768C1 bars

1шт.

5

828201C1

SUPPORT, rear RH w/o welded bars

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2-13 x 2-1/2 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

460908R1

WASHER

.531 x 1.500 x .105

4шт.

607895R1

WASHER

.531 x 1.000 x .105

4шт.

6

400159R1

BUMPER

PAD, deck mounting

8шт.

7

830093C1

BAR, front cover panel reinforcing

2шт.

850677C1

SCREW,Hex Wash Hd, 5/16"-18 x 1/2"

5/16-18 x 1/2 taptite

2шт.

8

829083C4

PANEL

front cover

1шт.

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

SCREW, 1/4-20 x 1/2 hex hd flange lock

4шт.

564791R1

SPRING NUT

1/4-20 speed

4шт.

9

824149C91

CONSOLE ASSY, control, Includes 1-823471C1 caution hillside operation product graphic

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

3/8-16 x 1 hex hd flange lock

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 hex

4шт.

10

829943C1

COVER, console inner

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

9шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

11

830027C1

SEAL, console

1шт.

12

830029C1

SUPPORT, seal

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

5шт.

20893R1

WASHER

.344 x 1.000 x .105

5шт.

13

823903C1

STEP

ASSY, operators deck LH, Replaces 828980C2

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 carriage

4шт.

850677C1

SCREW,Hex Wash Hd, 5/16"-18 x 1/2"

5/16-18 x 1/2 taptite

2шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

14

828581C1

FRAME

ladder, For service order 1-831240C1 frame and 1-831241C1 support

1шт.

15

831240C1

FRAME

ladder, For use w/831241C1 support

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex hd

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex hd

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

20803R1

WASHER

.406 x 1.000 x .105

1шт.

16

828214C1

CHANNEL

ladder, For service order 1-831240C1 frame & 1-831241C1 support

1шт.

17

828241C1

SUPPORT, ladder, For use w/831240C1 frame

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

18

591841R1

STRIP

HANDLE, operators grab

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 carriage

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

19

828210C2

RAIL

front guard, Not for use w/cab

1шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

5/16-18 x 1-3/4 hex hd

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

20

828212C1

RAIL, side guard, Not for use w/cab

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex hd

1шт.

180087

SPRING

5/16-18 x 2 hex hd

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

134238R1

WASHER

.344 x 1.000 x .054

1шт.

21

828763C1

CLAMP

head light, Not for use w/cab

2шт.

22

830768C1

BAR, reinforcing

8шт.
