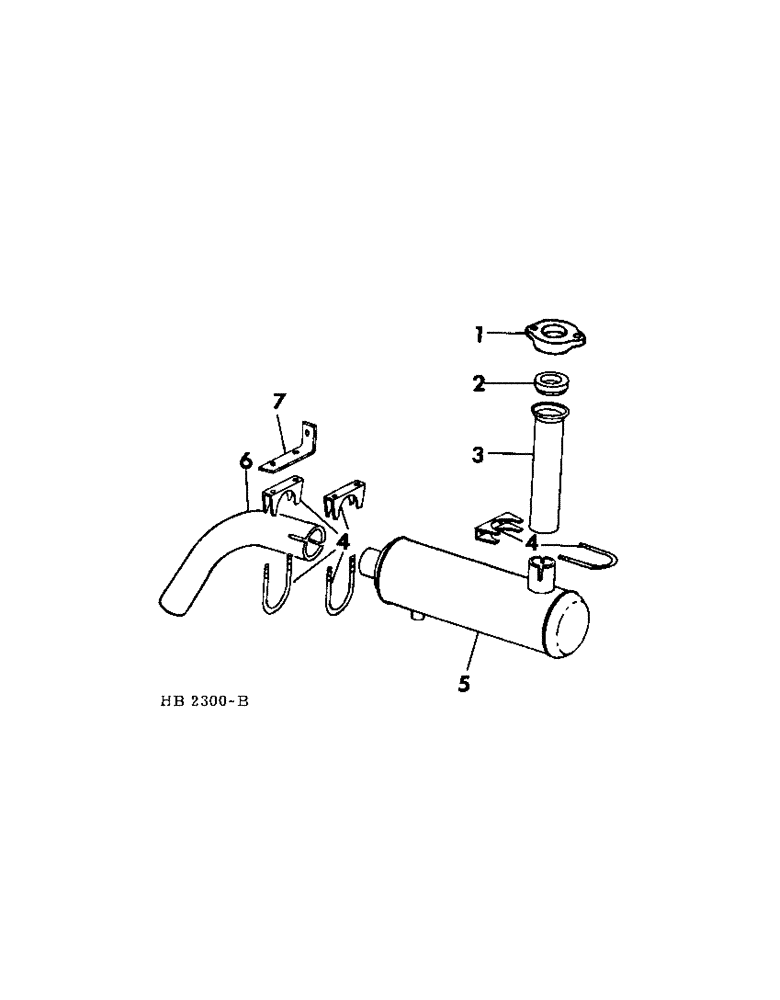

Запчасти Case IH 4000 (12-45) - POWER, EXHAUST MUFFLER AND CONNECTIONS C-232 GAS ENGINE, FOR USE ON 4000 WINDROWERS Power

1

386115C1

FLANGE

exhaust pipe

1шт.

2

386114C2

PACKING RING

SEAL, exhaust pipe

1шт.

3

827857C1

PIPE

exhaust

1шт.

120903H

LOCK NUT

NUT, 3/8-24 hex lock

2шт.

4

823783C1

CLAMP

ASSY, exhaust

3шт.

5

829176C91

MUFFLER

exhaust, Includes 1-444578 plug

1шт.

444578

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF, Brass

PLUG, 1/4 npt sq hd brass

1шт.

6

830221C1

PIPE

tail

1шт.

7

830700C1

SUPPORT

tail pipe clamp

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.
