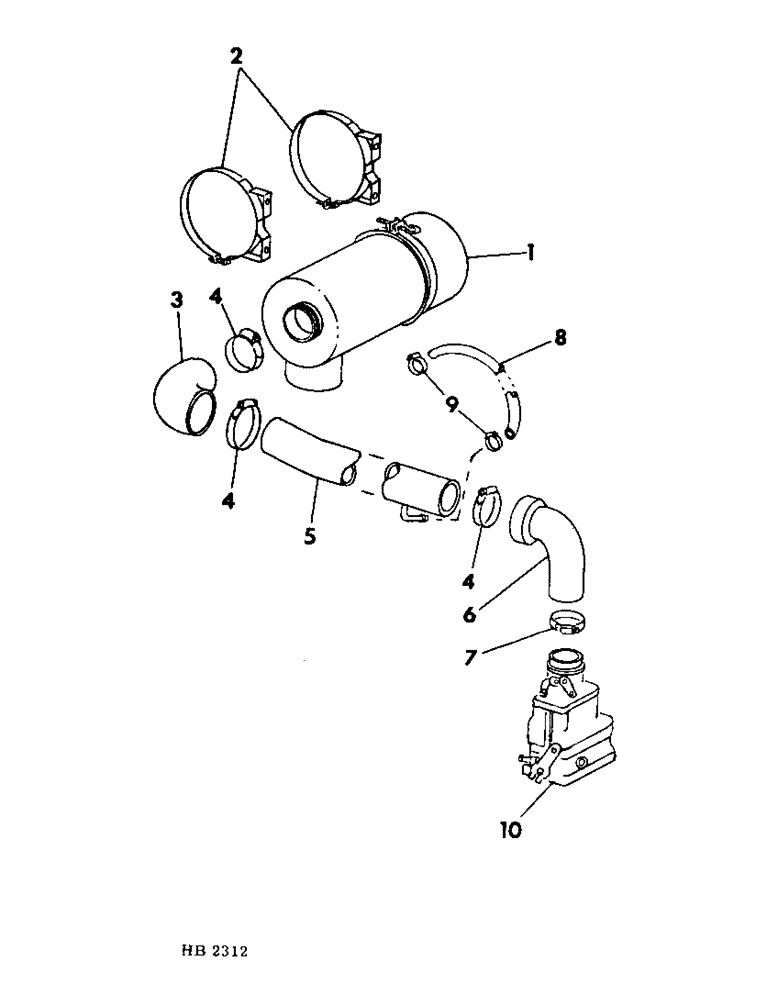

Запчасти Case IH 4000 (12-43) - POWER, AIR CLEANER AND CONNECTIONS C-232 GAS ENGINE, FOR USE ON 4000 WINDROWERS Power

1

828624C91

CLEANER

ASSY, air dry type, For service order 1-831888C92 air cleaner

1шт.

1

831888C92

CLEANER

ASSY, air dry type, For service parts refer to air cleaner

1шт.

2

103760H1

CLAMP

air cleaner

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

469668R1

WASHER

.406 x .750 x .054

4шт.

20803R1

WASHER

.406 x 1.000 x .105

2шт.

3

827876C1

INTAKE AIR HOSE,2.50" ID x 5.00", SAE 20R4 CLASS SC OR SAE 20R4 CLASS R

HOSE, air cleaner to tube

1шт.

4

279029R91

HOSE CLAMP,#48, 2.56/3.50 Type F Worm

CLAMP, hose

3шт.

5

827860C1

TUBE

ASSY, air, Serial Range: cleaner-carb

1шт.

6

827872C1

INTAKE AIR HOSE,2.25" ID, 2.50" ID x 4.50", SAE 20R4 CLASS SC OR SAE 20R4 CLASS R

HOSE, carb to air cleaner tube

1шт.

7

279028R91

HOSE CLAMP,#40, 2.06/3.00 Type F Worm

CLAMP, hose carb end

1шт.

8

827856C1

HOSE

valve cover pan vent

1шт.

9

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, hose

2шт.

10

827052C92

CARBURETOR

ASSY, For service order 1-831914C91 carburetor assy

1шт.

10

831914C91

CARBURETOR

ASSY, For service parts, Serial Range: refer-carburetor

1шт.
