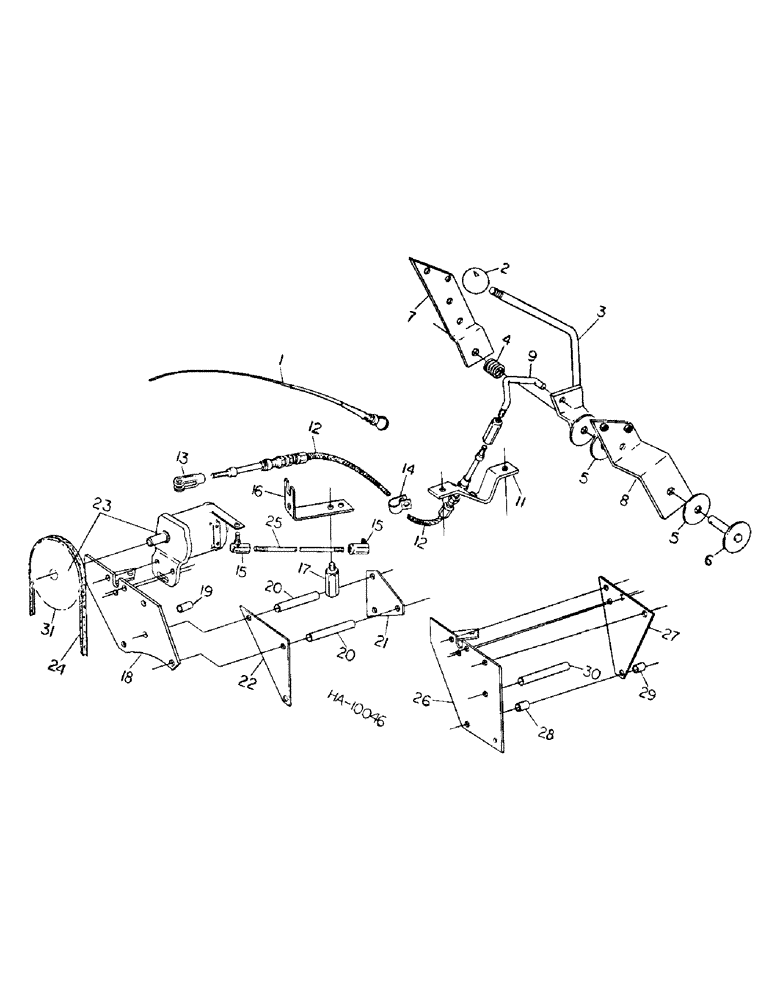

Запчасти Case IH 4000 (12-38) - POWER, POWER CONTROLS C-232 ENGINE, FOR USE ON 4000 WINDROWERS Power

1

830218C2

CABLE

ASSY, choke w/nut - 114 in length, For use w/827052C92 carburetor

1шт.

1

832043C2

CABLE

ASSY, choke w/nut - 88.5 in length, For use w/831914C91 carburetor

1шт.

2

610638R1

KNOB

throttle control rod

1шт.

3

828463C2

LEVER

ASSY, throttle control

1шт.

4

M1015

SPRING

friction

1шт.

5

58666D

FRICTION WASHER

WASHER, friction

2шт.

6

928908C1

SHAFT ASSY, throttle lever pivot

1шт.

178374R1

WASHER

.531 x 1.250 x .054

1шт.

19442R1

PIN,3/16" x 1 1/2", Coiled

1шт.

7

828866C2

SUPPORT

throttle lever & shaft inner

1шт.

8

823623C1

SUPPORT

ASSY, throttle lever & shaft outer, Replaces 829957C1

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex hd

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

9

828864C1

ROD

throttle cable adj

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

10

828907C1

TURNBUCKLE

throttle control

1шт.

11

828662C1

SUPPORT

throttle cable

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 hex hd

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 hex flange lock

2шт.

12

597843R1

CABLE

throttle

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

13

110322

CLEVIS, #10 adj rod end

1шт.

138082

CLEVIS PIN,3/16" x .580"

PIN, 3/16 x 19/32 rod end

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 cotter

1шт.

14

850218C1

CLAMP

throttle cable

1шт.

15

304164R91

JOINT

1/4 ball type S

2шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4-28 hex

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

16

827097C2

SUPPORT

throttle cable

1шт.

17

827098C1

STUD

throttle control cable

1шт.

LEC271506

SHIM

7/16-20 hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

18

829643C1

SUPPORT ASSY, governor prior to serial no. 2701

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8-16 x 2 hex hd

1шт.

20506R1

BOLT,Hex, 3/8" - 16 x 6", Gr 5

3/8-16 x 6 hex hd

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

NLS

NO LONGER SERVICED

7/16-20 hex

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

19

M77214

SPACER, water pump housing prior to serial no. 2701

1шт.

20

956396R1

SPACER, governor support to serial no. 2701

1шт.

21

829622C1

BAR

alternator mounting prior to serial no. 2701

1шт.

22

831802C1

BAR, alternator brace prior to serial no. 2701

1шт.

23

829630C92

GOVERNOR

ASSY, Hoof, Optional w/827369C92 governor

1шт.

23

827369C92

GOVERNOR

ASSY, Pierce, Optional w/829630C92 governor

1шт.

24

829627C1

V-BELT,0.38" W x 54.00" L

Governor 0.38" W x 54.00" L

1шт.

25

827039C2

ROD

throttle control

1шт.

26

831828C1

SUPPORT

ASSY, governor serial no. 2701 and since

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8-16 x 2 hex-hd

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 x 1-1/2 hex-hd

2шт.

20506R1

BOLT,Hex, 3/8" - 16 x 6", Gr 5

3/8-16 x 6 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

477589R1

WASHER

.406 x 1.500 x .105

2шт.

22264R1

WASHER

.406 x 1.000 x .164

1шт.

27

831819C1

BAR

governor support reinforcing serial no. 2701 and since

1шт.

28

872534R1

SPACER,1/2" Pipe x 3/8"

governor mounting, For use w/829630C91 governor

1шт.

28

HA4457

SPACER

governor mounting, For use w/827369C91 governor serial no. 2701 and since

1шт.

29

872534R1

SPACER,1/2" Pipe x 3/8"

governor mounting, For use w/827369C91 governor

1шт.

29

HA4457

SPACER

governor mounting, For use w/829630C91 governor serial no. 2701 and since

1шт.

30

512690R1

SPACER,1/2" Pipe x 4 3/4"

intake manifold serial no. 2701 and since

1шт.

31

829644C2

PULLEY

governor drive - Hoof

1шт.

31

827293C2

PULLEY

governor drive - Pierce

1шт.
