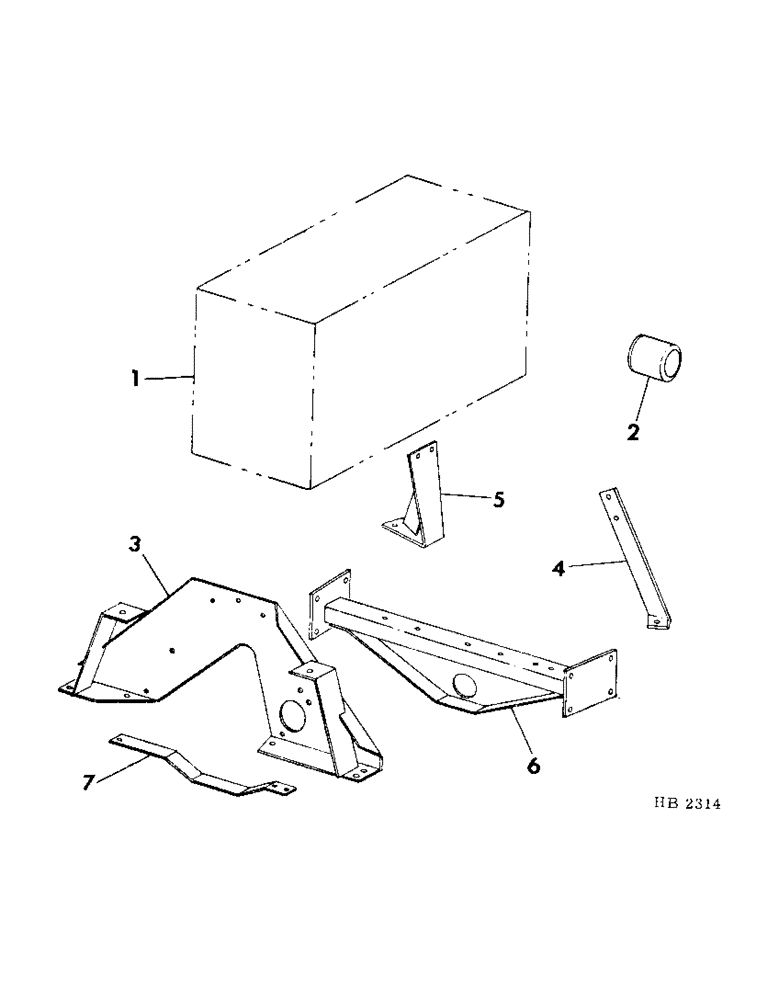

Запчасти Case IH 4000 (12-28) - POWER, ENGINE AND MOUNTING C-232 ENGINE, FOR USE ON 4000 WINDROWERS Power

1

830734C92

ENGINE ASSEMBLY

ENGINE ASSY, C-232 gasoline prior to serial no. 2701, For service order 1-827488C91 engine and 1-827490C1 harness

1шт.

1

827488C91

ENGINE ASSEMBLY

ENGINE ASSY, C-232 gasoline serial no. 2701 and since, For service parts refer to C-232 Gas Engine

1шт.

2

384843C2

FILTER, ELEMENT

FILTER, engine oil

1шт.

3

827863C3

SUPPORT

ASSY, engine front

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex hd

3шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

BOLT, 7/16-14 x 1-1/2 hex hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

47603H

WASHER, .622 x .840 x .250

2шт.

893862R1

WASHER

.469 x 1.250 x .105

2шт.

4

827859C1

SUPPORT, engine rear LH

1шт.

5

828299C1

SUPPORT, engine rear RH

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex hd

3шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

2шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8-16 x 3 hex-hd

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

20803R1

WASHER

.406 x 1.000 x .105

2шт.

6

828783C2

BASE

ASSY, engine rear support

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

8шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 hex serrated flange

8шт.

7

828794C1

GUARD, flywheel

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
