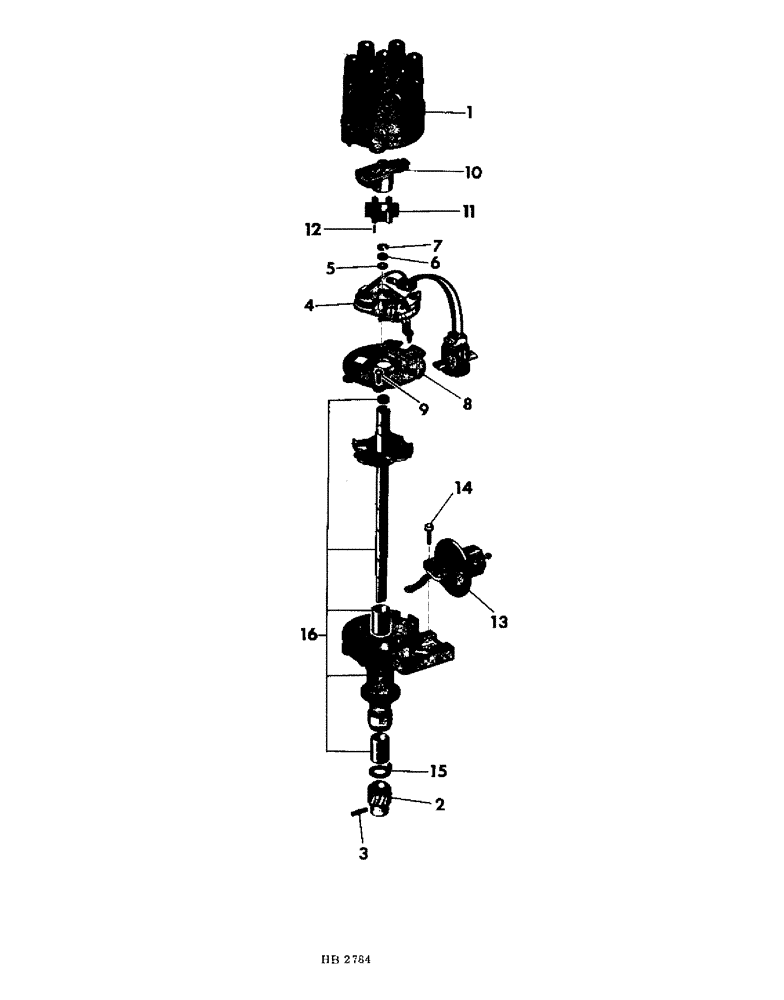

Запчасти Case IH 4000 (12-13) - POWER, C-232 GAS ENGINE DISTRIBUTOR, MOTORCRAFT Power

827497C91

DISTRIBUTOR

L/cap and rotor no. D8FE12127EA, Consists of

1шт.

1

832223C1

CAP

ASSY, Not part of distributor assy

1шт.

2

832224C1

GEAR

distributor

1шт.

3

17145R1

LOCK PIN,3/16" x 3/4", Slotted

PIN, 3/16" x 3/4", Slotted

1шт.

4

832226C1

SENSOR

ASSY

1шт.

5

832227C1

WASHER

wave

1шт.

6

120391

WASHER,#10

.219 x .500 x .036

1шт.

7

626907R1

RING,#18, Ext

Snap, , sensor plate #18, Ext

1шт.

8

832230C1

PLATE

sensor mounting

1шт.

9

27169R1

SCREW,Cross Oval Hd, #8-32 x 5/8"

#8-23 x 5/8 cr rec oval hd

2шт.

10

832232C1

ROTOR

Not part of distributor assy

1шт.

11

832233C1

WHEEL

trigger, armature

1шт.

12

19792R1

PIN,3/32" x 3/8", Slotted

3/32 x 3/4 sltd spring

1шт.

13

832235C1

CONTROL

vacuum

1шт.

14

25459R1

SCREW, #8-32 x 3/4 hex-hd

1шт.

15

832237C1

WASHER

gear thrust

1шт.

16

HOUSING W/SHAFT & SPACERS, Not serviced separately order 827497C91 distributor assy

1шт.
