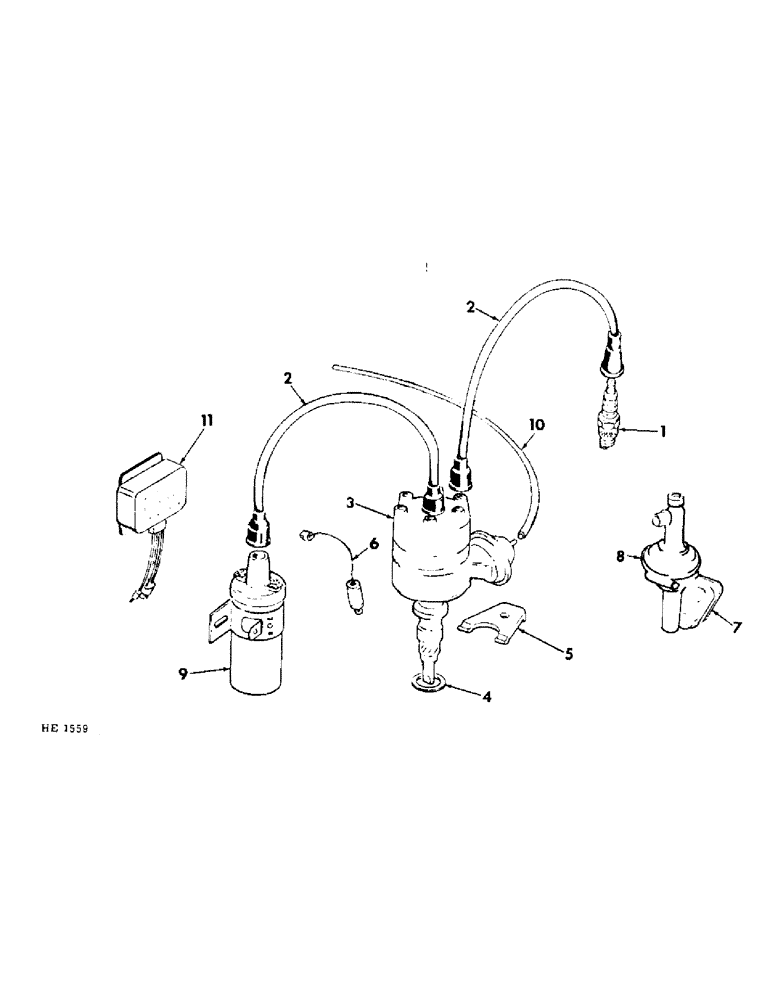

Запчасти Case IH 4000 (12-09) - POWER, C-232 GAS ENGINE IGNITION UNIT PRIOR TO MACHINE SERIAL NUMBER 2701 Power

1

RN12Y

SPARK PLUG

PLUG, spark champion

6шт.

2

827380C1

SET

ignition wire

1шт.

3

1110528

DISTRIBUTOR, Delco Remy 827586C91, For use with breaker type ignition used on 4000 Windrower machine serial no., Serial Range: 501-999

1шт.

3

827446C91

DISTRIBUTOR

ASSY, engine - Prestolite no. IDJ4002-E, For use with electronic type ignition, For use on 4000 Windrower machine starting at machine serial no. 1000 with crankcase casting no. 3224098

1шт.

3

827480C91

DISTRIBUTOR ASSY, engine - Prestolite no. IDJ4002-G, For use with electronic type ignition, For use on 4000 Windrower machine with crankcase casting no. 3227445 prior to 1978 season and machine serial no. 2701, For service parts, Serial Range: refer-distributor

1шт.

4

387082C1

GASKET

distributor

1шт.

5

387081C1

CLAMP, distributor

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 hex-hd

1шт.

6

827590C1

RESISTOR

CAPACITOR

1шт.

7

384851C1

GASKET

fuel pump

1шт.

8

827274C2

PUMP

fuel

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 hex-hd

2шт.

9

191455R91

SPOOL

COIL, 12 volt ignition, For use w/breaker type ignition used on 4000 Windrower machine serial no., Serial Range: 501-999

1шт.

9

827447C91

COIL ASSY.

COIL ASSY, ignition w/bracket, For use with electronic type ignition, For use on 4000 Windrower machine serial no. 1000 to 2700, For service parts refer to ignition coil section 8

1шт.

323887C1

SCREW

BOLT, coil mounting

2шт.

10

HOSE, vacuum advance & retard 28 inch length, For service order from bulk stock no. 990016C1

1шт.

11

827448C1

BOX

UNIT, electronic ignition, For use w/electronic type ignition, For use on 4000 Windrower machine serial no., Serial Range: 1000-2700

1шт.
