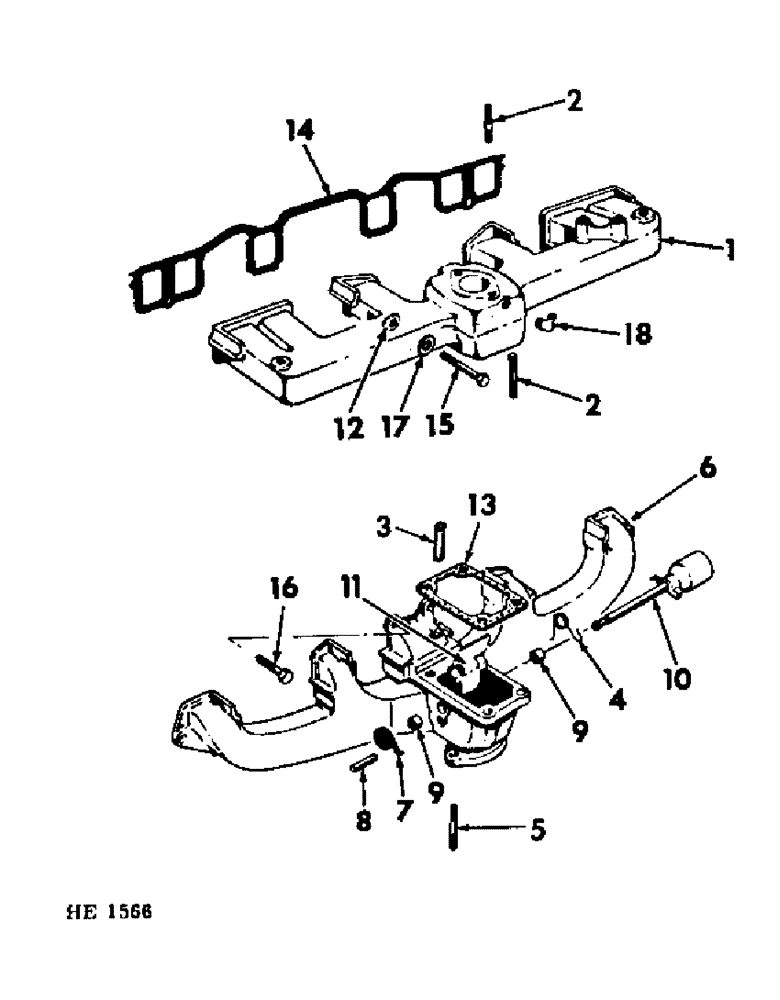

Запчасти Case IH 4000 (12-07) - POWER, C-232 GAS ENGINE MANIFOLDS Power

1

827382C91

MANIFOLD

ASSY, intake w/studs, Consists of

1шт.

387138C1

STUD

4шт.

NSS

NOT SOLD SEPARAT

MANIFOLD

1шт.

2

387138C1

STUD

exhaust manifold to intake manifold

6шт.

387131C1

NUT

stud

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

3

387142C2

TUBE,0.26" ID, 0.367" OD, 6.25" Length

choke heater exhaust manifold

1шт.

4

SPRING, For service order 1-827384C91 kit

1шт.

5

387113C1

STUD

exhaust, Serial Range: pipe-manifold

1шт.

6

827383C91

MANIFOLD

ASSY, exhaust, Consists of

1шт.

387138C1

STUD

2шт.

827384C91

KIT

1шт.

NSS

NOT SOLD SEPARAT

MANIFOLD

1шт.

7

387145C1

SPRING, part of 827384C91 kit

1шт.

8

PIN, For service order 1-827384 kit

1шт.

9

BUSHING, For service order 1-827384C91 kit

2шт.

10

HEAT RISER, For service order 1-827384C91 kit

1шт.

11

DAMPER W/SCREW, For service order 1-827384C91 kit

1шт.

12

387128C1

CLAMP, int & exh, Serial Range: manifold-hd

8шт.

13

387140C1

GASKET

intake to exhaust man.

1шт.

There is no exhaust manifold gasket used.

1шт.

14

387125C1

MANIFOLD GASKET

intake, Serial Range: manifold-head

1шт.

15

387126C1

BOLT,Hex, 3/8" - 16 x 2.50", HT

SCREW, int & exh, Serial Range: man.-head

8шт.

16

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

Exhaust manifold to cyl head Hex, 3/8"-16 x 1 1/4", G8, Full Thd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

17

387129C1

WASHER, int & exh, Serial Range: manifold-hd

4шт.

18

827277C1

FITTING, intake manifold

1шт.

827384C91

KIT

heat riser, Consists of items 4, 7, 8, 9, 10 & 11

1шт.
