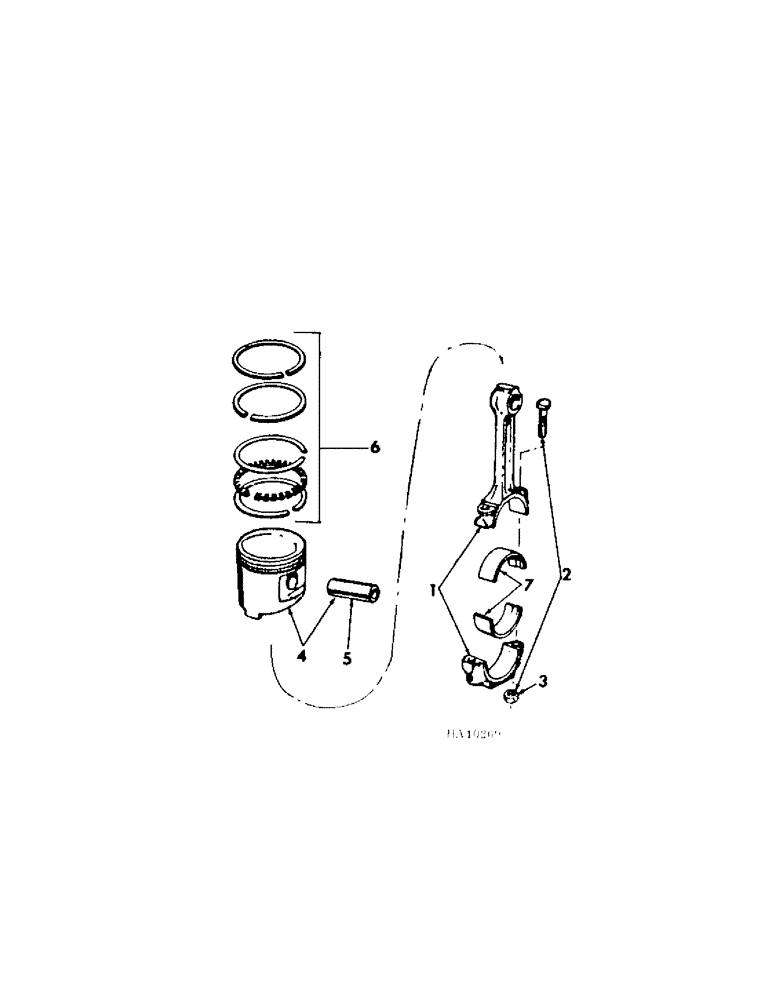

Запчасти Case IH 4000 (12-05) - POWER, C-232 GAS ENGINE CONNECTING RODS AND PISTONS Power

1

827660C91

ROD

ASSY, conn. w/cap & bolt, Consists of (Replaces 421223C91)

6шт.

NSS

NOT SOLD SEPARAT

ROD

1шт.

NSS

NOT SOLD SEPARAT

CAP

1шт.

387047C91

KIT

2шт.

2

387047C91

KIT, conn. rod cap bolt w/nut

12шт.

3

387048C1

NUT, conn. rod cap bolt

12шт.

4

827660C91

ROD

PISTON W/PIN, std, For engine with crankcase casting no. 3224098 (Replaces 421224C91)

6шт.

4

827475C91

PISTON

W/PIN, std, For engine with crankcase casting no. 3227445

6шт.

4

421225C91

PISTON W/PIN, .010, For engine with crankcase casting no. 3224098

6шт.

4

827476C91

PISTON W/PIN, .010, For engine with crankcase casting no. 3227445

6шт.

5

387053C1

SET, piston pin - std

1шт.

5

387054C1

SET, piston pin - .003

1шт.

5

387055C1

SET, piston pin - .005

1шт.

6

387058C92

PISTON RING SET

SET, one piston ring - std

6шт.

6

387059C92

PISTON RING SET

SET, one piston ring - .020

6шт.

7

387040C2

CRANKSHAFT BEARING

connecting rod upper & lower std

6шт.

7

387041C2

BEARING

connecting rod upper & lower .010

6шт.

7

387043C91

SET, connecting rod bearing - std, Includes 6-387040C2 bearings

1шт.
