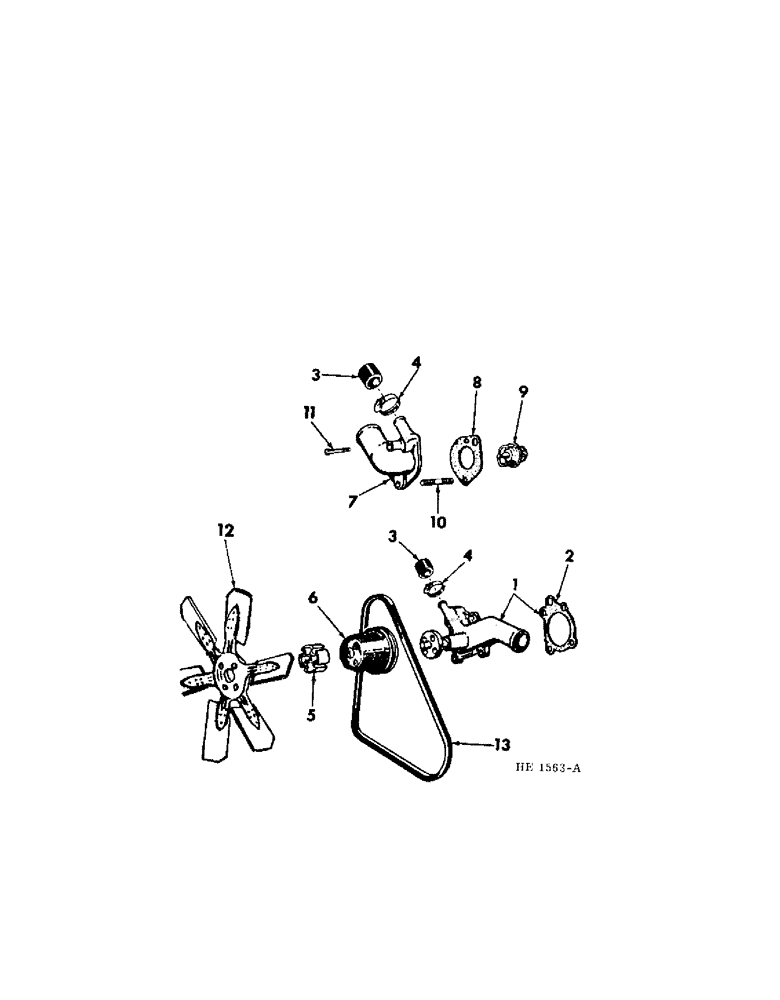

Запчасти Case IH 4000 (12-05[A]) - POWER, C-232 GAS ENGINE FAN AND WATER PUMP Power

1

470545C91

PUMP

ASSY, water w/gasket, Includes 1-387039C1 gasket

1шт.

180080

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd

5/16-18 x 1-1/8 hex-hd

2шт.

180085

SPRING

5/16-18 x 1-3/4 hex-hd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

387039C1

GASKET

water pump hsg

1шт.

3

389859C1

PLUG

CAP, water pump nipple and thermostat housing

2шт.

4

333710R91

HOSE CLAMP,#16, 0.81/1.50 Type F Worm

SWITCH MOUNTING, cap

2шт.

5

388350C1

SPACER

fan mounting

1шт.

6

827375C1

PULLEY

fan

1шт.

7

470546C1

HOUSING, thermostat

1шт.

8

386526C1

GASKET

thermostat housing

1шт.

9

827499C91

KIT

THERMOSTAT, 160 deg w/gasket

1шт.

10

387256C1

STUD, thermostat housing short

1шт.

120368

NUT,5/16"-24, G5

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

2шт.

11

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16 x 1-1/2 hex hd

1шт.

12

FAN, radiator, For service parts refer to section no. 6

1шт.

13

BELT, fan, For service parts refer to section no. 6

1шт.
