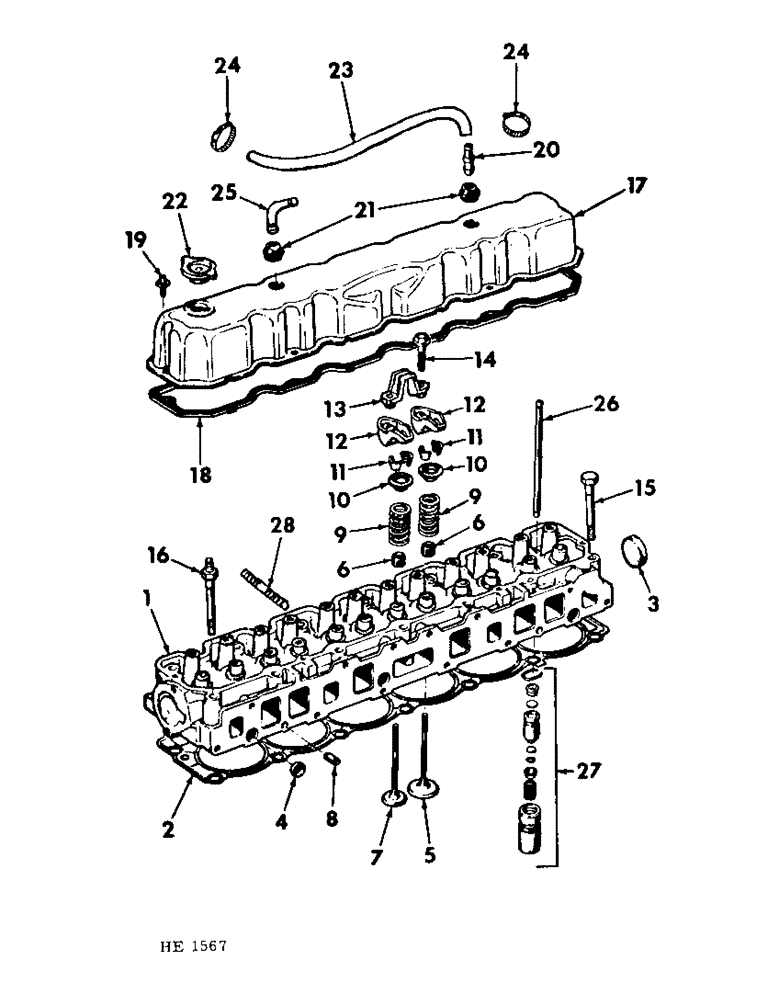

Запчасти Case IH 4000 (12-04) - POWER, C-232 GAS ENGINE CYLINDER HEAD AND VALVES Power

1

468955C91

HEAD W/VALVES, cylinder with crankcase casting no. 3224098, Consists of

1шт.

NSS

NOT SOLD SEPARAT

HEAD

1шт.

387012C1

PLUG

1шт.

387094C1

PLUG

3шт.

444829C1

VALVE

6шт.

445370C1

SEAL

DEFLECTOR

12шт.

444826C1

VALVE

6шт.

387110C1

PIN

2шт.

387105C1

SPRING

12шт.

458312C1

RETAINER

12шт.

387109C1

LOCK

24шт.

387130C1

STUD

2шт.

1

827478C91

HEAD

ASSY, cylinder with crankcase casting no. 3227445, Consists of

1шт.

NSS

NOT SOLD SEPARAT

HEAD

1шт.

387012C1

PLUG

1шт.

387094C1

PLUG

3шт.

2

387096C1

GASKET

cylinder head

1шт.

3

387012C1

PLUG

core 2 inch dia

1шт.

4

387094C1

PLUG, core 7/8 inch dia

3шт.

5

444829C1

VALVE

intake - std

6шт.

5

444830C1

VALVE, intake - .003

6шт.

5

444831C1

VALVE, intake - .015

6шт.

5

451211C1

VALVE, intake - .030

6шт.

6

445370C1

SEAL

DEFLECTOR, valve stem oil

12шт.

7

444826C1

VALVE

exhaust - std

6шт.

7

444827C1

VALVE, exhaust - .003

6шт.

7

444828C1

VALVE, exhaust - .015

6шт.

7

451210C1

VALVE, exhaust - .030

6шт.

8

387110C1

PIN, head to manifold dowel

2шт.

9

387105C1

SPRING, valve

12шт.

10

458312C1

RETAINER

valve spring

12шт.

11

387109C1

LOCK, valve spring retainer

24шт.

12

468958C1

ARM

valve rocker

12шт.

13

436165C1

BRACKET

PIVOT, valve rocker arm

6шт.

14

436166C1

BOLT

pivot to cylinder hd

12шт.

15

387111C1

BOLT, cylinder head

10шт.

16

387112C1

BOLT, cyl hd w/stud hd

4шт.

17

387147C93

COVER

ASSY, valve rocker arm

1шт.

18

387148C1

GASKET

cover

1шт.

19

827581C1

SCREW & WASHER, cover

2шт.

19

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

1/4-20 x 1/2 flanged hex

7шт.

20

827331C1

VALVE

cylinder block vent

1шт.

21

387150C1

GROMMET

elbow & vent valve

2шт.

22

387152C1

CAP

oil filler

1шт.

23

827276C2

HOSE

PCV to manifold nipple

1шт.

24

827582C1

CLAMP

hose

2шт.

25

827278C1

ELBOW

cover to air cleaner hose

1шт.

26

436158C1

ROD

push - 9.615 length, For engine with crankcase casting no. 3224098

1шт.

26

827474C1

ROD

push - 9.640 length, For engine with crankcase casting no. 3227445

1шт.

27

433562C1

TAPPET

W/SNAP RING ASSY

12шт.

28

387130C1

STUD

manifold to cylinder head

2шт.
