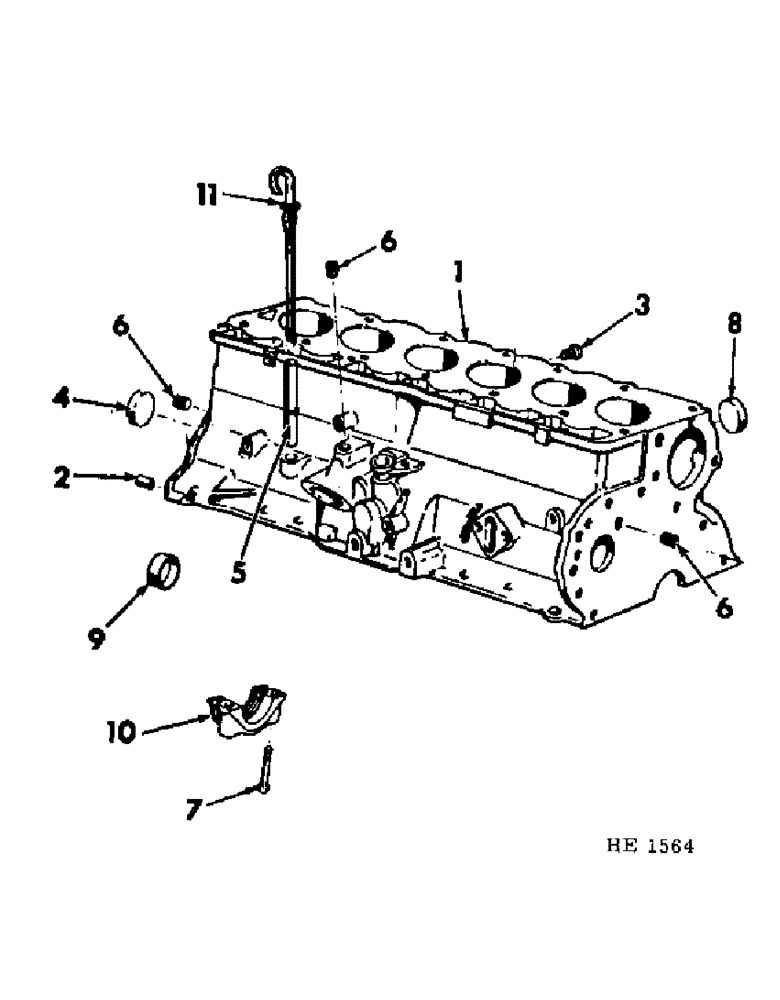

Запчасти Case IH 4000 (12-03) - POWER, C-232 GAS ENGINE CRANKCASE Power

1

470547C91

CRANKCASE ASSY, engine with crankcase casting no. 3224098

1шт.

1

827477C91

CRANKCASE ASSY, engine with crankcase casting no. 3227445, Consists of

1шт.

827376C1

PIN

S

2шт.

444686

PLUG

1шт.

387027C1

PLUG

1шт.

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG

3шт.

387014C1

BOLT

14шт.

387012C1

PLUG

4шт.

NSS

NOT SOLD SEPARAT

CRANKCASE W/CAPS

1шт.

387010C91

BEARING

SET

1шт.

2

827376C1

PIN

DOWEL, rear PTO support

2шт.

3

445686

PLUG

3/8-18 drain

2шт.

4

387027C1

PLUG

camshaft rear bearing

1шт.

5

387023C1

TUBE,.375" OD, 6" Length

oil level dip stick

1шт.

6

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, oil channel & filter by-pass

3шт.

7

387014C1

BOLT, main bearing cap

14шт.

8

387012C1

PLUG

cyl block core hole

4шт.

9

387010C91

BEARING

SET, camshaft bearing - std

1шт.

9

387011C91

SET, camshaft bearing - .010

1шт.

10

CAP, crankcase, Not serviced separately order crankcase assy

7шт.

11

387156C1

GAUGE

INDICATOR, oil level

1шт.
