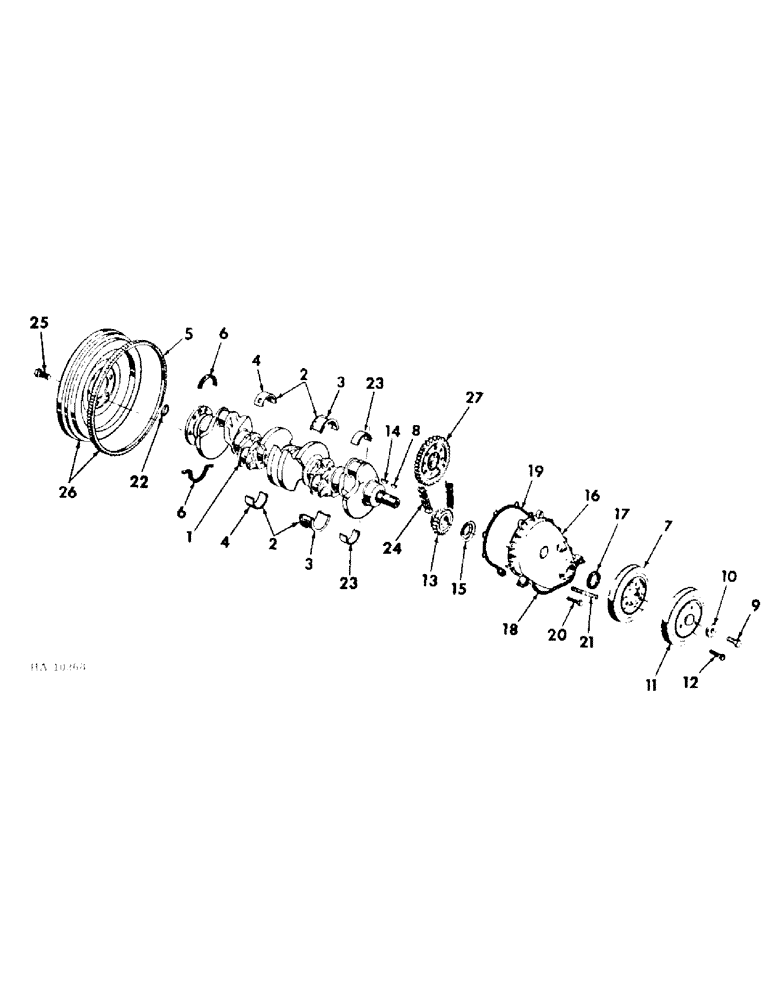

Запчасти Case IH 4000 (12-01) - POWER, C-232 GAS ENGINE CRANKSHAFT FLYWHEEL AND FRONT COVER Power

1

827377C91

CRANKSHAFT W/BEARINGS ASSY, Consists of

1шт.

387019C91

BEARING

SET

1шт.

NSS

NOT SOLD SEPARAT

CRANKSHAFT

1шт.

387043C91

SET

1шт.

2

387019C91

BEARING

SET, main bearing CPTE engine - std, Consists of

1шт.

387018C1

BEARING

SET

1шт.

387017C1

BEARING

SET

6шт.

2

387022C91

SET, main bearing CPTE engine - .010, Consists of

1шт.

387021C1

SET

1шт.

387020C1

SET

6шт.

3

387018C1

BEARING

SET, upper & lower main bearing - std no. 3

1шт.

3

387021C1

SET, upper & lower main bearing - .010 no. 3

1шт.

4

387017C1

BEARING

SET, upper & lower main bearing - std no. 1, 2, 4, 5, 6 & 7

6шт.

4

387020C1

SET, upper & lower main bearing - .010 no. 1, 2, 4, 5, 6 & 7

6шт.

5

433366C1

GEAR

flywheel ring

1шт.

6

387015C1

SEAL

KIT, rear main bearing cap seal

1шт.

7

470551C1

DAMPER, crankshaft vibration

1шт.

8

126-119

WOODRUFF KEY,#11, 3/16" x 7/8", HT

3/16 x 7/8 Woodruff 11

1шт.

9

181698

BOLT,Hex, 1/2" - 20 x 1 1/4", Gr 5

1/2-20 x 1-1/4 damper retaining

1шт.

10

387083C1

WASHER, damper retaining

1шт.

11

829645C1

PULLEY

accessory drive

1шт.

12

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

accessory drive pulley to damper Hex, 5/16"-18 x 1/2", G5, Full Thd

3шт.

13

387029C1

SPROCKET ASSY.

SPROCKET, crankshaft

1шт.

14

124549

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

15

387030C1

SLINGER, crankshaft spr. oil

1шт.

16

470549C91

COVER

W/SEAL, engine front, Includes 1-387036C91 seal

1шт.

17

387036C91

SEAL

engine front cover

1шт.

18

SEAL, oil pan to front cover, For service order 1-421230C91 set

1шт.

19

470548C1

GASKET

front cover

1шт.

20

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

5шт.

20

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

20

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

5/16-18 x 1-3/4 hex-hd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

21

470550C1

STUD, timing case cover

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

22

NOT USED THIS APPLICATION

1шт.

23

387040C2

CRANKSHAFT BEARING

connecting rod upper and lower - std

6шт.

23

387041C2

BEARING

connecting rod upper and lower - .010

6шт.

23

387043C91

SET, connecting rod bearing - std, Includes 6-387040C1 bearing

1шт.

24

387028C1

CHAIN (AG)

CHAIN, timing

1шт.

25

387159C1

BOLT

, Serial Range: flywheel-crankshaft

6шт.

26

827106C91

FLYWHEEL W/RING GEAR, engine, Includes 1-433366C1 gear

1шт.

27

387031C1

SPROCKET ASSY.

SPROCKET, camshaft

1шт.
