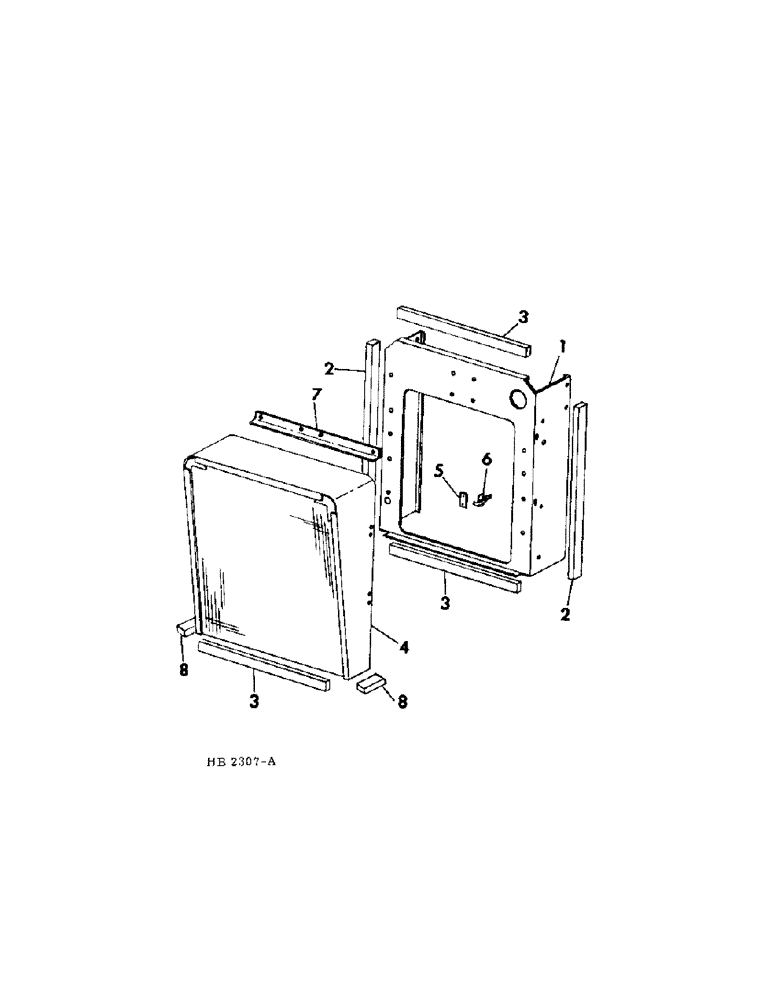

Запчасти Case IH 4000 (06-05) - COOLING, GRILLE SUPPORT AND SCREEN Cooling

1

828233C91

FRAME

ASSY, radiator support, Consists of

1шт.

NSS

NOT SOLD SEPARAT

FRAME

1шт.

SEAL

2шт.

SEAL

2шт.

850677C1

SCREW,Hex Wash Hd, 5/16"-18 x 1/2"

5/16-18 x 1/2 taptite

6шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8 hex

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

2

SEAL, radiator support side, For service order 2-25.2 inch length seal from bulk stock no. 823821C1

2шт.

3

SEAL, radiator support top, bottom and screen, For service order 3-21 inch length seal from bulk stock no. 823821C1

1шт.

4

828225C1

SCREEN

ASSY, radiator

1шт.

5

828229C1

BAR

screen clamp reinforcing

4шт.

6

168481C1

LATCH ASSY.

CLAMP, screen

4шт.

828230C2

SCREW,Hex Washer, #10 - 24 x 1/2"

#10-24 x 1/2 tapite

8шт.

7

828770C1

ANGLE

radiator support top

1шт.

8

SEAL, radiator screen, For service order 2-4 inch length seal from bulk stock no. 823821C1

2шт.
