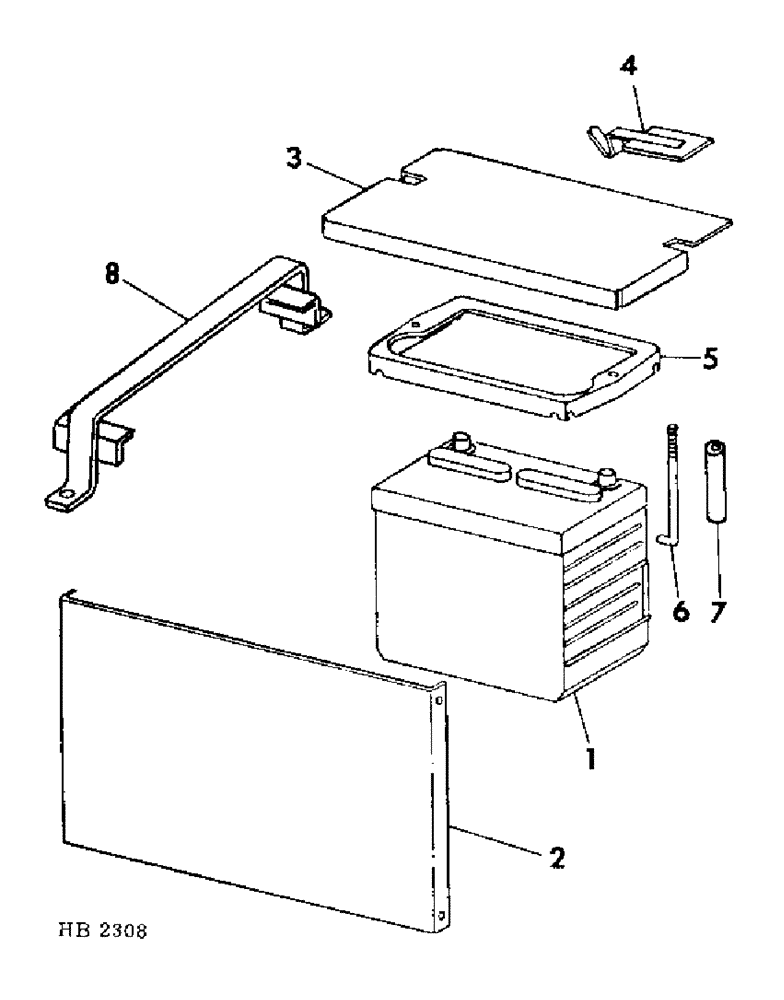

Запчасти Case IH 4000 (08-32) - ELECTRICAL, BATTERY AND MOUNTING (06) - ELECTRICAL

1

829142C1

LATCH

cover hold down

2шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

10-24 x 1/2 phd sltd

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

2

920645R1

CLAMP

batter hold down - gas

1шт.

3

829232C1

ROD

battery hold down - gas

2шт.

3

829219C1

ROD, battery hold down - diesel

2шт.

7500032

BUSHING

NUT, 5/16-18 wing

2шт.

4

27634R1

SPACER,1/4" Pipe x 3"

3 in hold down rod diesel, For use of 5000 Windrower - diesel prior to serial no. 1350, For use on 5500 Windrower - diesel

2шт.

4

522204R1

SPACER,1/4" Pipe x 1 3/8"

1.375 in hold down rod diesel, For use on 5000 Windrower - diesel serial no. 1350 and since

2шт.

5

829143C1

CLAMP

ASSY, 11-1/2 in battery hold down, For use on 5000 Windrower - diesel prior to serial no. 1350, For use on 5500 Windrower - diesel

1шт.

5

832387C1

CLAMP ASSY, 16 in battery hold down, For use on 5000 Windrower - diesel serial no. 1350 and since

1шт.

6

844067C91

BATTERY, 12 volt dry charged Prestolite, Not for U.S. mach - gas, For service order 1-IHCM30H battery

1шт.

6

IHCM30H

DRY BATTERY

12 volt

1шт.

6

ZBDSP24

BATTERY, 12 volt dry charged Prestolite, Not for U.S. mach - gas, For service order 1-IHCM24 battery

1шт.

6

IHCM24

DRY BATTERY

12 volt

1шт.

6

844024C91

BATTERY, 6 volt dry charged Prestolite, Not for U.S. mach - gas, For service order 1-IHPR2E battery

2шт.

6

IHPR2E

BATTERY, 6 volt, For use on 5000 Windrower - diesel prior to serial no. 1350, For use on 5500 Windrower - diesel

2шт.

6

1227X

BATTERY, 6 volt dry charged Prestolite, For U.S. mach - diesel, For service order IHST2E battery

2шт.

6

IHST2E

WET BATTERY

6 volt, For use on 5000 Windrower - diesel prior to serial no. 1350, For use on 5500 Windrower - diesel

2шт.

6

844210C91

BATTERY, 12 volt maintenance free Prestolite, Not for U.S. mach, For service order 1-IHCLM31 battery

1шт.

6

IHCLM31

BATTERY, 12 volt, For use on 5000 Windrower - diesel serial no. 1350 and since

1шт.

6

3153X

BATTERY, 12 volt maintenance free Prestolite, For U.S. mach, For service order 1-IHCFM31

1шт.

6

IHCFM31

BATTERY 12 volt, For use on 5000 Windrower - diesel serial no. 1350 and since

1шт.

7

829146C1

CHANNEL, battery rear cover

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16-18 x 1/2 hex hd flange lock

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 hex flange lock

4шт.

8

829147C1

COVER

battery top

1шт.
