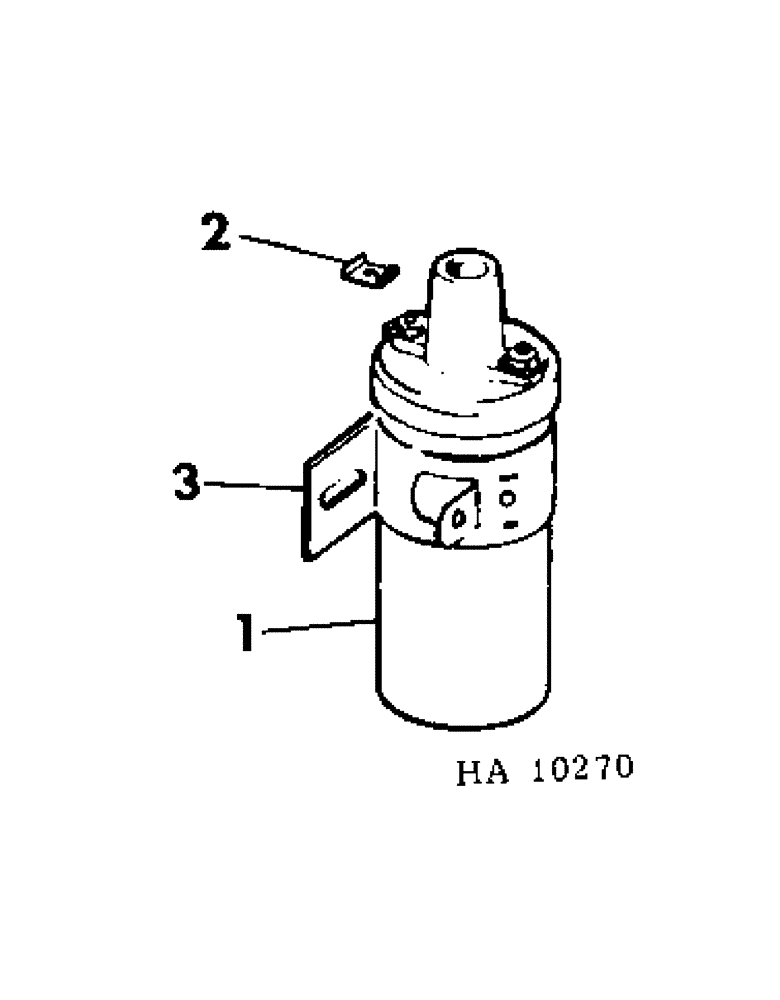

Запчасти Case IH 4000 (08-30) - ELECTRICAL, IGNITION COIL (06) - ELECTRICAL

191455R91

SPOOL

COIL ASSY, ignition, For use on 4000 Windrowers with C-232 engine and breaker type ignition machine serial no. 501 to 999, For use on 5000 - 5500 Windrowers with HB-225 engine, Consists of

1шт.

NSS

NOT SOLD SEPARAT

COIL

1шт.

1909206

PLATE

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

182542H1

BRACKET

1шт.

160080

SCREW

1шт.

827447C91

COIL ASSY.

COIL ASSY, ignition, For use on 4000 Windrowers with C-232 engine and electronic type ignition machine serial no. 1000 to 2700, Consists of

1шт.

NSS

NOT SOLD SEPARAT

COIL

1шт.

182542H1

BRACKET

1шт.

160080

SCREW

1шт.

827496C1

COIL

ASSY, ignition, For use on 4000 Windrowers with C-232 engine and electronic type ignition machine serial no. 2701 and since

1шт.

1

COIL, ignition, For service order coil assy

1шт.

2

1909206

PLATE

terminal

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

3

182542H1

BRACKET

coil mounting, For use w/191455R91, 827447C91 coil assy

1шт.

160080

SCREW, 10-32 x 1-1/2 mtg bracket

1шт.

3

832251C1

BRACKET

coil mounting, For use w/827496C1 coil assy

1шт.

159972

SCREW,Cross Pan Hd, #10 - 24 x 1 3/4"

10-24 x 1-3/4 rec pan-hd

1шт.
