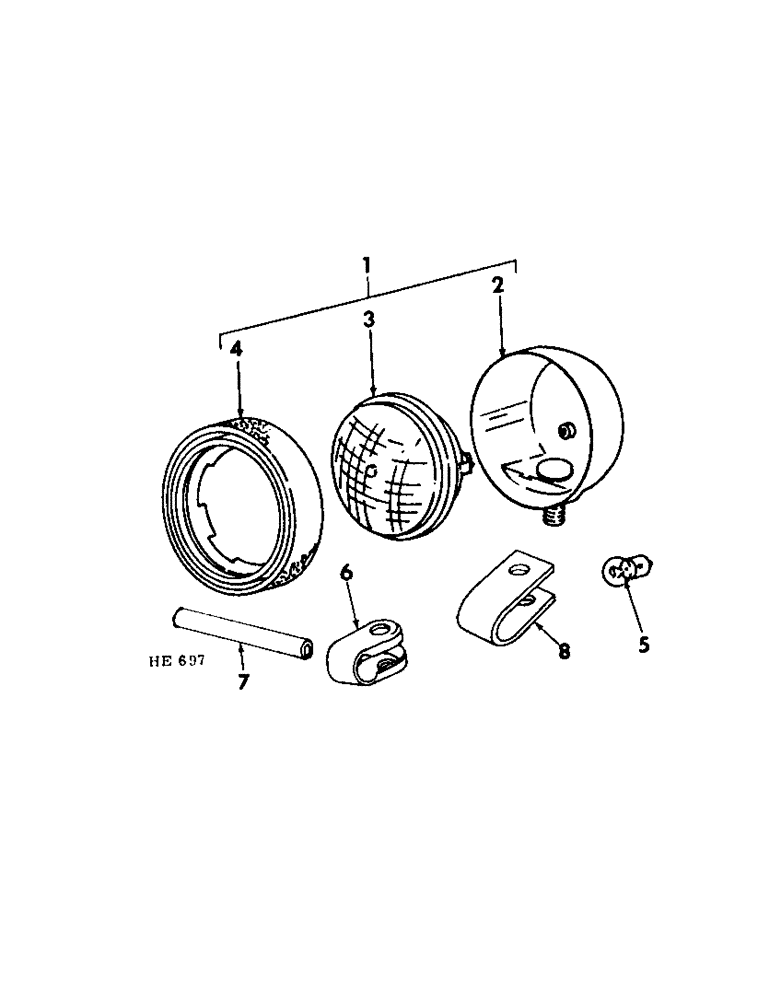

Запчасти Case IH 4000 (08-25) - ELECTRICAL, HEADLIGHT AND REAR LIGHT, ALSO OPERATORS CAB HEADLIGHT (06) - ELECTRICAL

1

599286R91

LAMP

LIGHT ASSY, head 12 volt Hobbs optional w/823029C91 light assy, Consists of

2шт.

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

390756R91

LAMP

1шт.

676078R1

RETAINER

1шт.

1

823029C91

LIGHT

ASSY, head 12 volt Dominion Auto optional w/599286R91 light assy, Consists of

2шт.

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

390756R91

LAMP

1шт.

823031C1

RETAINER

1шт.

1

883140C91

LAMP

LIGHT ASSY, rear, Consists of

1шт.

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

394770R2

LAMP

1шт.

676078R1

RETAINER

1шт.

455490

BULB,C-6, #1003, 12V, .94W

1шт.

2

HOUSING, light, For service order light assy

1шт.

3

390756R91

LAMP

head light

2шт.

3

394770R2

LAMP

rear light

1шт.

4

676078R1

RETAINER

head light - Hobbs

2шт.

4

823031C1

RETAINER

head light - Dominion Auto

2шт.

4

676078R1

RETAINER

rear light

1шт.

5

455490

BULB,C-6, #1003, 12V, .94W

GE 1003 rear light red

1шт.

6

350920R1

CLAMP

rear and cab headlight

1шт.

7

463580R1

SPACER,1/2" Pipe x 4.109"

rear light mounting

1шт.

433163

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1/2-13 x 5 hex hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

.531 x 1.250 x .105

2шт.

8

828763C1

CLAMP

headlight, Not for use w/cab

2шт.
