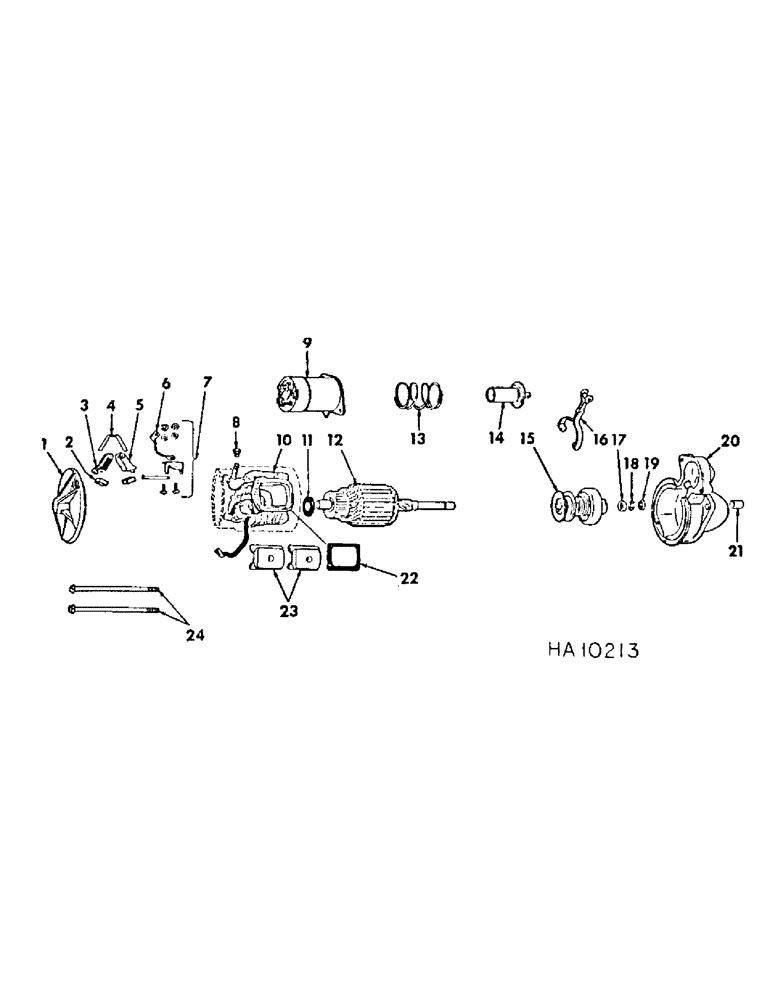

Запчасти Case IH 4000 (08-23) - ELECTRICAL, STARTING MOTOR, DELCO REMY C-232 GAS ENGINE (06) - ELECTRICAL

1108478

MOTOR

ASSY, 12 volt starting 423805C91, Consists of all parts listed

1шт.

1

1928966

FRAME

commutator end

1шт.

2

1906945

COMMUTATOR BRUSH

BRUSH

4шт.

1967747

SCREW

brush attaching

4шт.

3

1926618

HOLDER

insulator

2шт.

4

1926622

VALVE SPRING

SPRING, brush

2шт.

5

1940477

HOLDER

brush ground

2шт.

443527

SCREW, brush attaching ground

4шт.

1966923

PIN

brush holder

2шт.

6

1960864

BRUSH, COMMUTATOR

LEAD, ground

2шт.

NLS

NO LONGER SERVICED

brush holder support att

4шт.

120361

NUT,Hex Mach Screw, #10 - 24

Brush holder support screw #10-24

4шт.

453435

LOCK WASHER

WASHER, brush holder support screw

4шт.

7

1928015

BRACKET

PACKAGE, brush holder support

2шт.

8

1966391

GROMMET

field frame

1шт.

9

65478C1

SWITCH

ASSY, solenoid opt w/1114356 switch

1шт.

9

1114356

SOLENOID,Starter

SWITCH ASSY, solenoid opt w/65478C1 switch

1шт.

132255

SCREW, switch attaching Slotted Fil Hd, 1/4"-20 x 1/2"

2шт.

9427815

SCREW, lead attaching

1шт.

10

1891314

COIL, field

1шт.

11

818265

WASHER

brake leather

1шт.

12

1966228

ARMATURE, motor

1шт.

13

1958679

SPRING

plunger

1шт.

14

1941113

PLUNGER

solenoid

1шт.

455106

PIN

plunger attaching

1шт.

15

1954842

DRIVE

MOTOR, drive

1шт.

16

1951567

LEVER

shift

1шт.

1932197

SCREW

STUD, shift lever

1шт.

9635082

NUT,5/16" - 18, Gr 5

Shift lever stud 5/16"-18, G5

1шт.

9421424

LOCK WASHER

shift lever stud

1шт.

17

1927849

COLLAR

stop

1шт.

18

1927848

RING

RETAINER

1шт.

19

1927850

COLLAR ASSY.

COLLAR, thrust

1шт.

20

1851758

HOUSING

drive end, Includes 1-1923907 bushing

1шт.

809593

PIN

drive end dowel

1шт.

21

1923907

BUSHING

drive end housing

1шт.

22

1927853

FOAM INSULATION

INSULATOR, field coil

4шт.

23

1931129

SHOE

pole

4шт.

1968396

SCREW

shoe

4шт.

24

A41342

BOLT

BOLT, cranking motor through

2шт.
