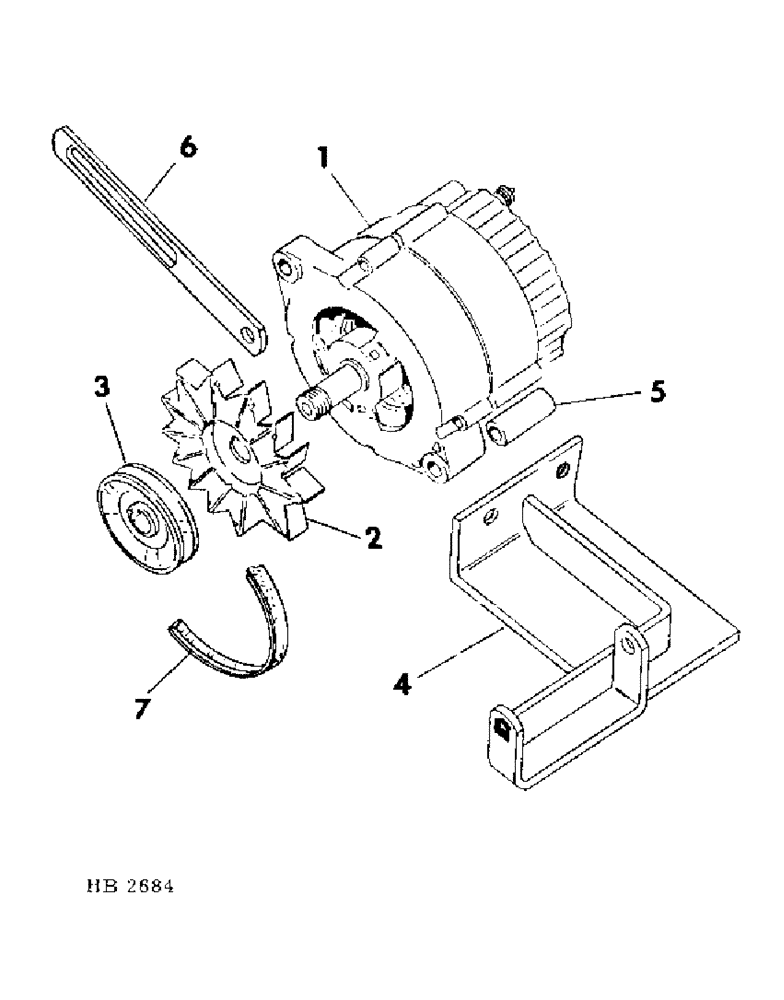

Запчасти Case IH 4000 (08-17) - ELECTRICAL, ALTERNATOR AND MOUNTING C-232 GAS ENGINE, FOR 4000 WINDOWERS SN. 2701 & SINCE (06) - ELECTRICAL

1

1102921

ALTERNATOR

ALTERNATOR ASSY, AC 12 volt 61 amp 130968C91, For service order 1-102936 alternator assy, For service parts, Serial Range: refer-alternator

1шт.

1

1102936

GENERATOR

ALTERNATOR ASSY, AC 12 volt 61 amp 500163C91, For service order 1-1103174 alternator assy, For service parts, Serial Range: refer-alternator

1шт.

1

1103174

GENERATOR

ALTERNATOR ASSY, AC 12 volt 61 amp 571231C91, For service parts refer to alternator assy

1шт.

1

87297246

REMAN-ALTERNATOR

Reman For New P/N 1103174

1шт.

1

87297247

CORE-ALTERNATOR

Return Part Number

1шт.

1

103799A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 63 AMP Alternator

1шт.

1

103799A1C

CORE-ALTERNATOR

Return Part Number, 12 VOLT, 63 AMP Alternator

1шт.

1

103801A1R

REMAN-ALTERNATOR

Reman For New P/N 1103174

1шт.

1

103801A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

103802A1R

REMAN-ALTERNATOR

Reman For New P/N 1103174

1шт.

1

103802A1C

CORE-ALTERNATOR

Return Part Number

1шт.

571690C1

NUT, M6 x 1 hex

1шт.

225-14112

NUT,#12-24

#12-24 hex

1шт.

121744

ANGLE

Washer, Lock, #12

1шт.

2

800612

FAN

FAN, alternator pulley

1шт.

3

1946716

PULLEY

PULLEY, alternator 378349R1

1шт.

4

823176C1

SUPPORT

SUPPORT ASSY, alternator, For service order 1-832323C1 support assy and 1-27350R1 bolt

1шт.

189295

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

BOLT, 3/8-16 x 4-1/2 hex-hd

1шт.

4

832323C1

SUPPORT

SUPPORT ASSY, alternator

1шт.

27350R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 4 1/2", Gr 5

BOLT, 3/8-16 x 4-1/2 crg

1шт.

120377

NUT,3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

WASHER, .406 x 1.000 x .056 (Or as required)

2шт.

5

K11064

SPACER,3/8" Pipe x 1 1/4"

SPACER, alternator support

1шт.

6

831674C1

BAR

BAR, alternator adjusting brace

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

BOLT, 5/16-18 x 1 hex-hd, Not for use with 1103174

2шт.

931405R1

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT, M8 x 30 MM hex-hd, For use with 1103174

1шт.

120376

NUT,5/16"-18, G5

NUT, 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

20893R1

WASHER

WASHER, .344 x 1.000 x .105

1шт.

22859R1

WASHER

WASHER, .344 x .750 x .164

1шт.

7

403348R1

V-BELT,0.50" W x 46.00" L

Fan

1шт.
